Product Details:
|
| Product Name: | Fiber Media Converter | Standard: | IEEE802.3 10Base-T |
|---|---|---|---|
| Access Mode: | 10/100Mbps | Distance: | CAT5 : 100m |
| Consumption: | 3W | Mac: | 1K |
| High Light: | CAT5 100m Fiber Media Converter,DC5V Fiber Media Converter,CAT5 100m fast ethernet to gigabit ethernet converter |
||

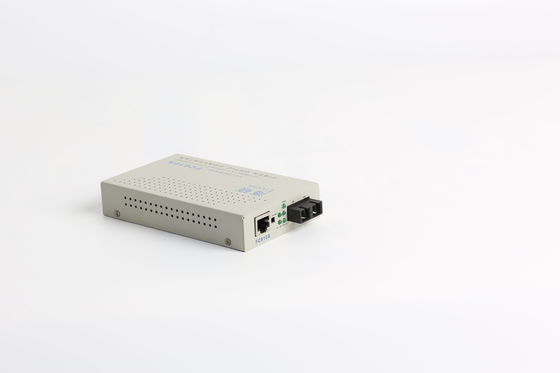

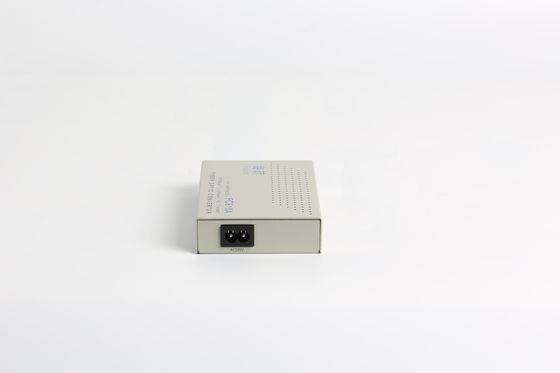

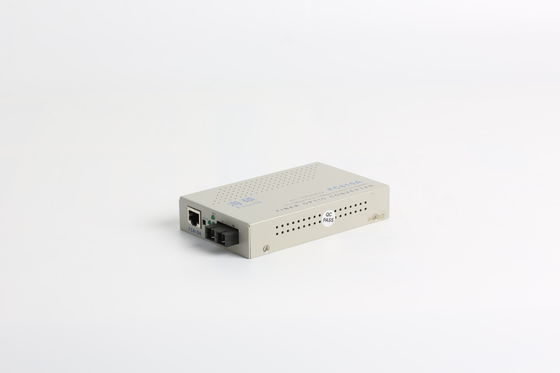

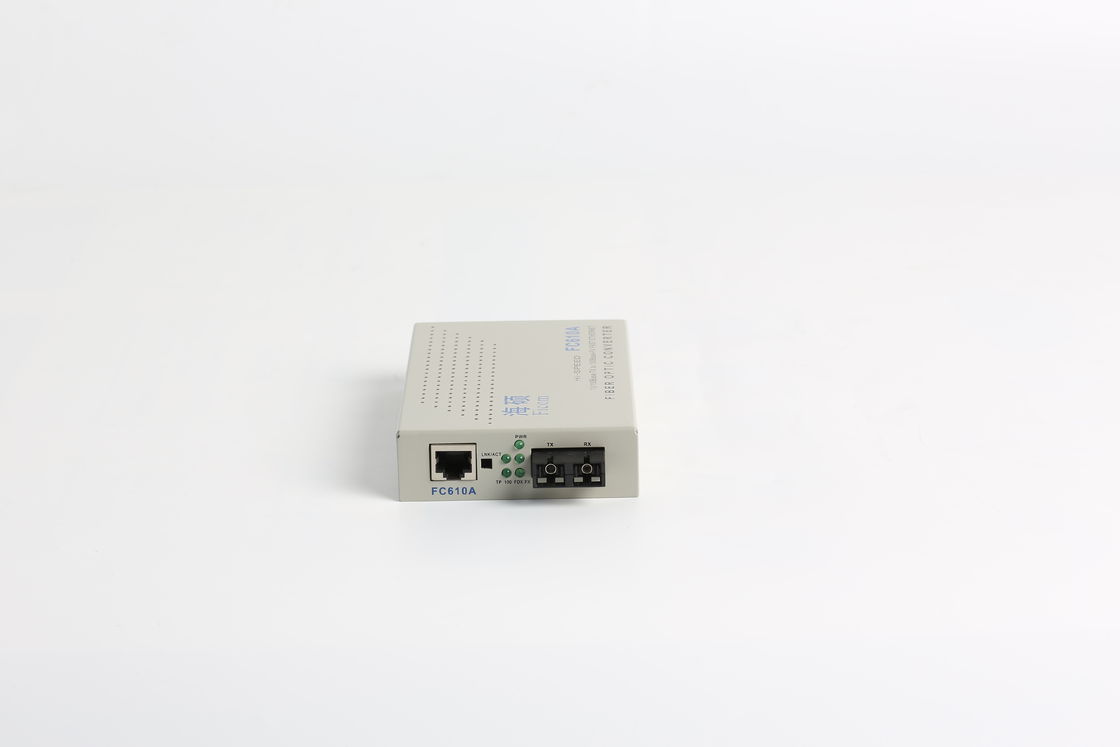

10 / 100M Adaptive Fast Ethernet Fiber Media Converter 1 Fe + 1 Fx
Overview
HiOSO FC610A is a kind of 10/100Mbps adaptive fast Ethernet fiber media converter (also called optical-to-electric medium converter), which can implement mutual conversion between 10Base-T/100Base-TX twisted pair electrical signal and 100Base-FX optical signal. This type of fiber converter can extend the transmission distance of a network from 100m over copper wires to 120Km (single-mode full duplex). FC610A supports two different types of network connection medium: 10/100Base-TX and 100Base-FX, with the application of the switching technology and the storing & forwarding technology. It supports transmission in dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fibers.
Technical Specofocation
| Parameters | Specifications |
| Access mode | 10/100Mbps |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance |
Dual-fiber multi-mode: 2Km; Dual-fiber single-mode: 25/40/60/80/100/120Km, Single-fiber single-mode: 25/40/60/80/100Km |
| Port | One RJ45 port: Connected to STP/UTP category-5 twisted pairs One fiber port: Multi-mode – SC or ST (fiber size: 50,62.5/125μm) Single mode – SC/FC fiber port (fiber size: 9/125μm) Single-fiber single-mode – SC/FC fiber port (fiber size: 9/125μm) |
| Conversion mode | Medium conversion, storing and forwarding |
| MAC address table | I K |
| Buffer space | 1Mbit |
| Flow control | Full duplex state: flow control; half-duplex state: back pressure mode |
| Delay | 9.6μs |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| LED | POWER (power), FX LINK/ACT (fiber link/action) FDX (FX full-duplex mode), TX LINK/ACT (twisted pair link/action) TX 100 (twisted pair, transmission rate: 100M) |
| Power | DC5V 1A (external), AC220 0.5A/DC-48 (built-in) |
| Dimensions | 24mm(H)*59mm(W)*98mm(D) / (height * width * depth) (external power) 26mm(H)*85mm(W)*135mm(D) / (height * width * depth) (built-in power) 110mm(H)*22mm(W)*81mm(D) /height * width * depth (module card) |
