Product Details:
|
| Product Name: | Fiber Media Converter | Standard: | IEEE802.3 10Base-T |
|---|---|---|---|
| Access Mode: | 10/100Mbps | Distance: | CAT5 : 100m |
| Consumption: | <2W | Mac: | 1K |
| High Light: | 850nm optical to ethernet converter,HiOSO optical to ethernet converter,HiOSO optical media converter |
||

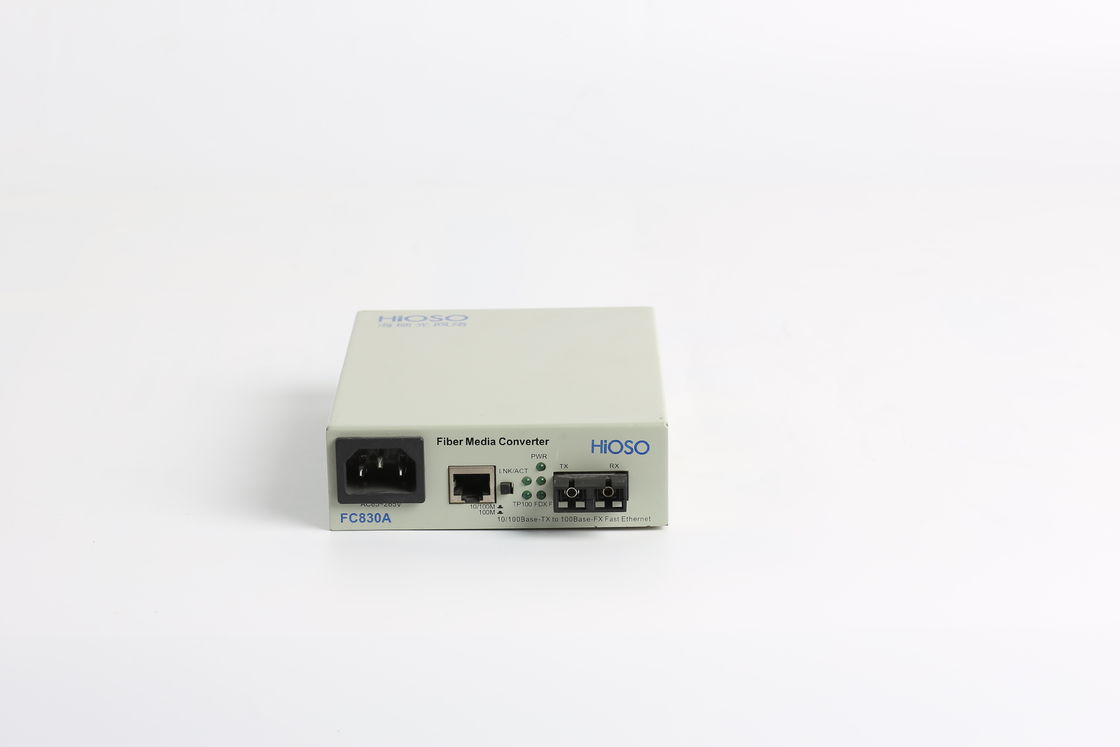

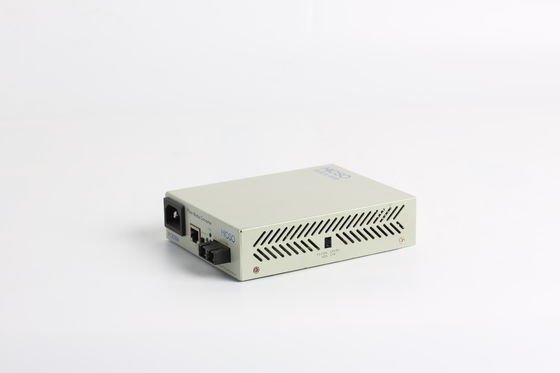

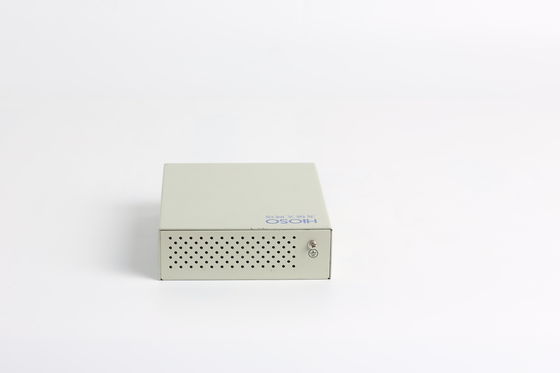

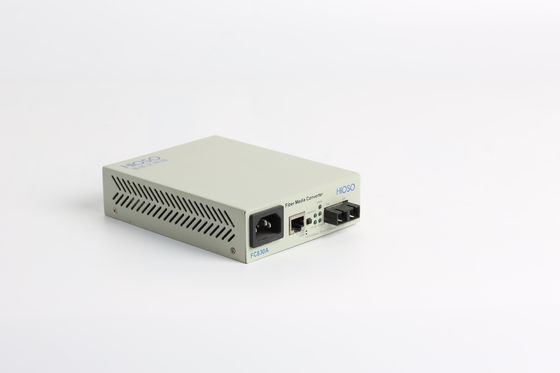

An Intelligent 10 / 100M Adaptive Fast Ethernet Fiber Media Converter
Charater
Technical Specification
| Parameters | Specifications |
| Access mode | 10/100Mbps |
| Wavelength | 850nm/1310nm/1550nm |
| Port | One RJ45 port: Connected to STP/UTP category-5 twisted pairs One fiber port: Multi-mode – SC or ST (fiber size: 50,62.5/125μm) Single mode – SC/FC fiber port (fiber size: 9/125μm) Single-fiber single-mode – SC/FC fiber port (fiber size: 9/125 μ m) |
| Conversion mode | Medium conversion, storing and forwarding/straight-through |
| MAC address table | I K |
| Buffer space | 1Mbit |
| Flow control | Full duplex state: flow control; half-duplex state: back pressure mode |
| Delay | Storing & forwarding: 9.6 μ s; straight-through: 0.9 μ s; |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| LED | POWER (power), FX LINK/ACT (fiber link/action) FDX (FX full-duplex mode), TP LINK/ACT (twisted pair link/action) TP 100 (twisted pair: transmission rate of 100M); FX 100 (fiber: transmission rate of 100M) (external power) |
| Power | DC5V 1A (external), AC220 0.5A/DC-48 (built-in) |
| Power consumption | <2W |
