Product Details:
|
| Product Name: | Fiber Media Converter | Access Mode: | 10/100Mbps |
|---|---|---|---|
| Standard: | IEEE802.3 10Base-T | Distance: | CAT5 : 100m |
| Delay: | 9.6us | Mac: | 1K |
| High Light: | CAT5 100m fiber to lan converter,1310nm fiber to lan converter,1310nm fiber optic converter |
||

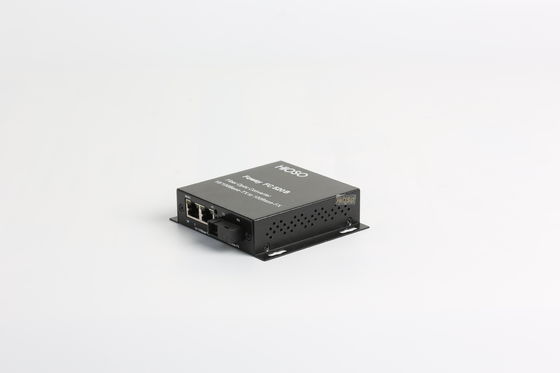

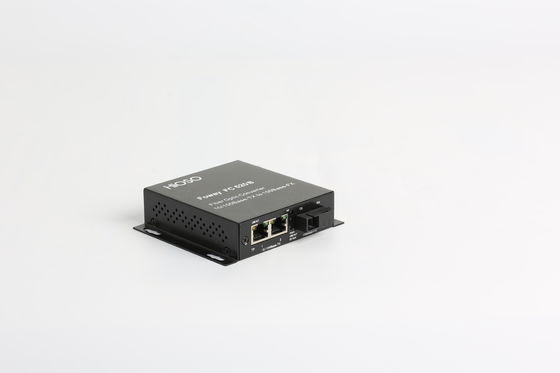

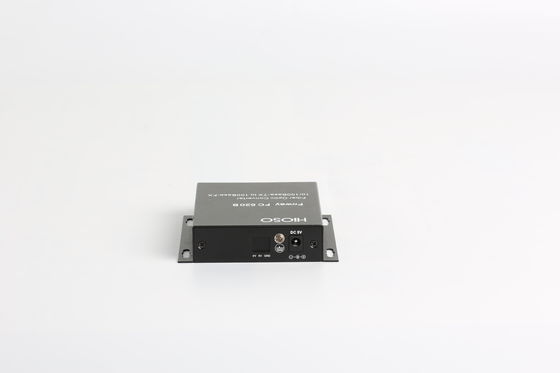

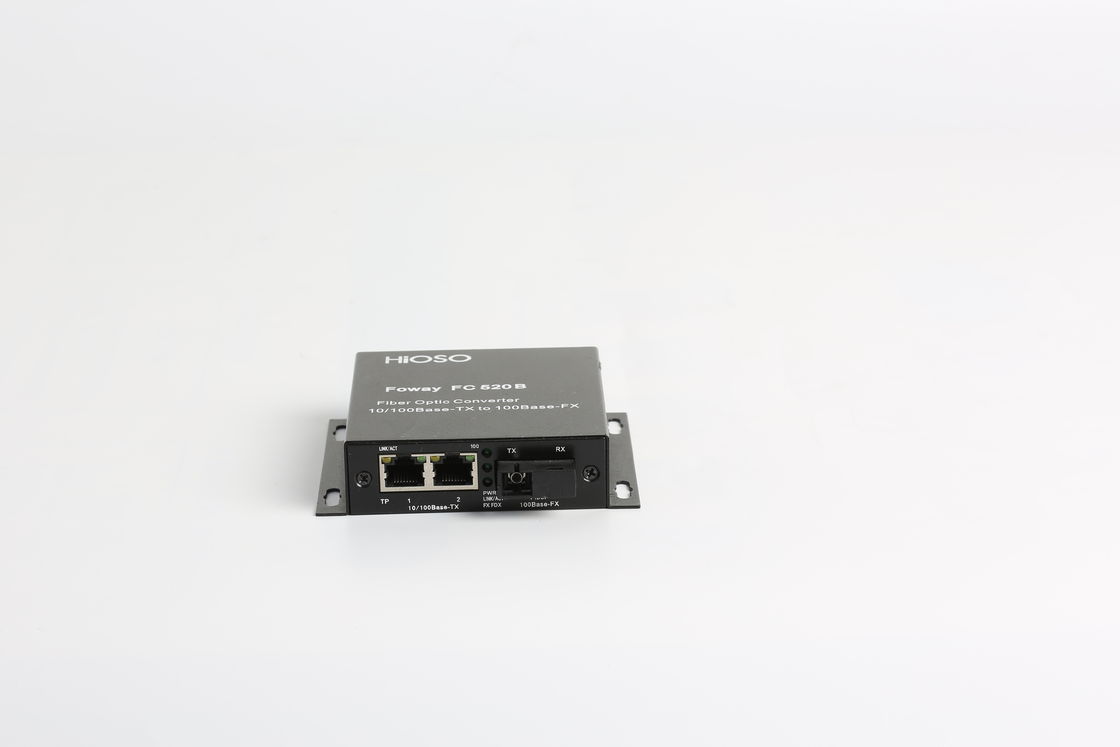

2 Port Fiber Media Converter Specially Designed For Network HD IP Camera
Overview
FC520B is 100M HD Fiber Media Converter, which is specially designed for Network HD IP camera and Network access control system. It supports long-distance stable HD Network video signals transmission through fiber cables. FC520B can work with FTC-17 Media Converter rack in the central machine room.
FC520B provides HD Network port, which can connect with HD IP camera or Network access control system.
Charater
| Parameter | Specifications |
| Access mode | 10/100Mbps |
| Standard | IEEE802.3 10Base-T Ethernet,IEEE802.3u, 100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control, IEEE802.1q VLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| Wavelength | 850nm/1310nm/1490nm/1550nm |
| Transmission distance | Dual-fiber multi-mode: 2Km; Dual-fiber single-mode: 25/40/60/80/100/120Km; Single-fiber single-mode: 25/40/60/80/100/120Km Category-5 twisted pair: 100m |
| Port | 2 RJ45 port, connected to STP/UTP category-5 twisted pair 1 fiber port: Multi-mode - SC (fiber size: 50,62.5/125μm) Single mode - SC fiber port (fiber size: 9/125μm) Single-fiber single-mode - SC fiber port (fiber size: 9/125μm) |
| Conversion mode | Medium conversion, storing and forwarding mode |
| MAC address table | 2 K |
| Buffer space | 1Mbit |
| Flow control | Full duplex state: flow control; half duplex state: back pressure mode |
| Delay | 9.6us |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| LED | POWER (power), FX LINK/ACT (fiber connection/action) FDX (FX full duplex mode), TP1/2 LINK/ACT (twisted pairs connection/action) TP1/2 100 (twisted pairs, with a transmission rate of 100M) |
| Power | DC12V/500MA Dual redundant power backup |
| Power consumption | <2W |
| Operating temperature | Normal: -10~60℃, Wide temperature: -40~75℃ |
| Operating humidity | 5%~90% |
| Storage temperature | -40~80℃ |
| Storage humidity | 5%~90% (non-condensing) |
| Dimensions | 26mm(Height)*107mm(Width)*93mm(Depth) (external power) |
