Product Details:
|
| Product Name: | Fiber Media Converter | Wavelength: | 850nm/1310nm/1550nm |
|---|---|---|---|
| Standard: | IEEE802.3 10Base-T | Power: | DC48V |
| Buffer Space: | 1Mbit | Mac Address: | 1K |
| High Light: | 1 1000m Rj45 Fiber Media Converter,1000m FX Port Fiber Media Converter,1 1000m Rj45 poe media converter |
||

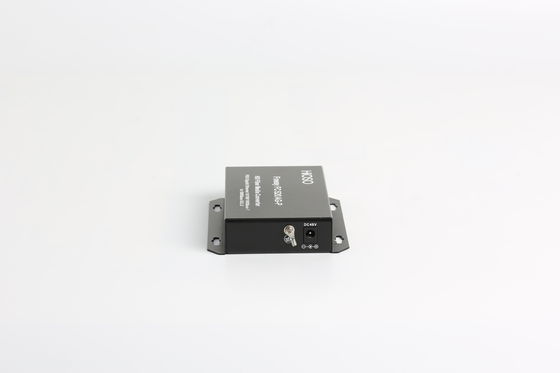

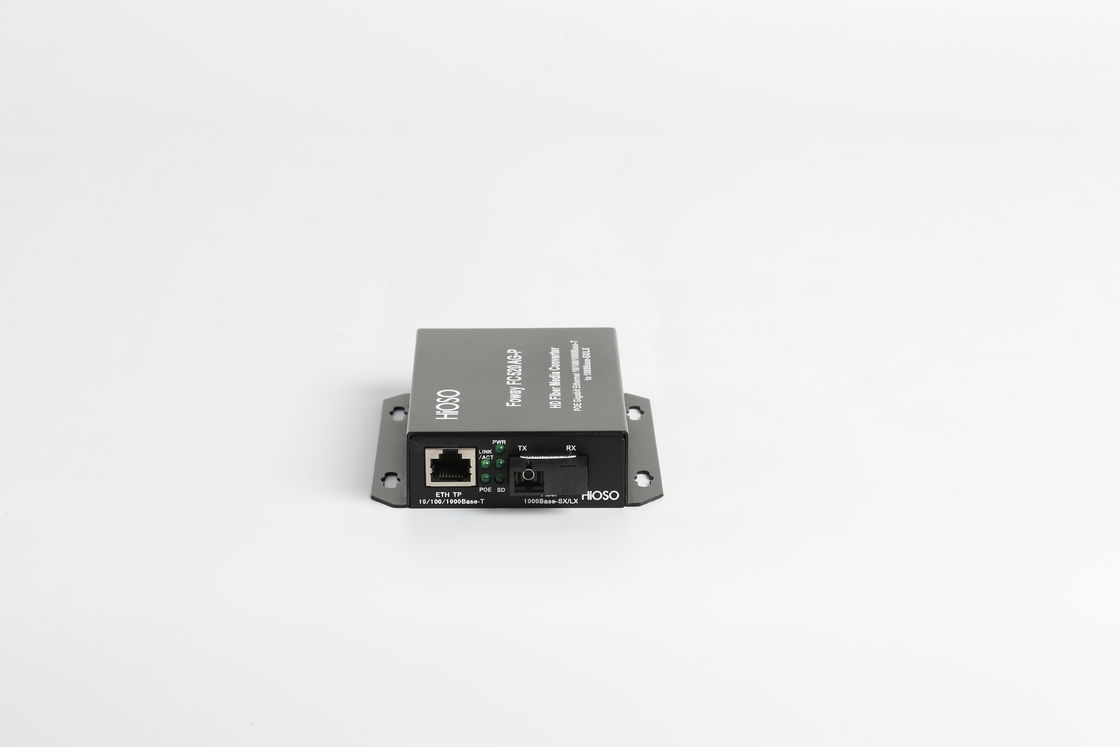

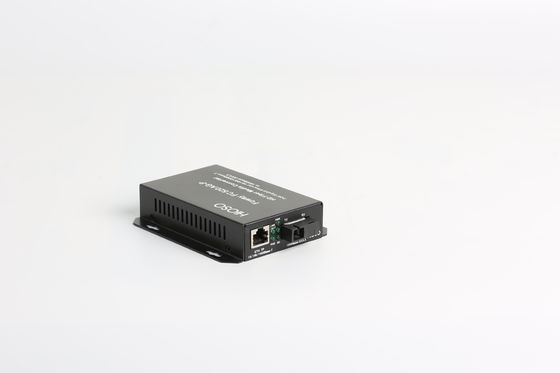

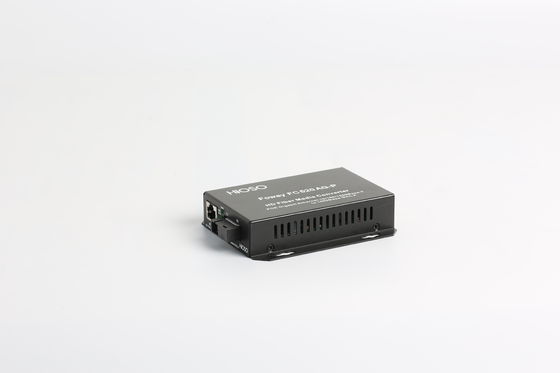

Gigabit Fiber Media Converter 1 1000m Rj45 + 1 1000m FX Port
Charater
| Parameter | Specifications |
| Access mode | 10/100/1000Mbps |
| Standard | IEEE802.3 10Base-T Ethernet,IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| POE | POE port: 1 port Standard: IEEE802.3af 15.4W, IEEE802.3at 30W Working mode: auto discover and power/dis-power receiving power device |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance | Dual-fiber multi-mode: 220m/550m Dual-fiber single-mode: 10//20/40/60/80/100/120Km; Single-fiber single-mode: 10/20/40/60/80/100Km Category-5 twisted pair: 100m |
| Port | 1 RJ45 port, connected to STP/UTP category-5 twisted pair 1 fiber port: Multi-mode - SC (fiber size: 50,62.5/125μm) Single mode - SC fiber port (fiber size: 9/125μm) Single-fiber single-mode - SC fiber port (fiber size: 9/125μm) |
| Conversion mode | Medium conversion, storing and forwarding mode |
| MAC address table | 1K |
| Buffer space | 1Mbit |
| Flow control | Full duplex state: flow control; half duplex state: back pressure mode |
| Delay | <10us |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| LED | PWR (power), FX LINK/ACT (fiber connection/action) FX SD (fiber receiving signal detection), TP LINK/ACT (twisted pairs connection/action) POE (POE running) |
| Power | DC48V (external), POE power supply 15.4W/30W |
| Power consumption | 3W, Max POE power supplying 30W |
| Operating temperature | -10~55℃ |
| Operating humidity | 5%~90% |
| Storage temperature | -40~70℃ |
| Storage humidity | 5%~90% (non-condensing) |
| Dimension | 26mm(H) * 96mm(W) * 113mm(D) |
