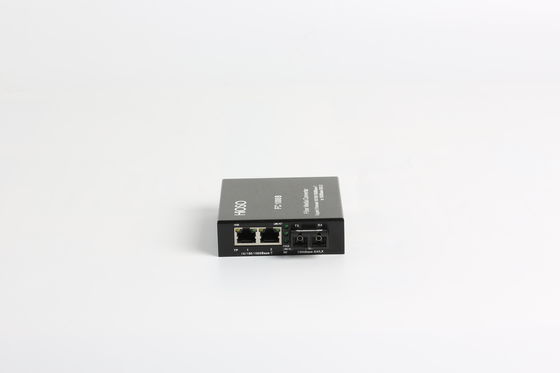

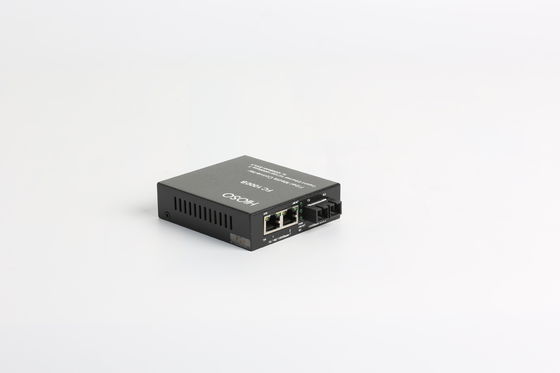

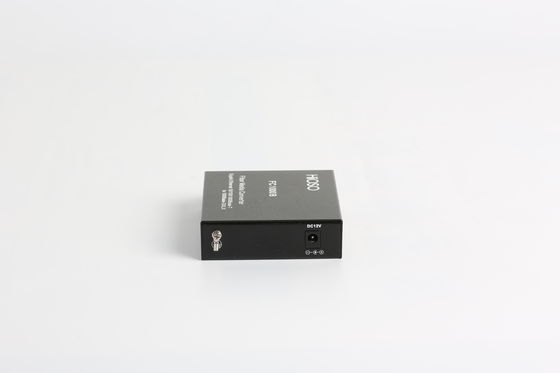

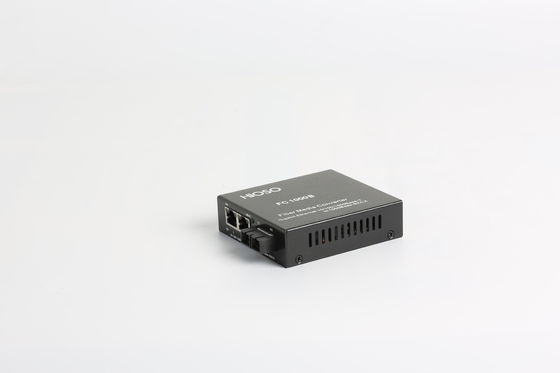

2 1000m Rj45 Ports 1 1000m Fx Port Gigabit Media Converter Black

2 1000m Rj45 Ports 1 1000m Fx Port Gigabit Media Converter Black
2 1000m Rj45 Ports 1 1000m Fx Port Gigabit Media Converter Black 2 1000m Rj45 Ports 1 1000m Fx Port Gigabit Media Converter Black 2 1000m Rj45 Ports 1 1000m Fx Port Gigabit Media Converter Black 2 1000m Rj45 Ports 1 1000m Fx Port Gigabit Media Converter Black

Large Image :  2 1000m Rj45 Ports 1 1000m Fx Port Gigabit Media Converter Black

Product Details:
Place of Origin: China, Guang dong
Brand Name: Hioso
Certification: CE, RoHS, CCC
Model Number: FC1000B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 28X15X12 cm
Delivery Time: 4-7 work days
Payment Terms: T/T
Supply Ability: 6000pcs/month

2 1000m Rj45 Ports 1 1000m Fx Port Gigabit Media Converter Black

Description
Name: Fiber Converter MTBF: 100,000 Hours
Delay: <1us Power: AC220/DC 12V
Storage: -40~80℃ Working: -10~55℃
High Light:

2 1000m Rj45 Ports gigabit media converter

,

1000m Fx Port gigabit media converter

,

1000m Rj45 Ports media converter single mode

Gigabit Fiber Media Converter 2 1000m Rj45 Ports + 1 1000m Fx Port



Charater

  • Support conversion between 10Base-T, 100base TX or 1000BASE-T adaptive and 1000base SX / LX
  • Support full duplex and half duplex transmission mode, automatic negotiation; support twisted pair interface automatic crossing, convenient for system debugging and installation
  • Support VLAN ultra long packet transmission, support QoS, ensure VoIP packet transmission; support STP spanning tree, constitute redundant network
  • Supports multiple fiber port options of dual fiber multi-mode, dual fiber single-mode and single fiber single-mode, and expands the needs of users



Technical Specification

Parameters Specifications
Access mode 10/100/1000Mbps Gigabit Ethernet
Wavelength 850nm/1310nm/1490nm/1550nm
Port 2 RJ45 port: Connected to STP/UTP category-5 twisted pairs
1 fiber port: Dual-fiber multi-mode – SC (fiber size: 50,62.5/125μm)
Dual-fiber single-mode – SC/FC fiber port (fiber size: 9/125μm)
Single-fiber single-mode – SC/FC fiber port (fiber size: 9/125μm)
Conversion mode Medium conversion, storing and forwarding mode
MAC address table I K
Buffer space 1 Mbit
Delay <1μs
Bit error rate <1/1000000000
MTBF 100,000 hours
Power AC220/DC 12V
Power consumption 3W
Operating temperature -10~55°C









2 1000m Rj45 Ports 1 1000m Fx Port Gigabit Media Converter Black 0

2 1000m Rj45 Ports 1 1000m Fx Port Gigabit Media Converter Black 1





FAQ

Q: Can you offer technical support after purchase?

A: Our technical department will be 24h stand by to solve your concerns


Q: Do you accept small quantity order?
A: Yes, we do accept a sample order so customers can test the quality.

Q: What is your lead time for regular items?
A: Normal items, we will have stock to delivery ASAP, for OEM / ODM, PLS feel free to disuse them with our team.
