Product Details:
|
| Product Name: | Common Fiber Converter | Power: | AC220V / DC-48V |
|---|---|---|---|
| Operating: | -10~55°C | Storage: | -40~70°C |
| Consumption: | 5 W | Color: | Grey |
| High Light: | DC48V Fiber Media Converter,CCC certification Fiber Media Converter,DC48V single mode fiber to ethernet converter |
||
Fiber Media Converter 1 1000m Rj45 Port + 1 1000m Fiber Port
Overview

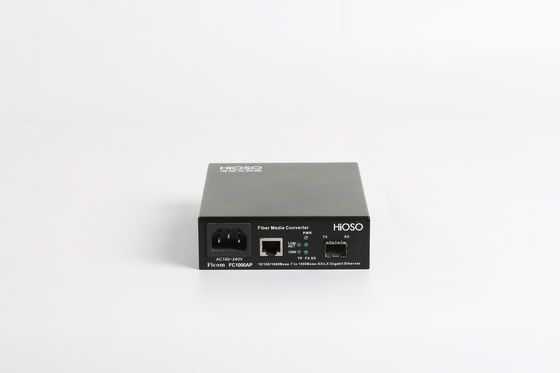

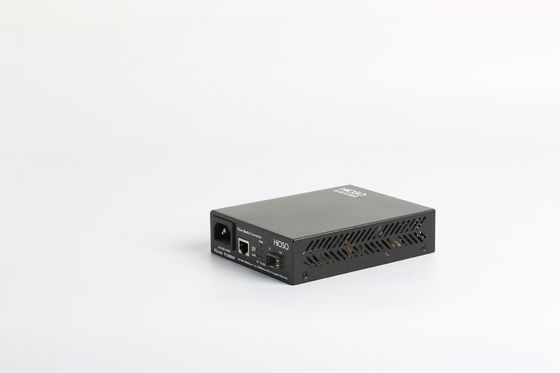

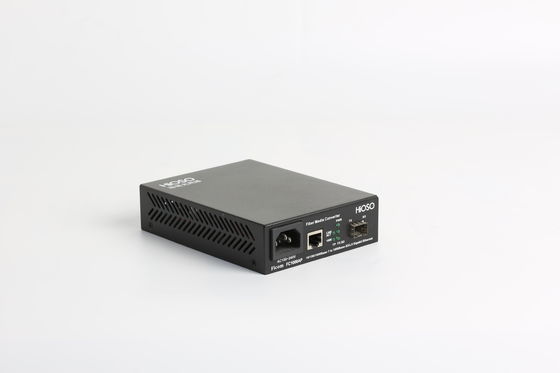

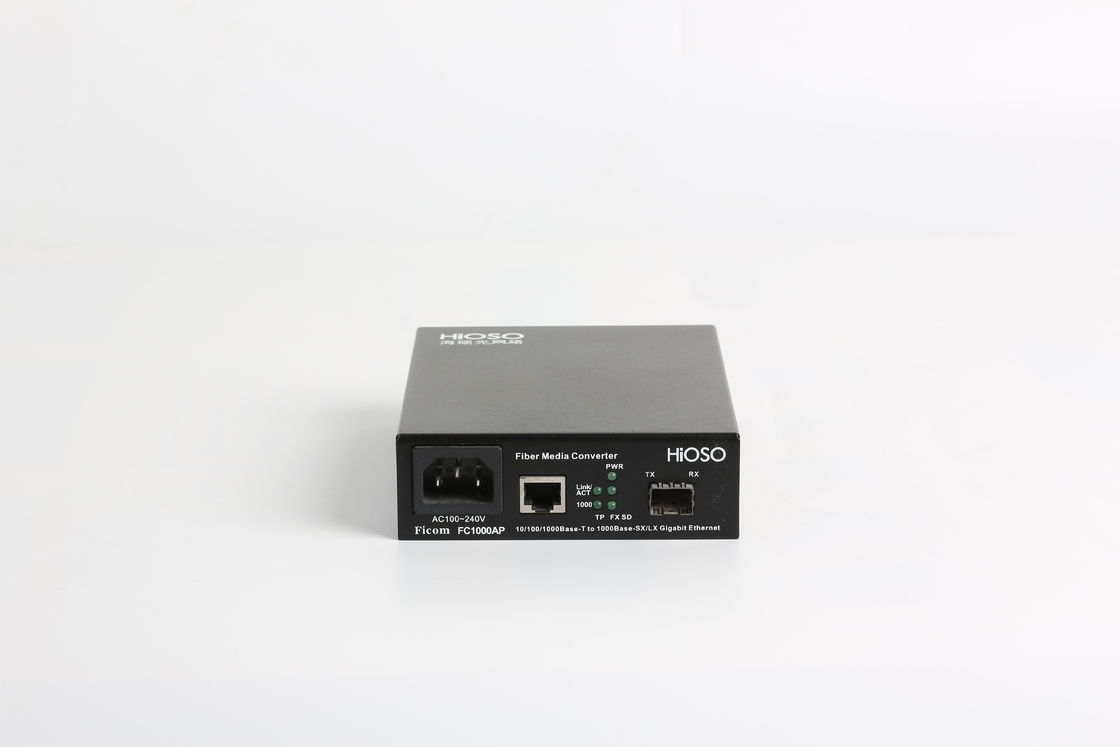

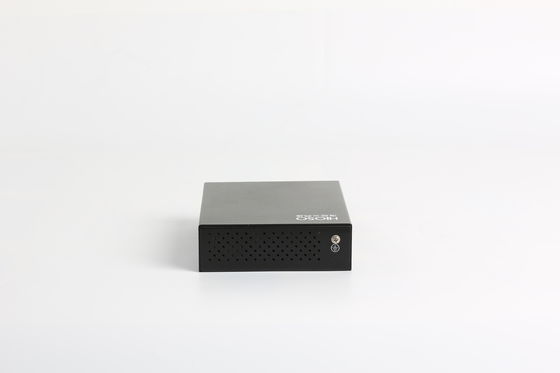

HiOSO FC1000AP 10/100/1000Mbps adaptive Gigabit Ethernet Fiber Media Converter uses the switching technology to conduct media conversion, which meets the standards of IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab. FC1000A supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T and 1000Base-SX/LX.
FC1000AP can conduct mutual conversion between 10Base-T/100Base-TX/1000Base-T twisted pair electrical signal and 1000Base-SX/LX optical signals. It extends the transmission distance of a network from 100m over copper wires to 120Km. This fiber converter supports transmission in dual-fiber multi-mode,dual-fiber single-mode and single-fiber single-mode fibers.
| Parameters | Specifications |
| Access mode | 10/100/1000Mbps Gigabit Ethernet |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1qVLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance | Dual-fiber multi-mode: 220m (fiber size: 62.5/125μm)/550m (fiber size: 50/125μm) Dual-fiber single-mode: 10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80Km Category-5 twisted pairs: 100m |
| Port | One RJ45 port: Connected to STP/UTP category-5 twisted pairs One fiber port: Dual-fiber multi-mode – SC (fiber size: 50,62.5/125μm) Dual-fiber single-mode – SC fiber port (fiber size: 9/125μm) Single-fiber single-mode – SC fiber port (fiber size: 9/125μm) |
| Conversion mode | Medium conversion |
| Delay | <10μs |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| LED | POWER (power), FX LINK (fiber link action), TP LINK1000 (twisted pair connection 1000M), TP LINK100 (twisted pair connection 100M), TP ACT (twisted pair packet forwarding action) |
| Power | AC220V 0.5A/DC-48V (built-in) |
| Power consumption | 5W |
| Operating temperature | -10~55°C |
| Operating humidity | 5%~90% |
| Storage temperature | -40~70°C |
| Storage humidity | 5%~90% (non-condensing) |
| Dimensions | 26mm(H)*71mm(W)*95mm(D) (height * width * depth) (external power) 38mm(H)*118mm(W)*152mm(D) (height * width * depth) (built-in power) 110mm(H)*22mm(W)*81mm(D) (height * width * depth) (module card) |
