Product Details:
|
Product Name: | 16 Ports Fiber Converter | Wavelength: | 850nm/1310nm/1550nm |
---|---|---|---|
Distance: | CAT5 : 100m | Access Mode: | 10/100Mbps |
Buffer Space: | 14M | Delay: | <9.6us |
High Light: | 1000M Fx Portoptical fiber to rj45 converter,1000M Fx Port optical fiber to rj45 converter,16 10/100M Rj45 gigabit ethernet converter |

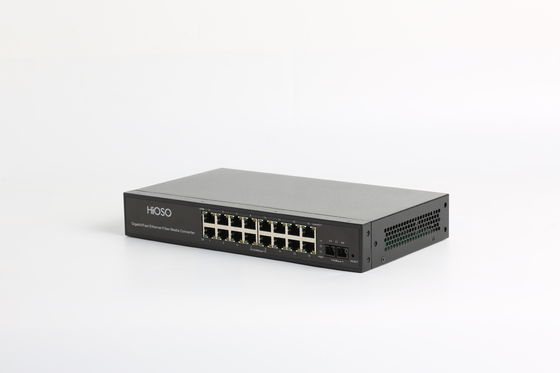

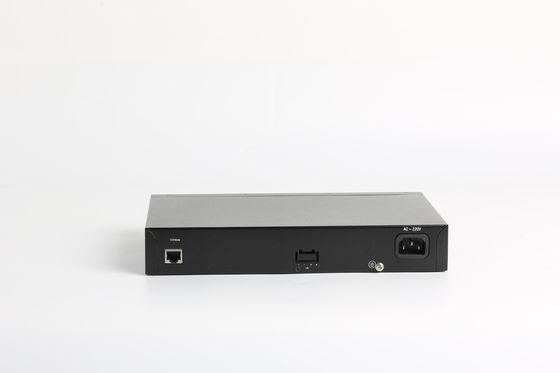

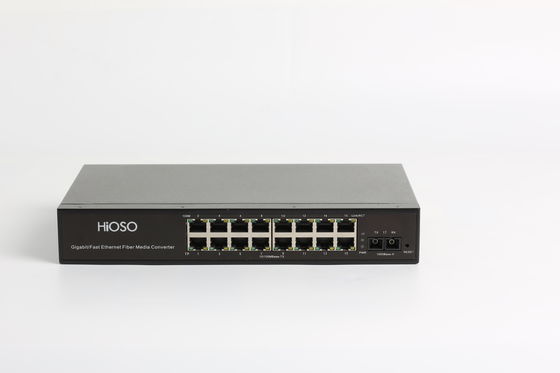

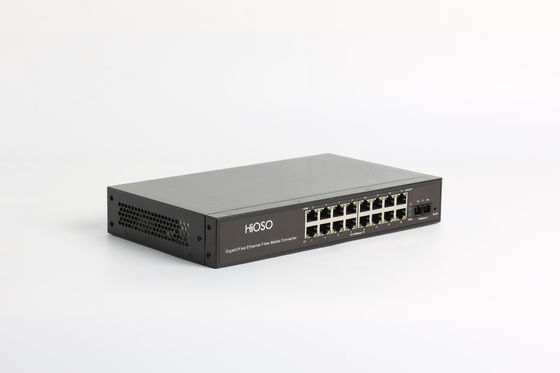

16 Ports Fiber Media Converter 16 10 / 100M Rj45 + 1 1000M Fx Port
Overview
FC716P is an optical 16 electrical Ethernet optical fiber transceiver (also known as photoelectric medium converter), which provides 16 10 / 100M self-adaptive 100m electrical ports and 1 gigabit optical port. It meets the standards of IEEE802.3, ieee802.3u and ieee802.3z. Two types of media network connections are supported: 10baset, 100base TX and 1000base SX / LX. It can convert 10Base-T, 100base TX twisted pair electrical signal to 1000base SX / LX optical signal. The maximum transmission distance is 120km, supporting dual fiber multimode, dual fiber single mode and single fiber single mode fiber transmission.
Technical Specification
Parameter | Specifications |
Access mode | 10/100Mbps |
Wavelength | 850nm/1310nm/1550nm |
Transmission distance |
Dual-fiber single-mode: 10/20/40/60/80/100/120Km cat5:100m |
Port |
16 RJ45 ports: 10/100M 1 FX port: 1000M Single mode - SC/FC fiber port (fiber size: 9/125μm) |
Conversion mode | Medium conversion, storing and forwarding mode |
MAC address table | I6K |
Buffer space | 4M |
Flow control | Full duplex state: flow control; half duplex state: back pressure mode |
Delay | 9.6us |
Bit error rate | <1/1000000000 |
MTBF | 100,000 hours |
LED |
POWER (power), LINK/ACT 1-16 LINK/ACT 17 (fiber connection/action) |
Power | DC5V/1A (external) |
Power consumption | 6W |
Dimensions | 44mm(Height)*276mm(Width)*160mm(Depth) (external power) |
