Product Details:
|
| Name: | Rail Type Media | Distance: | CAT5:100m |
|---|---|---|---|
| Protection Grade: | IP30 | Power Consumption: | 2W(Max) |
| Power Supply: | Provide 2 RPS | Wavelength: | 850nm/1310nm/1550nm |

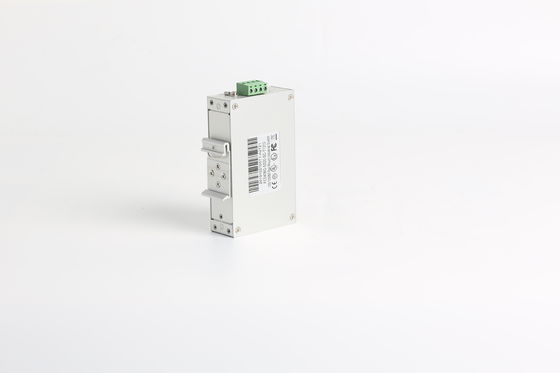

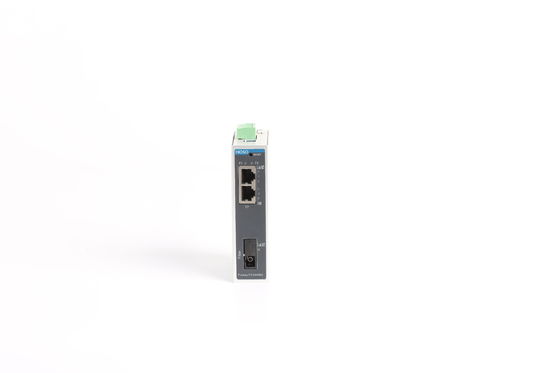

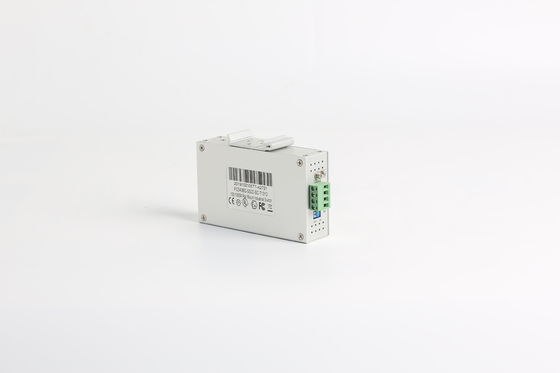

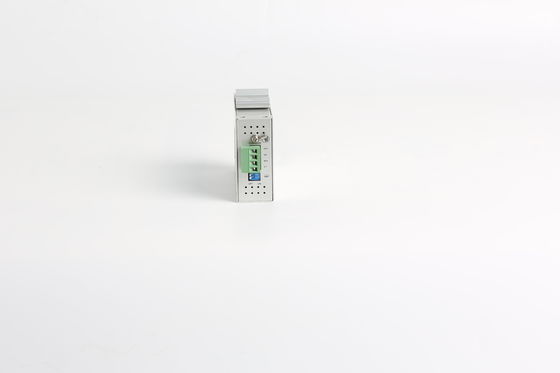

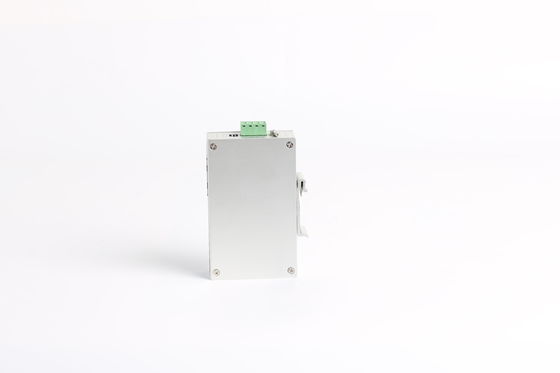

2 Ports Gigabit Fiber Media Converter 2 1000M Ports Rail Type Media
Overview
Foway FC540BG series is a 2 ports Ethernet media converter , which can implement mutual conversion between10Base-T/100Base-TX/1000Base-T twisted pair electrical signal and 1000Base-SX/LX optical signal. Foway FC540BG series media converter provide 2 RPS (Redundant power supply) input : 9.6 ~ 60 VDC and 18 ~ 30VAC , it can be connected to a DC or AC power supply. Besides, Foway FC540BG series can work under the -40 ~ 75°C , With IP30 environmental protection grade, suitable for any industry . Foway FC540BG series with the DIP switch , can enable or disable broadcast storm protection, for different industrial applications provide another flexible solution
| Parameters | Specifications |
| Access mode | 10/100/1000Mbps |
| Transmission distance | Dual-fiber multi-mode: 2Km; dual-fiber single-mode: 25/40/60/80/100/120Km;single-fiber single-mode: 25/40/60/80/100Km Category-5 twisted pairs: 100m |
| Port | Two RJ45 port: Connected to STP/UTP category-5 twisted pairs One fiber port: Multi-mode – SC or ST (fiber size: 50,62.5/125μm) Single mode – SC/FC fiber port (fiber size: 9/125μm) Single-fiber single-mode – SC/FC fiber port (fiber size: 9/125 μ m) |
| Conversion mode | Medium conversion, storing and forwarding/straight-through |
| MAC address table | 4K |
| Buffer space | 2Mbit |
| Flow control | Full duplex state: flow control; half-duplex state: back pressure mode |
| Delay | Storing & forwarding: 9.6 μ s; straight-through: 0.9 μ s; |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| Power | 12/24/48 VDC,18 ~ 30VAC input |
| Power consumption | 3W |
| Storage humidity | 5%~90% (non-condensing) |
| Dimensions | 115mm×30mm×70mm (height * width * depth) |
