Product Details:
|
| Name: | Rail Type Media | Mounting: | Din Rail |
|---|---|---|---|
| RJ45 Port: | 1 10/100/1000M | Power Supply: | DC Or AC |
| Operating: | -40~75°C | Storage: | -40~85°C |

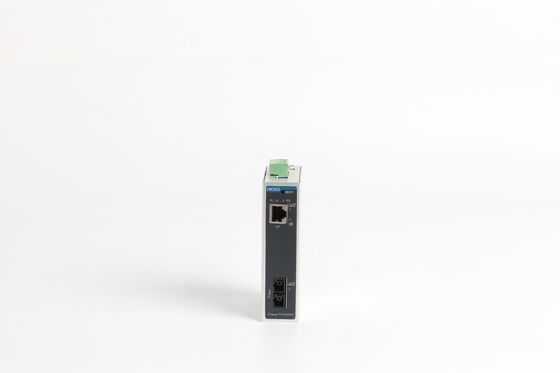

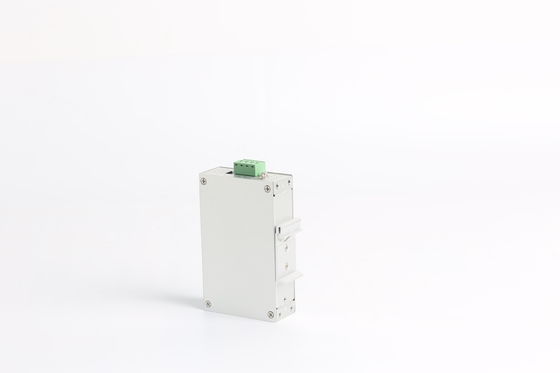

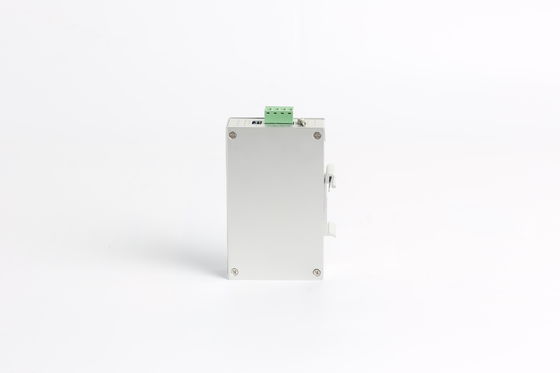

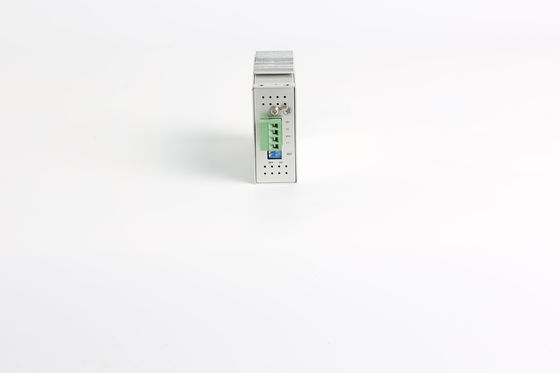

1 Port Gigabit Fiber Media Converter 1 1000M Rj45 Port Rail Type Media
Feature
| Parameters | Specifications |
| Access mode | 10/100/1000Mbps |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T,IEEE802.3z 1000Base-SX/LX Gigabit thernet, IEEE 802.3x Flow Control,IEEE802.1d Spanning Tree,IEEE802.1q vlan,IEEE802.1p Qos |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance | Dual-fiber multi-mode: 2Km; dual-fiber single-mode: 25/40/60/80/100/120Km;single-fiber single-mode: 25/40/60/80/100Km Category-5 twisted pairs: 100m |
| Port | One RJ45 port: Connected to STP/UTP category-5 twisted pairs One fiber port: Multi-mode – SC or ST (fiber size: 50,62.5/125μm) Single mode – SC/FC fiber port (fiber size: 9/125μm) Single-fiber single-mode – SC/FC fiber port (fiber size: 9/125 μ m) |
| Conversion mode | Medium conversion, storing and forwarding/straight-through |
| MAC address table | 4 K |
| Buffer space | 2Mbit |
| Flow control | Full duplex state: flow control; half-duplex state: back pressure mode |
| Delay | Storing & forwarding: 9.6 μ s; straight-through: 0.9 μ s; |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| LED | FX LINK/ACT (fiber link/action) SPD (twisted pair: transmission rate of 1000M) TP LINK/ACT (twisted pair link/action);P1 (power supply P1) ,P2(power supply P2) |
| Power | 12/24/48 VDC,18 ~ 30VAC input |
| Power consumption | 2.5W |
