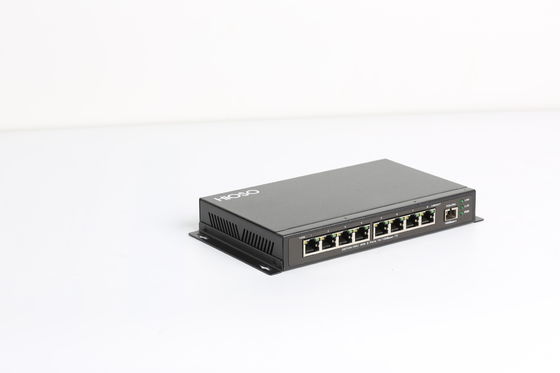

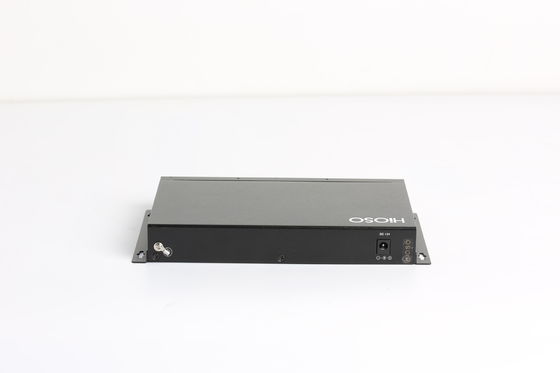

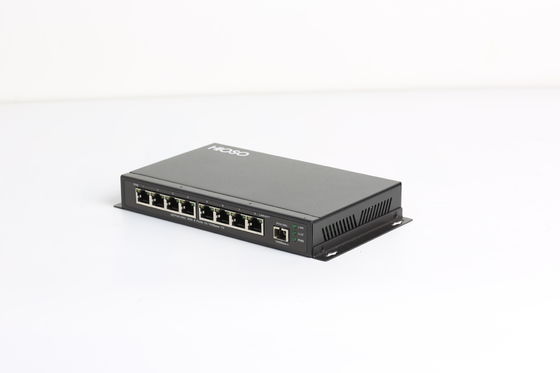

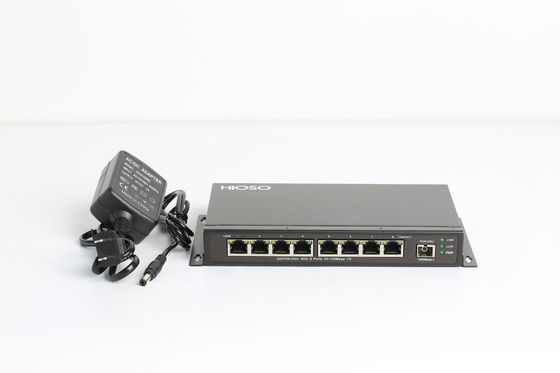

Industrial Type 8 10/ 00M Ports Onu Epon Wifi For Fttx Solutions

Industrial Type 8 10/ 00M Ports Onu Epon Wifi For Fttx Solutions
Industrial Type 8 10/ 00M Ports Onu Epon Wifi For Fttx Solutions Industrial Type 8 10/ 00M Ports Onu Epon Wifi For Fttx Solutions Industrial Type 8 10/ 00M Ports Onu Epon Wifi For Fttx Solutions Industrial Type 8 10/ 00M Ports Onu Epon Wifi For Fttx Solutions

Large Image :  Industrial Type 8 10/ 00M Ports Onu Epon Wifi For Fttx Solutions

Product Details:
Place of Origin: China, Guang dong
Brand Name: Hioso
Certification: CE, RoHS, CCC
Model Number: HA7208H
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 30X25X15 CM
Delivery Time: 3-10 working days
Payment Terms: T/T
Supply Ability: 4000pcs/month

Industrial Type 8 10/ 00M Ports Onu Epon Wifi For Fttx Solutions

Description
Name: Epon Onu Application: FTTB/FTTH/FTTO
Wavelength: Tx 1310nm Power Supply: 12V DC
Warranty: 3 Years MAC Table: 64K
High Light:

8 Ports onu epon wifi

,

onu epon wifi For Fttx Solutions

,

8 Ports epon gpon onu

8 Port Epon Onu 8 10 / 100M Ports Industrial Type ONU Apply For Fttx Solutions



Feature

  • Apply to IEEE802.3/802.3ah
  • Support auto discovery and auto register (real-time operation)
  • Support DBA and multi types SLA
  • Support IGMP Snooping V2 multi-broadcast function
  • Support EMI and ESD identification
  • Support VLAN
  • Support user end auto time synchronization based at SNTP
  • Support OAM and remote management
  • High temperature resistance, anti-strong lightning and anti-strong electromagnetic interference function
  • Support port speed limitation, loop detection, and port isolated function



Technical Specification



Parameter Specification
Working wavelength 1310 (TX)/1490 (RX)
Transmission distance 20KM
Optical power -1-- +4dBm
Receiving sensitivity -24dBm
Cache space 1.25MB
MTBF 100,000 hours
PON interface type SC/PC
EPON trait

Support IEEE802.3ah

Support Dynamic Bandwidth Allocation (DBA)

Support ONU auto-searching and automatic registration (real-time operation)

Standard and protocol

Support IEEE802.3, IEEE802.3u,

Support IEEE802.1q VLAN

Support IEEE802.1p QoS

IGMP Snooping V2

Management Work with OLT to configure ONU and software upgrade



Working Environment

Parameter Specification
Power DC12/1A (external power)
Power consumption 4W
Working temperature -40—75 C
Storage temperature -40—85 C
Humidity 5%--90% non-condensing
Dimension 26(length)mm * 135mm (width) * 152mm (height)







Industrial Type 8 10/ 00M Ports Onu Epon Wifi For Fttx Solutions 0

Industrial Type 8 10/ 00M Ports Onu Epon Wifi For Fttx Solutions 1





About HiOSO

HiOSO Technology Co., Ltd. was founded in 2002, being dedicated to the research, production and sale of optical communication network products based on FTTH and FTTD.To make our products better, we have experienced and professional talents. Our main products include EPON systems, fiber optic media converters, CWDM system equipment, digital video optical transceivers, converter racks, single/multi-mode converters, PDH and fiber modems. Since the launch of our products in domestic market and international market, we have won a good reputation for our high quality products and sincere services. Our products are widely applied to network systems of Telecom, Radio and Television, Public Security and Bank industries.
