Product Details:
|
Name: | Epon Onu | Application: | FTTB/FTTH/FTTO |
---|---|---|---|
Wavelength: | Tx 1310nm | Power Supply: | 12V DC |
Warranty: | 3 Years | MAC Table: | 64K |
High Light: | 10/100 BASE TX Port ont gepon,Ethernet ont gepon,Ethernet onu epon gpon |

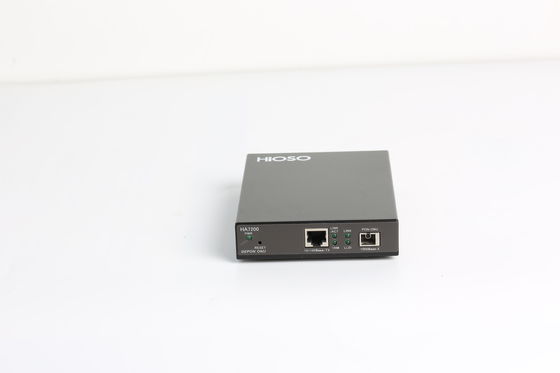

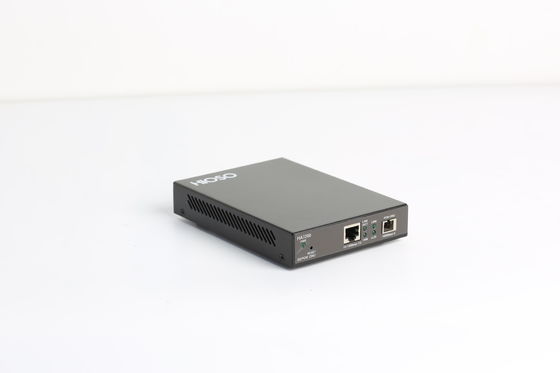

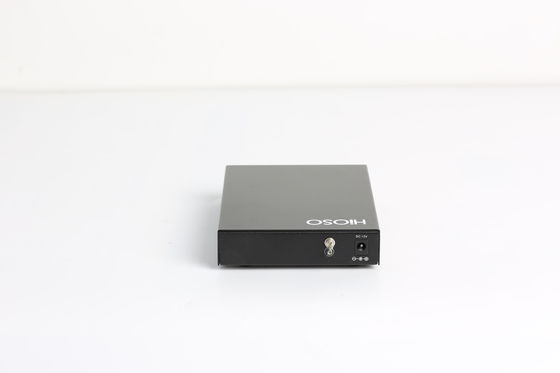

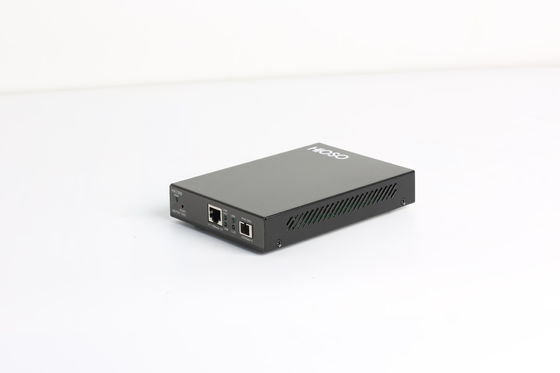

1 Port Ethernet Epon Onu Fixed 10 / 100 BASE TX Port Work With Central OLT
Overview
HA7200 ONU is an Ethernet product, with a fixed 10/100BASE-TX port. HA7200 works with central device OLT to implement integrated management, long-distance fault location and decrease maintenance workload.
Feature
Technical Parameter
Parameter | Specification |
Wavelength | 1310 (TX)/1490 (RX) |
Optical power | -1~+4dBm |
Receiving sensitivity | -24dBm |
Max transmission distance | 20 km |
MAC Table | 64 |
Cache space | 1.25MB |
Number of LLID | 1--8 |
MTBF | 100,000 hours |
EPON trait |
Support IEEE802.3ah Support Dynamic Bandwidth Allocation (DBA) Support ONU auto-searching and automatic registration (real-time operation) |
Standard and Protocol |
Support IEEE802.3, IEEE802.3u Support IEEE802.1q WLAN Support IEEE802.1p QOS |
Network management | Cooperating with center OLT, implement management configuration and software upgrade to ONU |
