Product Details:
|
| Product Name: | Epon Onu | Application: | FTTH Network |
|---|---|---|---|
| Wavelength: | Tx 1310nm/Rx1490nm | Color: | Black |
| Warranty: | 3 Years | Power Supply: | AC220V |
| High Light: | Tx 1310nm EPON ONU,24 Port EPON ONU,Rx1490nm fiber optic device |
||

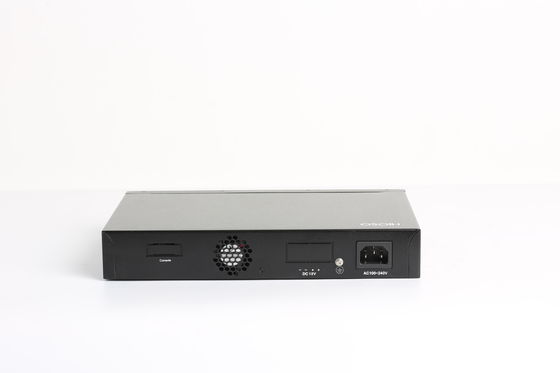

24 Port Epon Onu 24 10 / 100M Ethernet Ports Industrial Supply Ftth Olt
Feature
Technical Specification
| Parameter | Specification |
| Wavelength | 1310(TX)/1490(RX) |
| Optical power | -1~+4dBm |
| Receiving sensitivity | -25dBm |
| Maximum distance | 20km |
| Cache space | 1.25MB |
| MTBF | 100000 hours |
| PON port | SC/PC |
| EPON Feature |
Apply to IEEE802.3ah Support DBA Support auto discovery and auto register |
| Standards |
Support IEEE802.3, IEEE802.3u Support IGMP Snooping V2 SupportIEEE802.1Q VLAN SupportIEEE802.1P QoS |
| Management | Cooperate with OLT, to upgrade and manage the ONU |
Working Environment
| Parameter | Specification |
| Power supply | AC110~220V@50 /60HZ |
| Power consumption | 18W |
| Working temperature | -10～55℃ |
| Storage temperature | -40～70℃ |
| Humidity | 5%～90% non-condensing |
| Dimension | 44mm(H) ×310mm(W) ×161mm(D) |
