Product Details:
|
| Product Name: | Epon Onu | Application: | FTTX |
|---|---|---|---|
| Pon Port: | SC / PC | Power: | 12V DC |
| MTBF: | 100000h | MAC Table: | 64K |
| High Light: | Gigabit onu gepon,4 ports onu gepon,Gigabit gpon e epon |
||

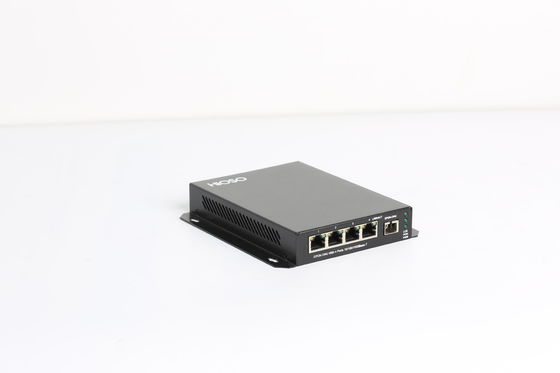

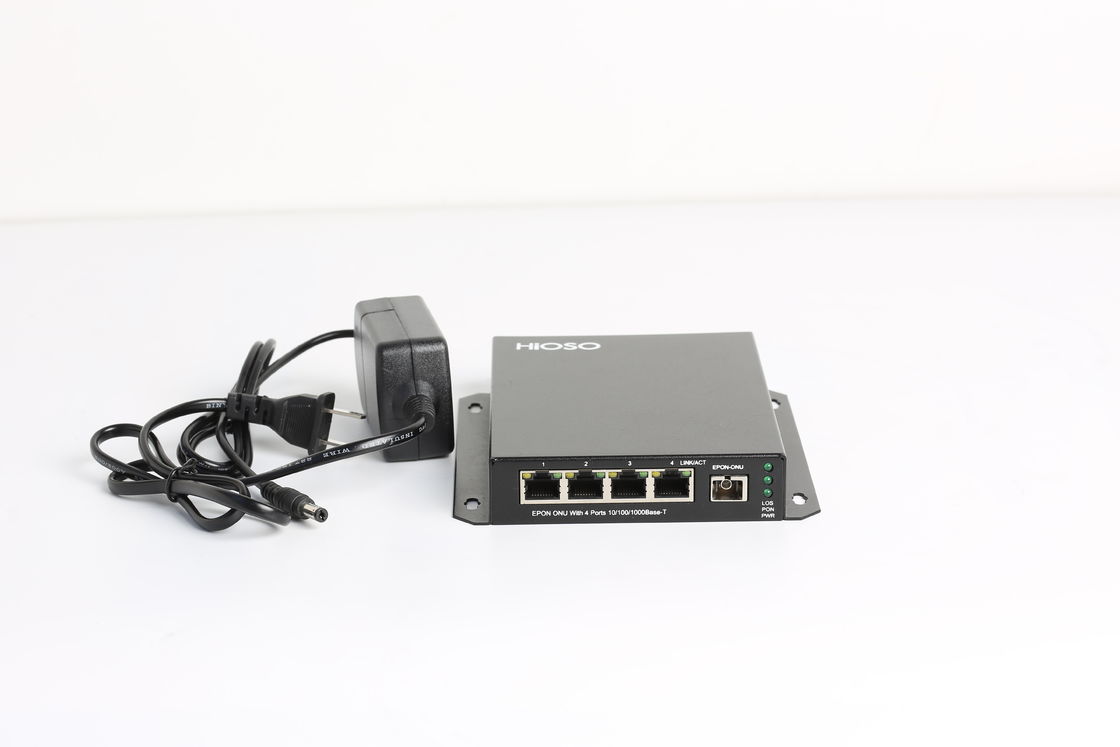

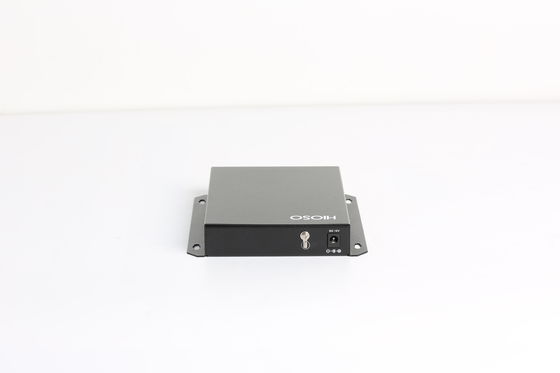

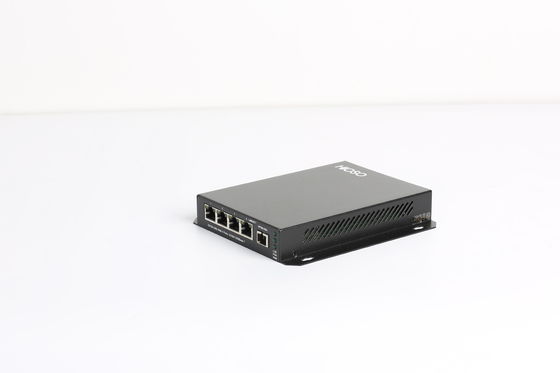

Gigabit 4 Port Epon Onu 4 10 / 100 / 1000Mbps Ports Supply With Ftth Olt
Feature
Technical Specification
| Parameter | Specification |
| Working wavelength | 1310 (TX)/1490 (RX) |
| Transmission distance | 20KM |
| Optical power | 0-- +4dBm |
| Receiving | -27dBm |
| Cache space | 1.25MB |
| MTBF | 100,000 hours |
| PON interface type | SC/PC |
| EPON trait |
Support IEEE802.3ah Support Dynamic Bandwidth Allocation (DBA) Support ONU auto-searching and automatic registration (real-time operation) |
| Standard and protocol |
Support IEEE802.3, IEEE802.3u, Support IEEE802.1q VLAN Support IEEE802.1p QoS IGMP Snooping V2 |
| Management | Work with OLT to configure ONU and software upgrade |
![]()
![]()
