Product Details:
|
| Name: | Epon Onu | Application: | FTTB/FTTH/FTTO |
|---|---|---|---|
| Wavelength: | Tx 1310nm | Power Supply: | 12V DC |
| Warranty: | 3 Years | MAC Table: | 64K |
| High Light: | 4 Port ont epon,HiOSO ont epon,4 Port onu network device |
||

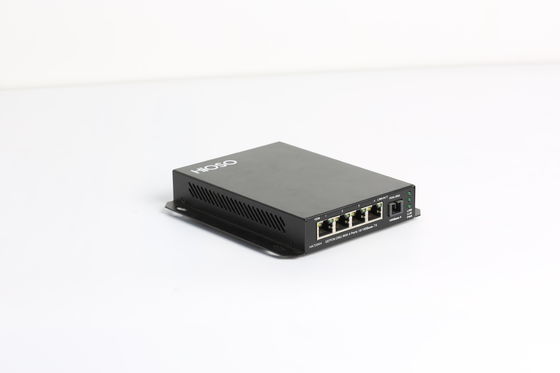

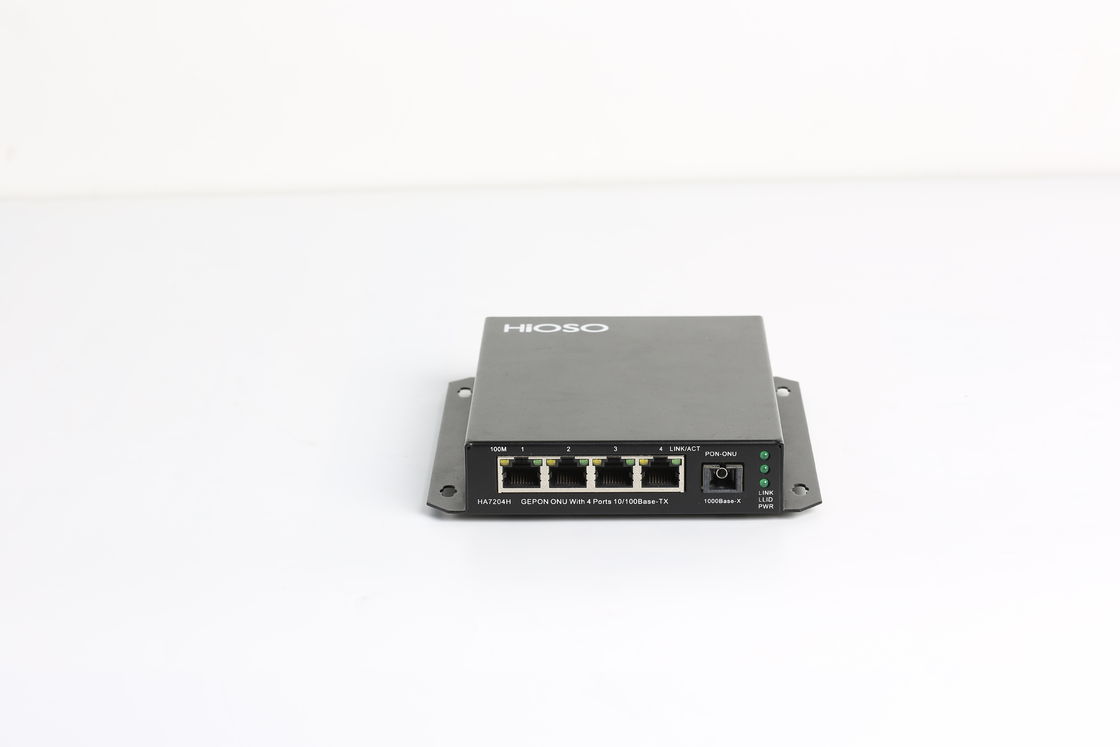

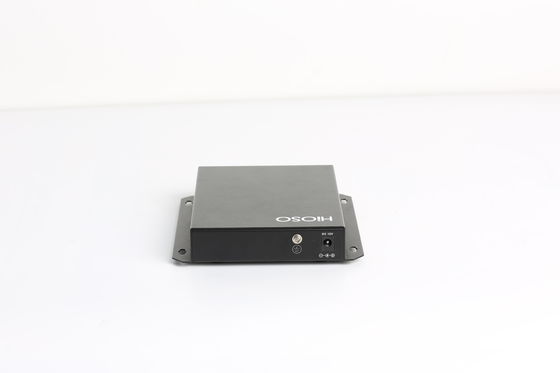

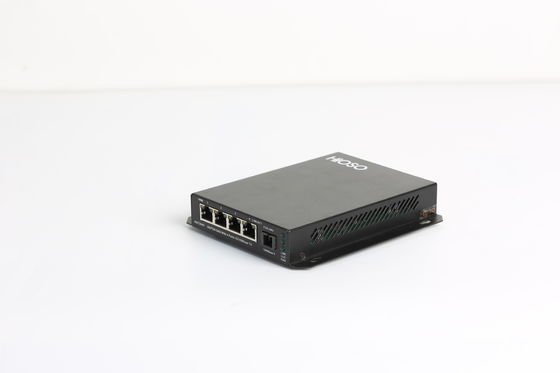

4 Port Epon Onu 4 10 / 100M Ports Industrial Type ONU Compatible With Ftth Olt
Overview
HA7204H is four 10/100M ports industrial type ONU. Its high temperature resistance feature and multiple lightning protection design guarantee high efficient operation in atrocious weather. HA7204H is mainly used in security monitoring, tunnel monitoring, mine network, and other surveillance solutions.
HA7204H ONU works with OLT and NMS management card to implement fault location and diagnosis, which makes maintenance easier.
Technical Specification
| Parameter | Specification |
| Working wavelength | 1310 (TX)/1490 (RX) |
| Transmission distance | 20KM |
| Optical power | -1-- +4dBm |
| Receiving sensitivity | -24dBm |
| Cache space | 1.25MB |
| MTBF | 100,000 hours |
| PON interface type | SC/PC |
| EPON trait |
Support IEEE802.3ah Support Dynamic Bandwidth Allocation (DBA) Support ONU auto-searching and automatic registration (real-time operation) |
| Standard and protocol |
Support IEEE802.3, IEEE802.3u, Support IEEE802.1q VLAN Support IEEE802.1p QoS IGMP Snooping V2 |
| Management | Work with OLT to configure ONU and software upgrade |
Working Environment
| Parameter | Specification |
| Power | DC12/1A (external power) |
| Power consumption | 4W |
| Working temperature | -40—75 C |
| Storage temperature | -40—85 C |
| Humidity | 5%--90% non-condensing |
| Dimension | 26(length)mm * 135mm (width) * 152mm (height) |
