Product Details:
|
| Product Name: | Fiber MMedia Converter | Ports: | 2 100M SC + 3 100M RJ45 |
|---|---|---|---|
| Rate: | 10/100M | MTBF: | 100,000 Hours |
| MAC Address: | 1k | Buffer Space: | 1M |
| High Light: | 2 100M Fiber Ports Fiber Media Converter,3 100M RJ45 Ports Fiber Media Converter,2 100M Fiber Ports ethernet media converter |
||

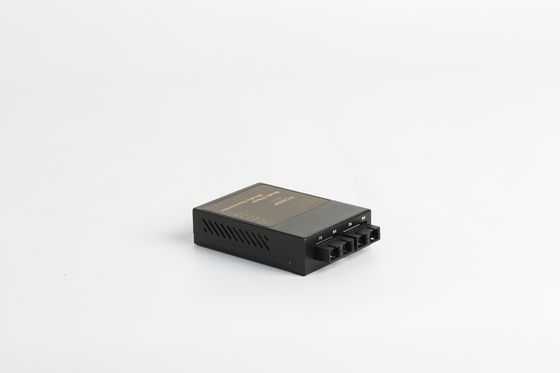

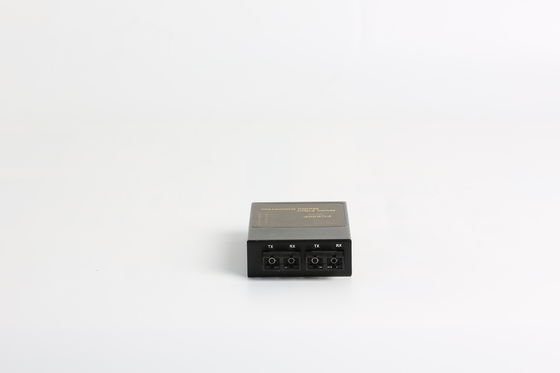

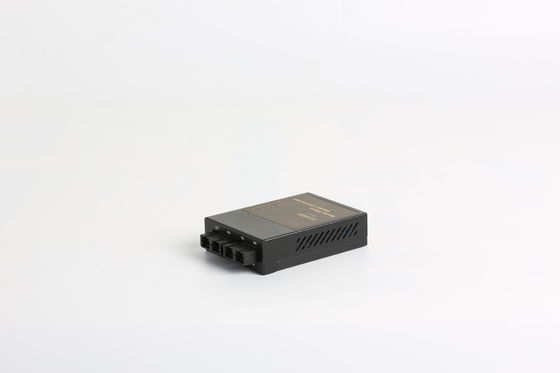

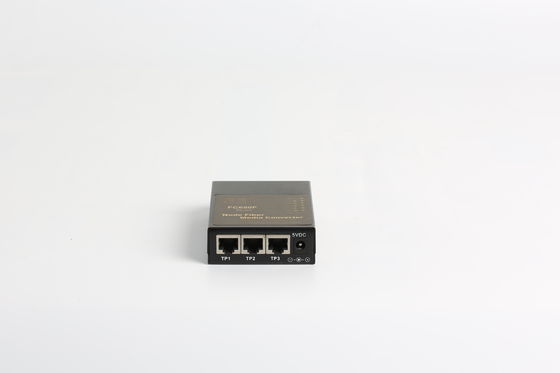

5 Ports Fiber Media Converter 2 100M Fiber Ports + 3 100M RJ45 Ports
Overview
HiOSO FC650F is a kind of 10/100Mbps adaptive fast Ethernet node type fiber media converter, with a built-in 3-port 10/100Mbps adaptive switch, which can implement mutual conversion between 10Base-T/100Base-TX twisted pair electrical signal and 100Base-FX optical signal. FC650F can extend the transmission distance of a network from 100m over copper wires to 120Km.
This type of fiber converter supports two different types of network connection media types: 10/100Base-TX and 100Base-FX. With the application of the switching technology and the storing & forwarding technology, this kind of converter supports transmission in dual-fiber multi-mode,dual-fiber single-mode and single-fiber single-mode fibers.
Technical Specifications
Parameter |
Specifications |
| Access mode | 10/100Mbps |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u, 100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control, IEEE802.1q VLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance | Dual-fiber multi-mode: 2Km; Dual-fiber single-mode: 25/40/60/80/100/120Km; Single-fiber single-mode: 25/40/60/80/100Km Category-5 twisted pair: 100m |
| Port | 1/3 RJ45 connector, connected to STP/UTP category-5 twisted pair Two fiber port: Multi-mode - SC or ST (fiber size: 50,62.5/125μm) Single mode - SC/FC fiber port (fiber size: 9/125μm) Single-fiber single-mode - SC/FC fiber port (fiber size: 9/125μm) |
| Conversion mode | Medium conversion, storing and forwarding mode |
| MAC address table | I K |
| Buffer space | 1Mbit |
| Flow control | Full duplex state: flow control; half duplex state: back pressure mode |
| Delay | 9.6us |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| LED | POWER (power), FX LINK/ACT (fiber connection/action) FDX (FX full duplex mode), FX100 (Fiber, with a transmission rate of 100M) TP1/2/3 LINK/ACT (1/2/3-port twisted pairs connection action) TP1/2/3100 (1/2/3-port twisted pairs, with a transmission rate of 100M) |
| Power | DC5V/1A (external) |
| Power consumption | 3.5W |
| Operating temperature | -10~55℃ |
| Operating humidity | 5%~90% |
| Storage temperature | -40~70℃ |
| Storage humidity | 5%~90% (non-condensing) |
| Dimensions |
26mm(Height)*70mm(Width)*98mm(Depth) (external power) |
FAQ
1. What are your terms of payment?
Usually, we can accept T/T, PayPal and Western Union. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there is stock of goods, we will deliver the goods within 3~5 work days after we receive the payment.
3. How about the shipping?
Usually, we will deliver the goods via International Express like FedEx, DHL, TNT, and UPS and so on. Door to door delivery service will be provided.
