Product Details:
|
| Product Name: | Media Converter | Power Supply: | DC12V |
|---|---|---|---|
| Fiber Type: | Single Fiber | Warranty: | 3 Years |
| Connector: | RJ45 | Color: | Black |
| High Light: | DC12V single fibre media converter,HiOSO single fibre media converter,HiOSO gigabit fiber media converter |
||

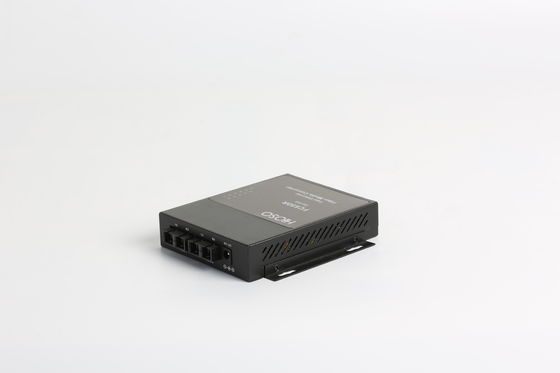

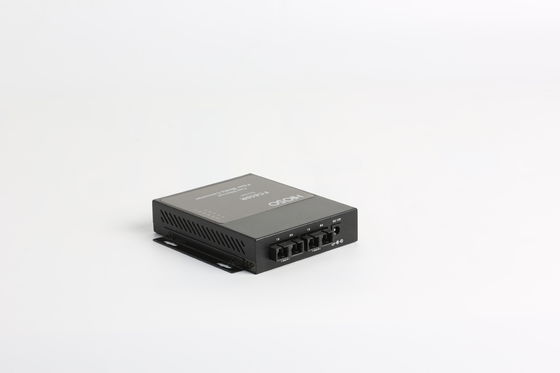

Fiber Media Converter 2 100 Fiber Ports + 3 10 / 100 RJ45 Ports Ring Type
Overview
HiOSO FC650R series Ring type Media Converter is designed to meet requirements of multi fiber access network. It provides 2 100BASE-FX fiber ports and 3 10/100BASE-TX RJ45 ports, and one Console port, which provide not only point to point network connection, but also point to multi-point chain network. It has extend the transmission distance of a network from 100m over copper wires to 120Km (single-mode full duplex) and is applied to highway network system, mine communication system and other chain multi-point networks.
Technical Specification
| Parameters | Specifications |
| Standard | IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.1d Spanning Tree |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance | Dual-fiber single-mode: 10/20/40/60/80/100/120Km |
| Port |

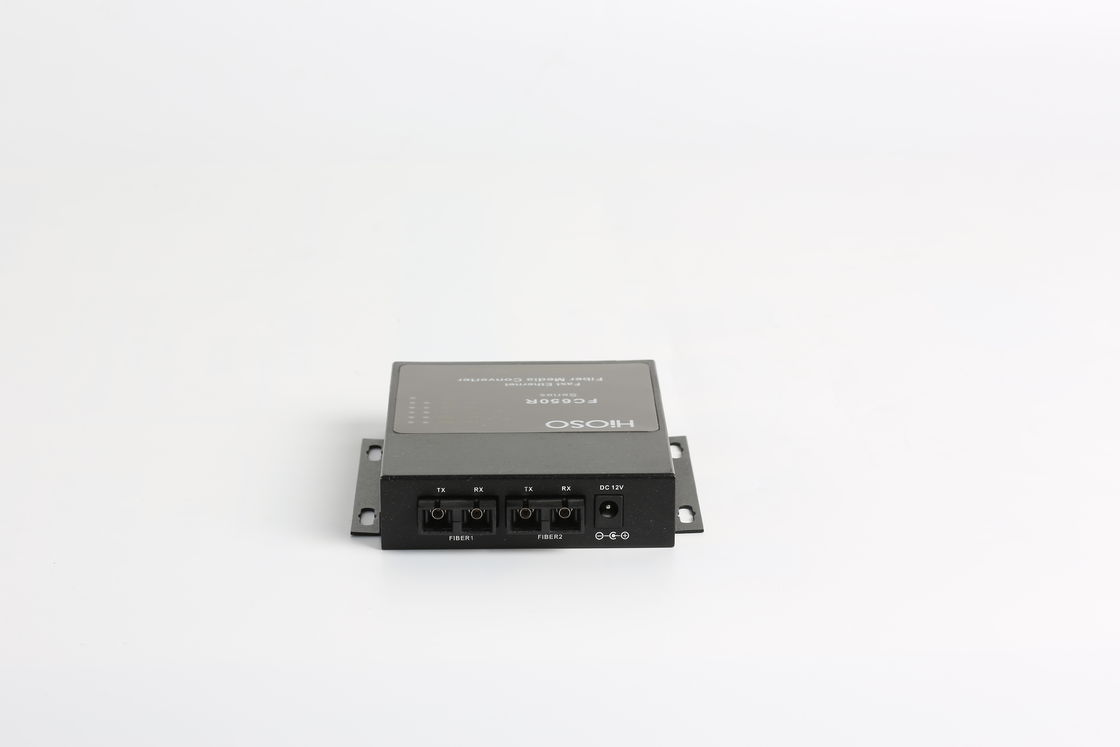

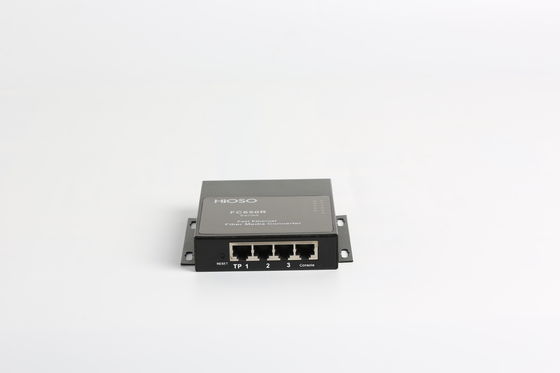

3 RJ45 port: Connected to STP/UTP category-5 twisted pairs 2 fiber port: Multi-mode – SC (fiber size: 50,62.5/125μm) |
| MAC table | 1K |
| Buffer space | 1M bit |
| Delay | <10us |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| LED | POWER(PWR),FX LINK1/2(fiber link/action),TP LINK1000 1/2/3(twisted pair link/action 1000M),TP LINK/ACT1/2/3 (twisted pair packet forwarding link/action) |
| Power | DC 12V |
| Power consumption | 5W |
| Operating temperature | -10~70℃ |
| Operating humidity | 5%~90% |
| Storage temperature | -40~80℃ |
| Storage humidity | 5%~90% (non-condensing) |
| Dimensions | 26mm(H)*96mm(W)*120mm(D)/ (height * width * depth) (external power) |
Q: Can you offer technical support after purchase?
A: Our technical department will be 24h stand by to solve your concerns
