Product Details:
|
| Name: | Fiber Converter | MTBF: | 100,000 Hours |
|---|---|---|---|
| Power: | DC5V | Ports: | 1GE + 1SC |
| MAC Address Table: | I K | Buffer Space: | 1 Mbit |
| High Light: | 1000m Fx Port Fiber Media Converter,1000m Fx Port Fiber Media Converter,1000m Fx Port gigabit media converter |
||

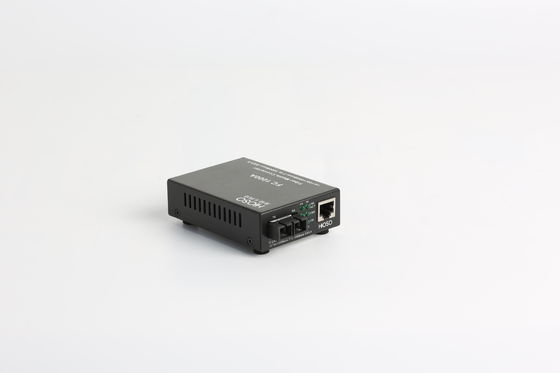

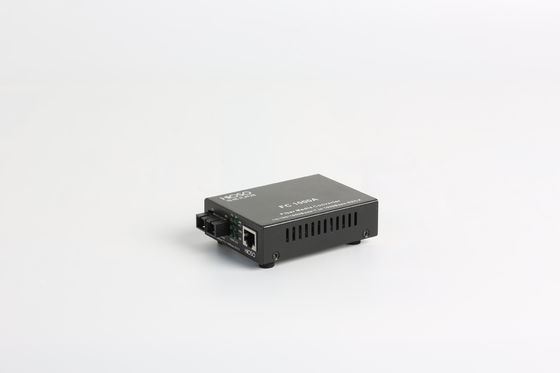

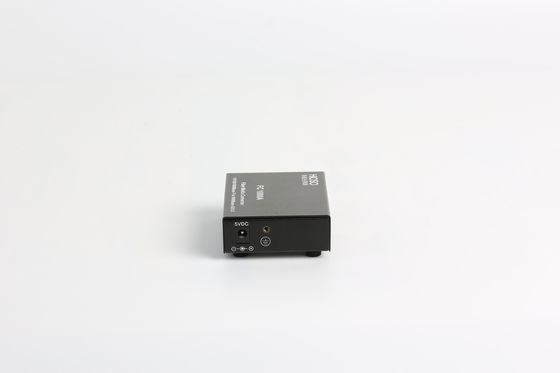

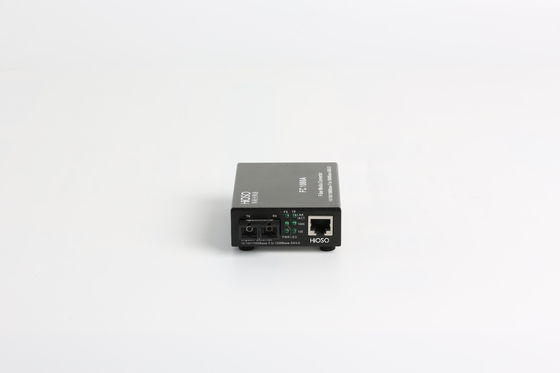

2 Ports Gigabit Fiber Media Converter 1 1000m Rj45 + 1 1000m Fx Port
Overview
FC1000A 10/100/1000Mbps adaptive Gigabit Ethernet Fiber Media Converter uses the switching technology to conduct media conversion, which meets the standards of IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab. FC1000A supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T and 1000Base-SX/LX.
Technical Specification
| Parameters | Specifications |
| Access mode | 10/100/1000Mbps Gigabit Ethernet |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1qVLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| Wavelength | 850nm/1310nm/1490nm/1550nm |
| Port | One RJ45 port: Connected to STP/UTP category-5 twisted pairs One fiber port: Dual-fiber multi-mode – SC (fiber size: 50,62.5/125μm) Dual-fiber single-mode – SC/FC fiber port (fiber size: 9/125μm) Single-fiber single-mode – SC/FC fiber port (fiber size: 9/125μm) |
| Conversion mode | Medium conversion, storing and forwarding mode |
| MAC address table | I K |
| Buffer space | 1 Mbit |
| Delay | <1μs |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| Power | DC5V/1A (external), AC220V/DC-48V (built-in) |
| Power consumption | 2.5W |
| Operating temperature | -10~55°C |
| Operating humidity | 5%~90% |
| Storage temperature | -40~80°C |
| Storage humidity | 5%~90% (non-condensing) |
Q: Can you offer technical support after purchase?
A: Our technical department will be 24h stand by to solve your concerns
