Product Details:
|
| Product Name: | Ring Media Converter | Fiber Port: | 2 1000M FX Fiber Ports |
|---|---|---|---|
| Web Management: | Support | Function: | Ring Function |
| Ethernet Port: | 3 10/100/1000M RJ45 Ports | Wavelength: | 850nm/1310nm/1550nm |
| High Light: | 2 1000M SC Fiber Media Converter,3 1000M RJ45 ports Fiber Media Converter,ISO9001:2008 single mode to multimode fiber converter |
||

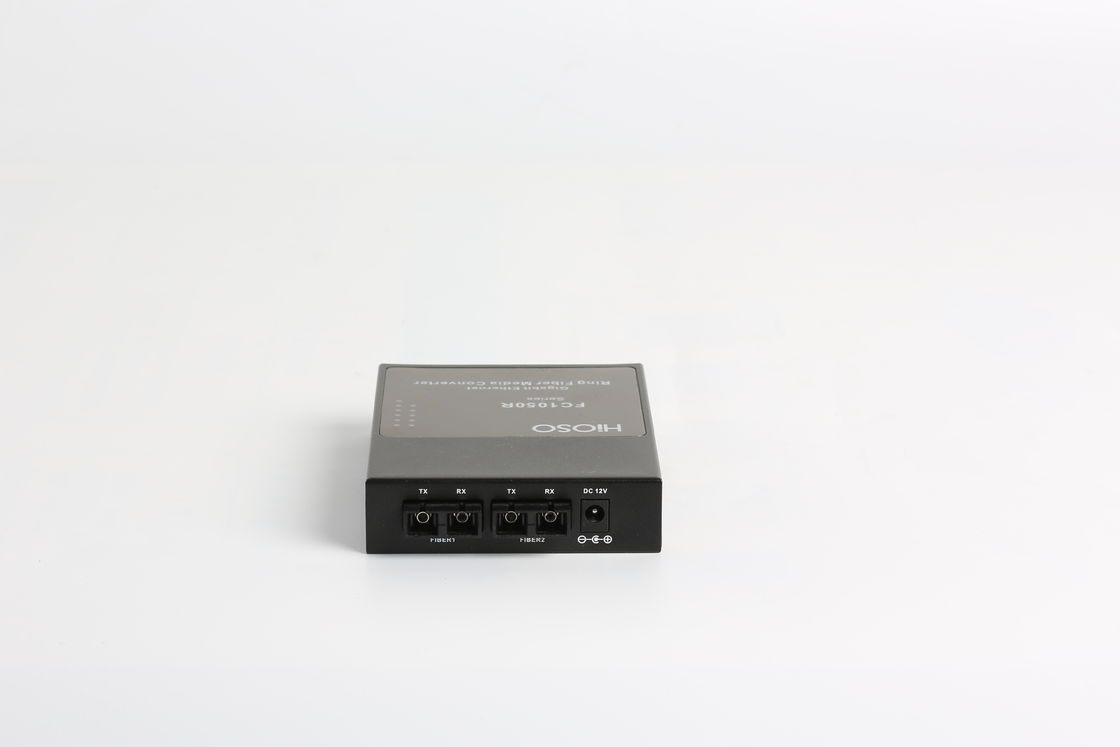

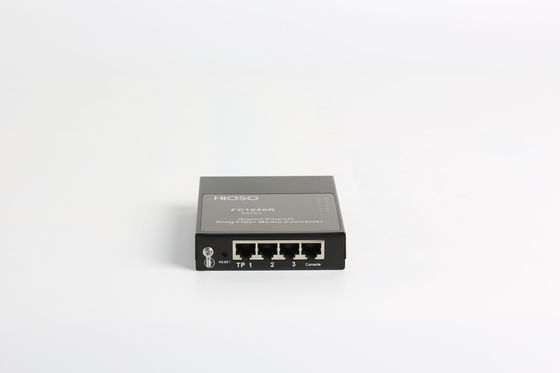

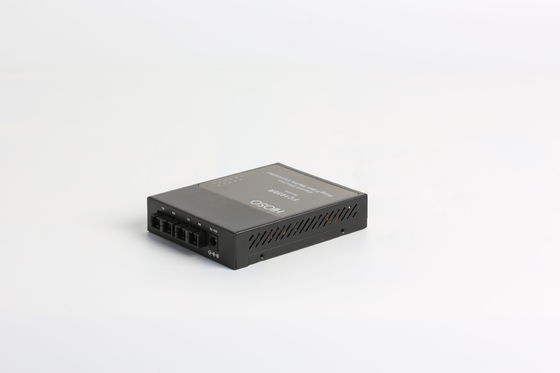

5 Ports Converter 2 1000M SC + 3 1000M RJ45 Ring Type Fiber Media Converter
overview
HiOSO FC1050R series Ring type Media Converter is designed to meet requirements of multi fiber access network. It provides 2 1000BASE-SX/LX fiber ports and 3 10/100/1000BASE-TX RJ45 ports, and one Console port, which provide not only point to point network connection, but also point to multi-point chain network. It support WEB management and RSR (Rapid Super Ring) and has extend the transmission distance of a network from 100m over copper wires to 120Km (single-mode full duplex) and is applied to highway network system, mine communication system and other chain multi-point networks.
Feature
Technical Specification
|
Parameters |
Specifications |
|
Standard |
IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T ,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1d Spanning Tree |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
Dual-fiber single-mode: 10/20/40/60/80/100/120Km |
|
Port |
3 RJ45 port: Connected to STP/UTP category-5 twisted pairs 2 fiber port: Multi-mode – SC (fiber size: 50,62.5/125μm) |
|
Conversion mode |
Medium conversion |
|
Delay |
<10us |
|
Bit error rate |
<1/1000000000 |
|
MTBF |
100,000 hours |
|
Power |
DC 5V |
