Product Details:
|
| Product Name: | Fiber Media Converter | Wavelength: | 850nm/1310nm/1490nm/1550nm |
|---|---|---|---|
| Standard: | IEEE802.1d Spanning Tree Etc. | Power: | DC12V/0.5A |
| Buffer Space: | 1Mbit | Mac Address: | 1K |
| High Light: | 1000mbps rj45 media converter,FX Port rj45 media converter,media converter 1000mbps |
||
2 Ports Security Industrial Fiber Media Converter 1 GE RJ45 + 1 GE FX Port
Technical Specification
| Parameter | Specifications |
| Access mode | 10/100/1000Mbps |
| Standard | IEEE802.3 10Base-T Ethernet,IEEE802.3u,1000Base-TX/FX Fast Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance | Dual-fiber single-mode: 25/40/60/80/100/120Km; |

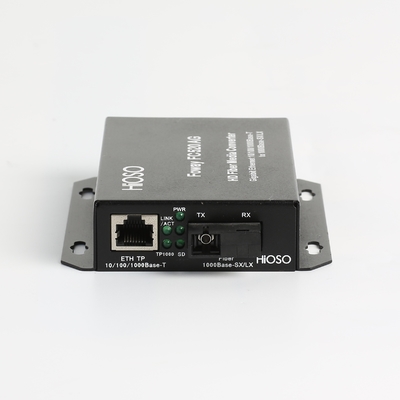

| Port | 1 RJ45 port, connected to STP/UTP category-5 twisted pair Single mode - SC fiber port (fiber size: 9/125μm) |
| Conversion mode | Medium conversion, storing and forwarding mode |
| MAC address table | I K |
| Buffer space | 1Mbit |
| Flow control | Full duplex state: flow control; half duplex state: back pressure mode |
| Delay | 1us |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| LED | POWER (power), FX LINK/ACT (fiber connection/action) FDX (FX full duplex mode), FX1000 (Fiber, with a transmission rate of 1000M) TP LINK/ACT (twisted pairs connection/action) TP1000 (twisted pairs, with a transmission rate of 1000M) |

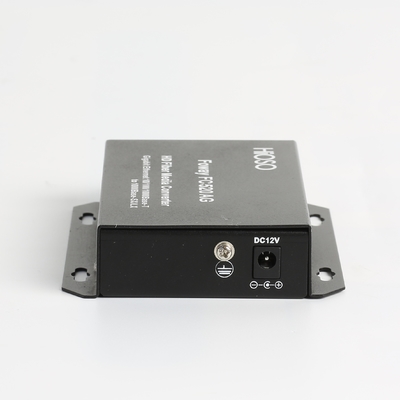

| Power | DC12V/0.5A |
| Power consumption | 2.5W |
| Operating temperature | -10~55℃ |
| Operating humidity | 5%~90% |
| Storage temperature | -40~80℃ |
| Storage humidity | 5%~90% (non-condensing) |
| Dimensions | 26mm(Height)*96mm(Width)*113mm(Depth) (external power) |
Overview

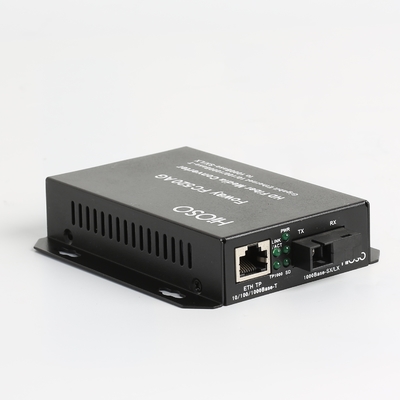

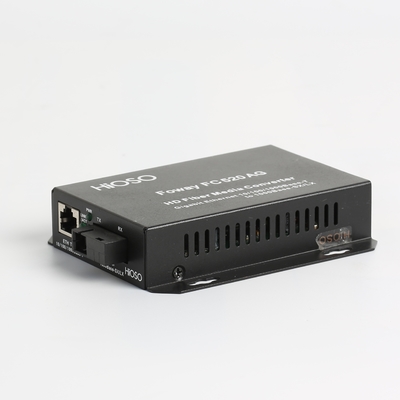

FC520AG is 1000M HD Video Fiber Media Converter, which is specially designed for Network HD IP camera and Network access control system. It supports long-distance stable HD Network video signals transmission through fiber cables. FC520AG can work with FTC-17 Media Converter rack in the central machine room.
FC520AG provides HD Network port, which can connect with HD IP camera or Network access control system.
Feature
Support VLAN tag long packets transmission;
Support flow control, QOS and STP;
Support max distance 120KM transmission;
FTC-17 Rack supports dual power supply redundancy backup and hot swap;
Support 3.2G bandwidth high-speed storing, forwarding and access;
Support full-duplex and half duplex transmission modes and capable of automatic negotiation;
Our Service:
HiOSO provides technician team and special telephones to support after-sales service, customer can get answer and training from our technicians, the problem can be solved within 24 hours if there is anything with products. What's more, we provide free-exchange within one year, free-repair within three years and lifelong maintenance.
Our advantage:
Founded in 2002, Hioso Technology CO., Ltd. is the optic communication product manufacturer with 20 years experience. We engaged in the R&D, design, manufacture, sell FTTH and FTTD products all by ourselves and also provide OEM&ODM service for customers. We only provide cost-effective quality products and premium after-sale service.
