Product Details:
|
| Name: | Industrial Ethernet Media Converter | Mounting: | Din Rail |
|---|---|---|---|
| RJ45 Port: | 2 10/100M Ports | Power Consumption: | 2W(Max) |
| Power Supply: | 9.6 ~ 60 VDC, 18 ~ 30VAC | Item: | Industrial Ethernet Media Converter |
| High Light: | IP30 Casing Fiber Media Converter,2 10/100M Ports Fiber Media Converter,IP30 multimode fiber to copper media converter |
||

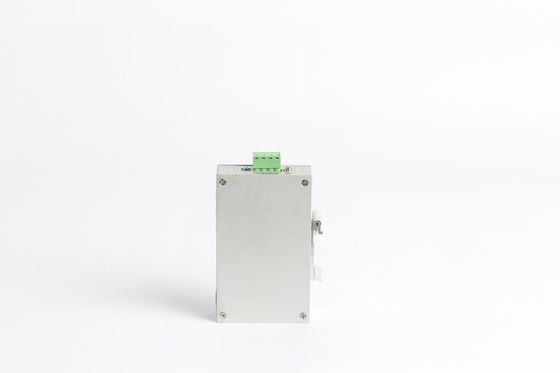

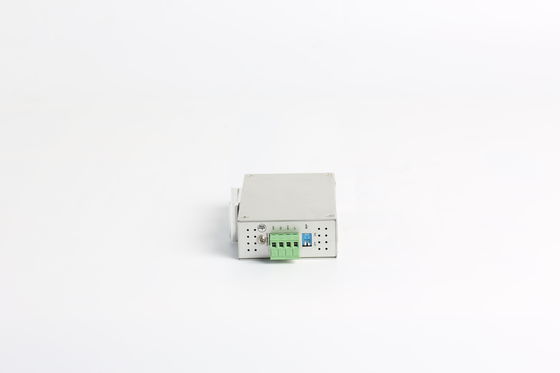

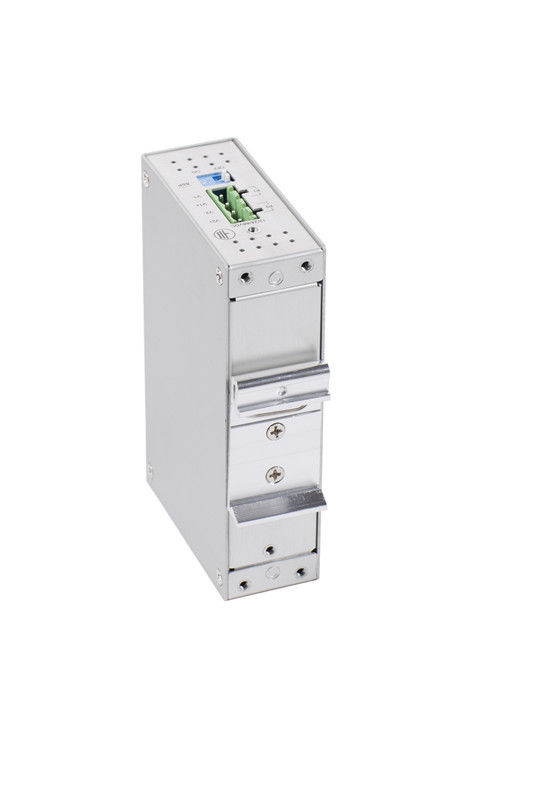

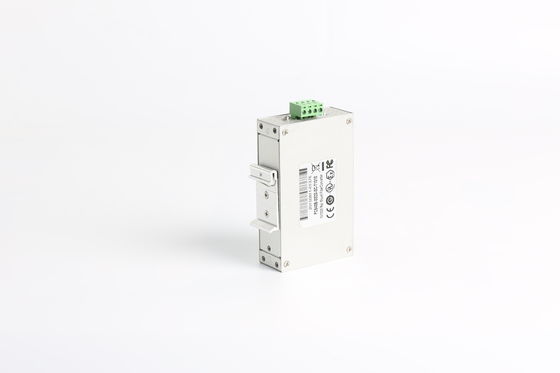

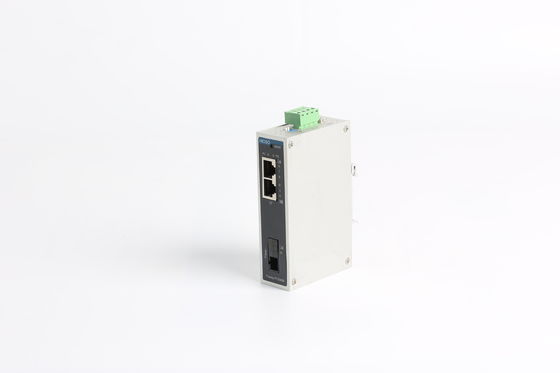

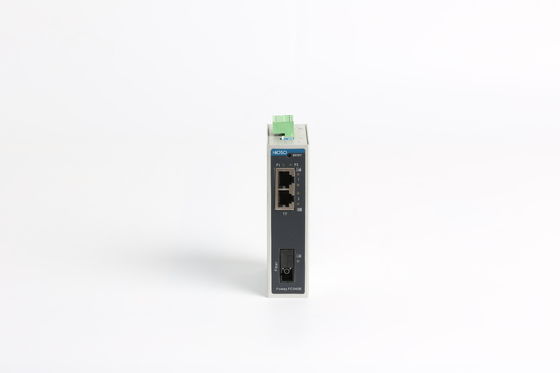

Fiber Media Converter 2 10/100M Ports Industrial Ethernet Media Converter
Overview
Foway FC540B series is a 2 ports Ethernet media converter , which can implement mutual conversion between10Base-T/100Base-TX twisted pair electrical signal and 100Base-FX optical signal. Foway FC540B series media converter provide 2 RPS (Redundant power supply) input : 9.6 ~ 60 VDC and 18 ~ 30VAC , it can be connected to a DC or AC power supply. Besides, Foway FC540B series can work under the -40 ~ 75°C , With IP30 environmental protection grade, suitable for any industry . Foway FC540B series with the DIP switch , can enable or disable broadcast storm protection, for different industrial applications provide another flexible solution
Character
Technical Specification
|
Parameters |
Specifications |
|
Access mode |
10/100Mbps |
|
Port |
Two RJ45 port: Connected to STP/UTP category-5 twisted pairs |
|
Conversion mode |
Medium conversion, storing and forwarding/straight-through |
|
MAC address table |
I K |
|
Buffer space |
1Mbit |
|
Flow control |
Full duplex state: flow control; half-duplex state: back pressure mode |
|
Delay |
Storing & forwarding: 9.6 μ s; straight-through: 0.9 μ s; |
|
Bit error rate |
<1/1000000000 |
|
MTBF |
100,000 hours |
|
LED |
FX LINK/ACT (fiber link/action) |
|
Power |
12/24/48 VDC,18 ~ 30VAC input |
|
Power consumption |
2W |
|
Operating temperature |
-40~75°C |
|
Operating humidity |
5%~90% |
|
Storage temperature |
-40~85°C |
|
Storage humidity |
5%~90% (non-condensing) |
|
Dimensions |
115mm×30mm×70mm (height * width * depth) |
Order information
|
No |
Product code |
NMS |
Ports |
Storage temperature |
|
1 |
FC540B-xxxx-xx |
No |
2 10/100M RJ45 + 1 100M SFP port |
-10~60℃ |
|
2 |
FC540B-xxxx-xx-T |
NO |
2 10/100M RJ45 + 1 100M SFP port |
-40~75℃ |
