Product Details:
|
| Product Name: | WIFI ONU | Application: | FTTX Solutions |
|---|---|---|---|
| Material: | Plastic | PON: | 1 PON SC Port |
| Power Supply: | DC12V | Transmission Distance: | 20KM |
| High Light: | SC pon port EPON ONU,CE Approval EPON ONU,SC pon port ont epon |
||
4 Ports Wifi Epon Onu 1GE + 3FE + CATV + WiFi Compatible With Fttx Solutions
Overview

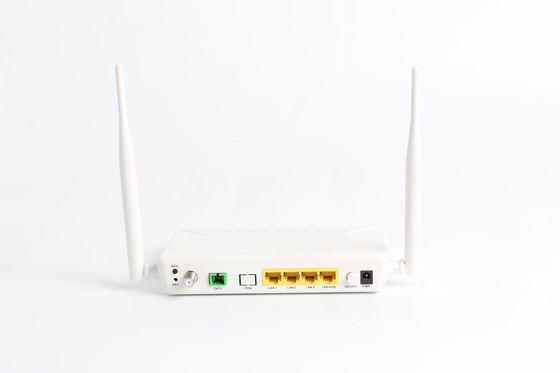

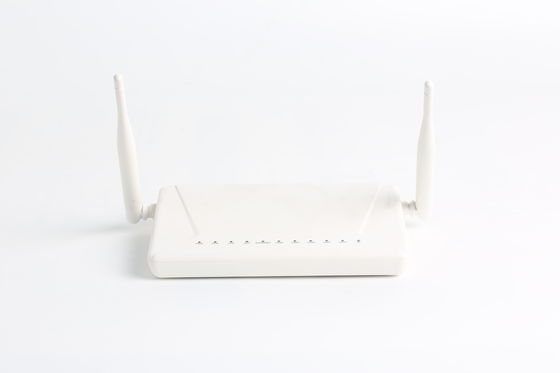

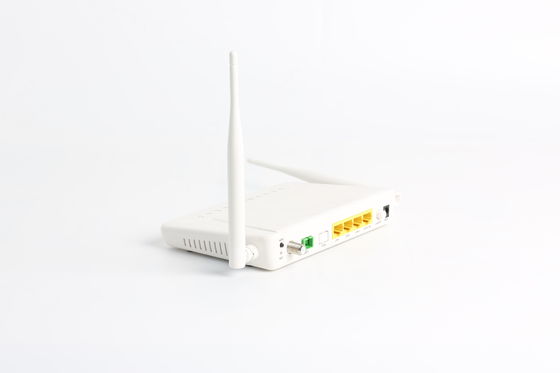

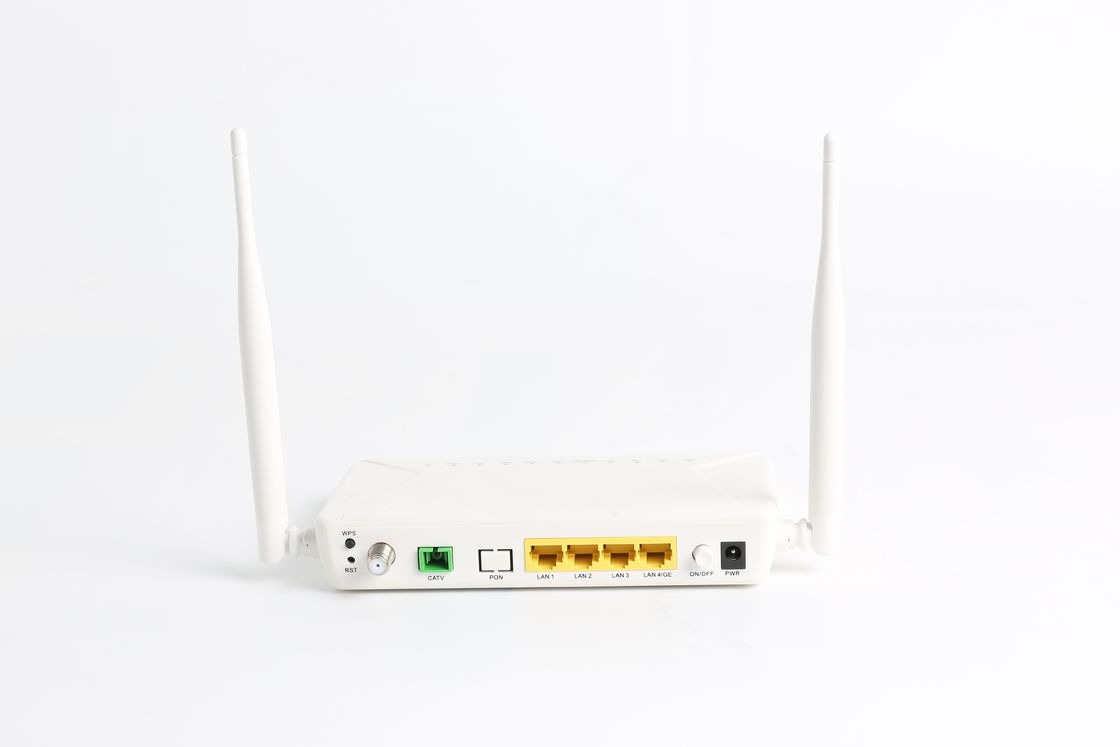

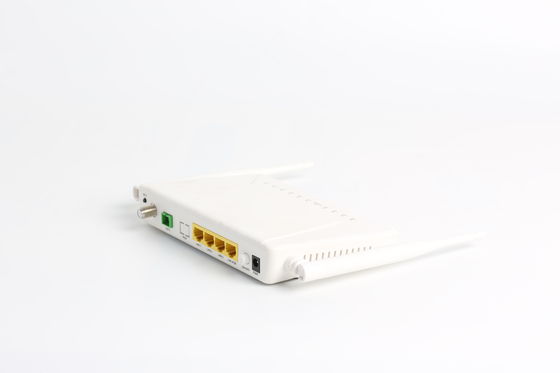

This is an ONU integrate with CATV optical receiver, supports fiber access based at EPON and CATV access based as HFC network. HA404WTS offers one EPON port, 4 10/100M Ethernet ports and one RF CATV port, and support WIFI function.
Feature
Technical Specifications
|
parameter |
Specification |
|
Wavelength |
1310(TX)/1490(RX) |
|
Optical power |
-1~+4dBm |
|
Receiving sensitivity |
-24dBm |
|
Maximum transmission distance |
20 km |
|
Cache space |
1.25MB |
|
MTBF |
100,000 hours |
|
PON port |
SC |
|
Feature |
Support IEEE802.3ah Support Dynamic Bandwidth Allocation (DBA) Support ONU auto-searching and automatic registration (real-time operation) |
|
CATV |
Turn on/off RF output remotely Wavelength:1550 +/- 10nm Optical return loss:>45dB Input optical power:-8dBm~+2dBm RF frequency:47MHz~875MHz RF output lever:75~80dBuV CNR:>46dB, CSO: >58dBc, CTB: >58dBc RF output return loss: >14dB RF impedance:75Ohm |
|
Standards |
Support IEEE802.3, IEEE802.3u Support IEEE802.1q VLAN Support IEEE802.1p QOS IEEE802.11b/g/n |
|
Management |
Cooperating with center OLT, implement management configuration and software upgrade to ONU |
