Product Details:
|
| Name: | HA404WI | Material: | Plastic Casing |
|---|---|---|---|
| Use: | FTTX | Colour: | White |
| Power Supply: | DC12v | Wavelength: | TX 1310nm/ RX 1490nm |
| High Light: | TX 1310nm epon onu 1ge,ISO9001:2008 epon onu 1ge,Rx 1490nm onu epon wifi |
||
Overview

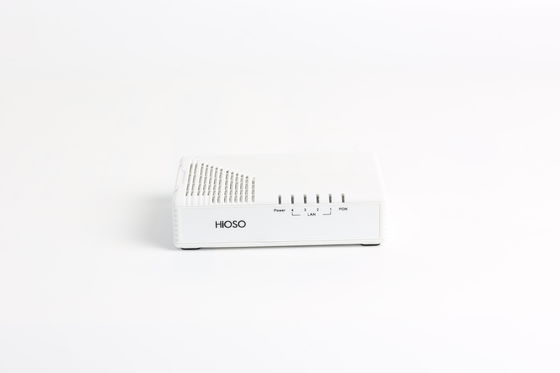

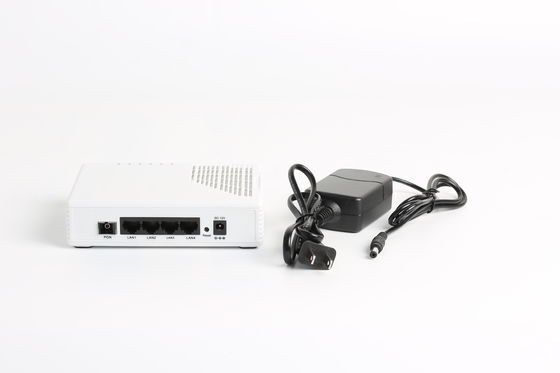

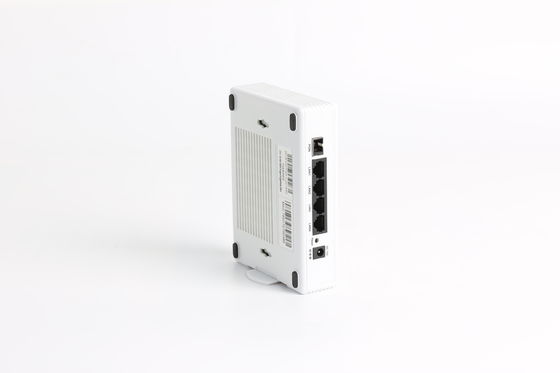

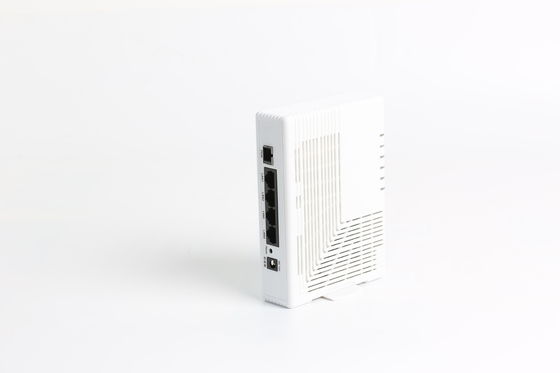

HA404WI ONU is an Ethernet product, with one fixed 10/100/1000Mbps port, three 10/100 Mbps ports. HA404WI works with central device OLT to implement integrated management, long-distance fault location and decrease maintenance workload.
Feature
Technical Parameter
| Parameter | Specification |
| Wavelength | 1310(TX)/1490(RX) |
| Optical power | -1~+4dBm |
| Receiving sensitivity | -24dBm |
| Max transmission distance | 20 km |
| MAC Table | 64 |
| Cache space | 1.25MB |
| Number of LLID | 1～8 |
| MTBF | 100,000 hours |
| EPON trait |
Support IEEE802.3ah Support Dynamic Bandwidth Allocation (DBA) Support ONU auto-searching and automatic registration (real-time operation) |
| Standard and Protocol |
Support IEEE802.3, IEEE802.3u Support IEEE802.1q WLAN Support IEEE802.1p QOS Compliant with IEEE802.11b/g/n |
| Network management | Cooperating with center OLT, implement management configuration and software upgrade to ONU |
Working Environment
| Parameter | Specification |
| Power | DC12V/0.5A |
| Power consumption | 3.5W |
| Operating temperature | -10—55 C |
| Storage temperature | -40—70 C |
| Humidity | 5%--90% non-condensing |
| Dimension | 146mm(length) * 105mm(width) * 35mm(height) |
