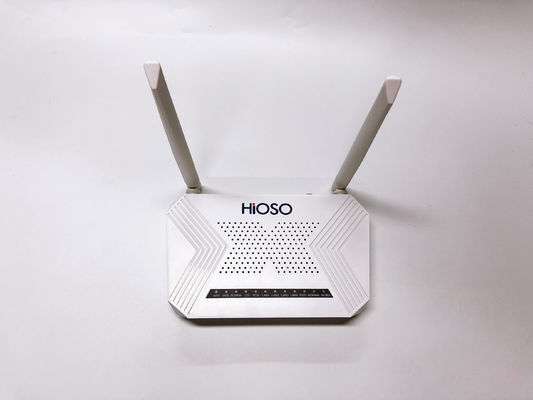

Product Details:
|
| Type: | FTTx Solutions | Use: | FTTX |
|---|---|---|---|
| Product Name: | FTTH ONU | Application: | FTTH FTTB FTTX Network |
| Material: | Plastic | PON: | 1 PON SC Port |
| Ports: | 1 10/100/1000 M RJ45 Port | Power Supply: | DC12V |
| Wavelength: | TX 1310nm/ RX1490nm | Transmission Distance: | 20KM |
| Warranty: | 3 Years | Selling Units: | Single Item |
| Single Package Size : | 32X25X8 Cm | Single Gross Weight: | 0.600 Kg |
| Package Type: | Standard Packing | ||
| High Light: | CCC approval EPON ONU,1 PON SC port EPON ONU,1 PON SC port onu epon gpon |
||
|
Parameter
|
Specification
|
|
|
1 G/EPON port(EPON PX20+ and GPON Class B+)
|
|
Receiving sensitivity: ≤-27dBm
|
|
|
Transmitting optical power: 0~+4dBm
|
|
|
Transmission distance: 20KM
|
|
|
Wavelength
|
TX: 1310nm, RX: 1490nm
|
|
Optical Interface
|
SC Connector
|
|
|

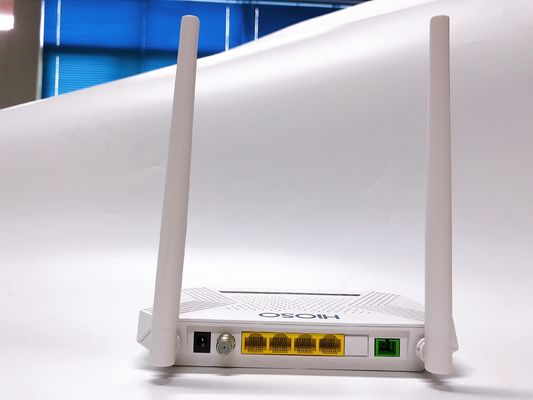

1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
|
|
|
RF, WDM ,optical power : +2~-18dBm
|
|
Optical reflection loss: ≥45dB
|
|
|
Optical receiving wavelength: 1550±10nm
|
|
|
RF frequency range: 47~1000MHz, RF output impedance: 75Ω
|
|
|
RF output level: 78dBuV
|
|
|
AGC range: 0~-15dBm
|
|
|
MER: ≥32dB@-15dBm
|
|
|
Wireless
|
Compliant with IEEE802.11b/g/n,
|
|
Operating frequency: 2.400-2.4835GHz
|
|
|
support MIMO, rate up to 300Mbps,
|
|
|
2T2R,2 external antenna 5dBi,
|
|
|
Support: Multiple SSID
|
|
|
Channel: Auto
|
|
|
Modulation type: DSSS, CCK and OFDM
|
|
|
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
|
|
|
|
11 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN4,Worn, Normal(CATV)
|
|
Push-Button
|
3,For Function of Reset, WLAN, WPS
|
|
|
Temperature: 0℃~+50℃
|
|
Humidity: 10%～90%(non-condensing)
|
|
|
|
Temperature: -30℃~+60℃
|
|
Humidity: 10%~90%(non-condensing)
|
|
|
Power Supply
|
DC 12V/1A
|
|
Power Consumption
|
≤6W
|
|
Dimension
|
155mm×92mm×34mm(L×W×H)
|
|
Net Weight
|
0.24Kg
|
1. What is your MOQ?
Yes, our MOQ is 1.
2. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. But if you have your shiping agent, we’ll have a good cooperation with them.
3. What is your payment terms?
Usually, we can accept T/T, West Union or Paypal.
4. What is your warranty time
We promise 1 years warranty for all products shipped from us.
