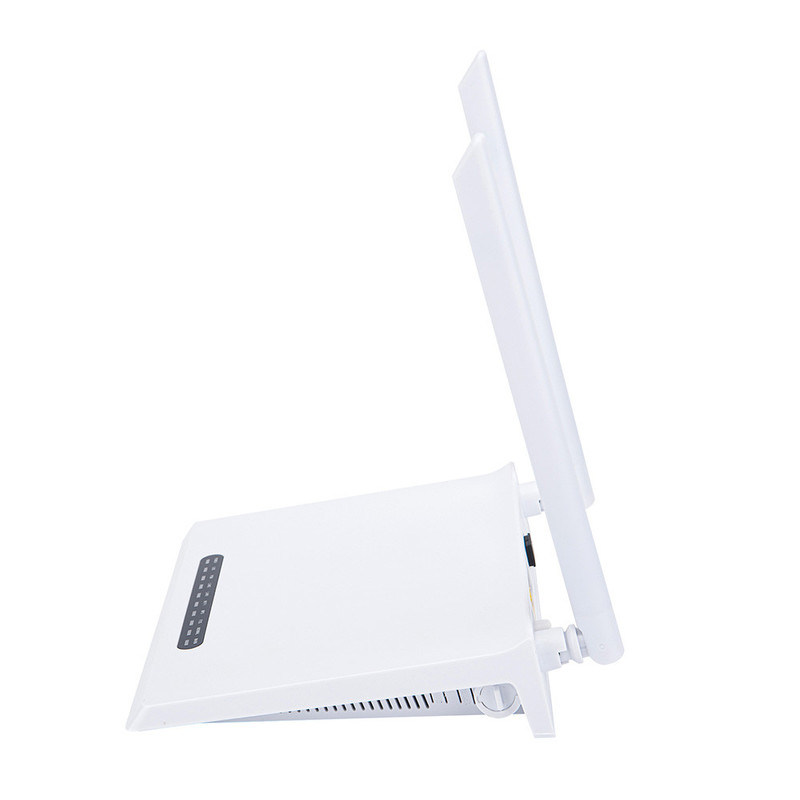

Product Details:
|
| Product Namee: | XPON Wifi ONU | Colour: | White |
|---|---|---|---|
| Material: | Plastic Casing | Ports: | XPON 1G1F+WIFI |
| Rate: | 10/100/1000Mbps | Type: | FTTx Solutions |
| Upstream: | 1310nm | Downstream: | 1490nm |
| High Light: | Plastic Casing XPON ONU,FTTx WIFI XPON ONU,FTTx Dual Band ONU |
||
XPON 1G1F+WIFI
WIFI Interface
Compliant with IEEE802.11b/g/n
Operating frequency: 2.400-2.4835GHz
support MIMO, rate up to 300Mbps
2T2R,2 external antenna 5dBi
Support: Multiple SSID
Channel:13
Modulation type: DSSS,CCK and OFDM
Encoding scheme: BPSK,QPSK,16QAM and 64QAM
Application
Specification
| Technical Item | Details |
| PON interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/UPC connector Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| LAN interface | 1x10/100/1000Mbps and 1x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
| LED | 7 LED, For Status of POWER, LOS, PON, LAN1~LAN2, WIFI, WPS |
| Push-Button | 4, for Function of Power on/off, Reset, WPS, WIFI |
| Operating condition |
Temperature : 0℃～+50℃ Humidity :10%～90%(non-condensing) |
| Storing Condition |
Temperature : -40℃～+60℃ Humidity :10%～90%(non-condensing) |
| Power supply | DC 12V/1A |
| Power Consumption | <6W |
| Net Weight | <0.4kg |
Feature
Ordering information
| Product Name | Descriptions |
| 1G1F+WIFI XPON |
10/100/1000Mbps auto adaptive Ethernet(RJ45),1 GPON interface, Plastic Casing, External power supply adapter |
Datasheet Download:9602C XPON 1G1F+WIFI-v7.pdf
