Product Details:
|
| Name: | Management Card | Application: | HA7000 EPON Rack |
|---|---|---|---|
| Manage: | WEB SNMP CLI | Support: | HA7102CS,HA7104,HA7102,HA7100 Cards |
| High Light: | FTTH EPON NMS Card,WEB SNMP CLI NMS Card,WEB SNMP CLI network management card |
||

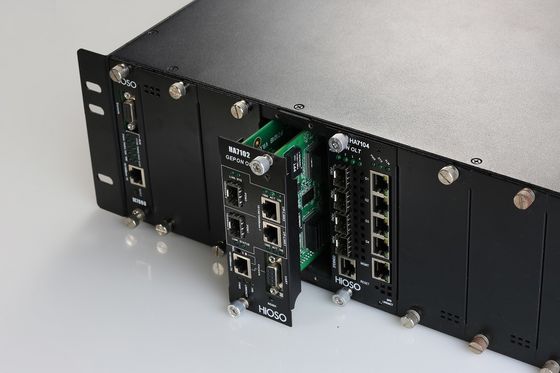

EPON NMS card for 3U EPON chassis

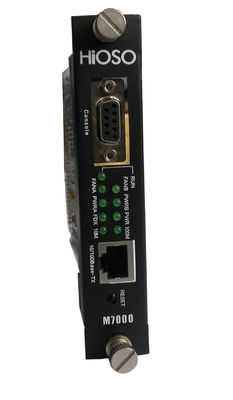

M7000 agent card works with HA7000 EPON rack, to manage the OLT cards in the rack. It supports SNMP /WEB function.
Switch
RESET reset button
Interface
Console one console port
10/100Base-TX one Ethernet port
LED
Working Environment
| Power | DC5V |
| Dimension | 102mm × 147mm× 14mm |
| Working Temperature | -10℃ ~ +55℃ |
| Storage Temp | -40℃ ~ + 70℃ |
| Humidity | 5% ~90%(non-condensing) |
| MTBF | 100000 hours |
