90 Degree Bends 24 Core Dome Fiber Optic Splice Closure For Aerial EPON OLT

90 Degree Bends 24 Core Dome Fiber Optic Splice Closure For Aerial EPON OLT
90 Degree Bends 24 Core Dome Fiber Optic Splice Closure For Aerial EPON OLT

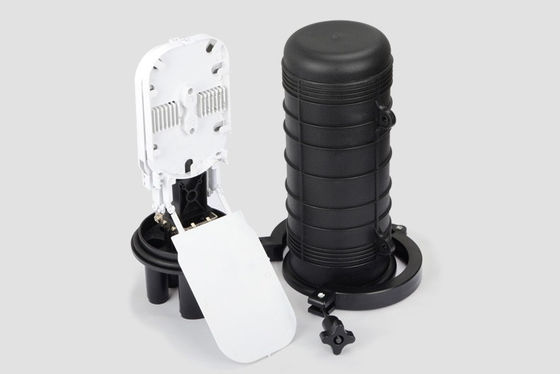

Large Image :  90 Degree Bends 24 Core Dome Fiber Optic Splice Closure For Aerial EPON OLT

Product Details:
Place of Origin: China, Guang dong
Brand Name: Hioso
Certification: CE, RoHS, CCC
Model Number: D004
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 38X24X18 CM
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/month

90 Degree Bends 24 Core Dome Fiber Optic Splice Closure For Aerial EPON OLT

Product Name: Dome Fiber Optic Splice Closure Cable Flexing: Ten 90ºbends
Operating Temperature: -20 To +80 Storage Temperature: -40 To +90
Axial Tension: 100lbs For 30minutes
High Light:

24 core Dome Fiber Optic Splice Closure


90 Degree bends Dome Fiber Optic Splice Closure


90 Degree bends fiber joint closure


D004 Dome Fiber Optic Splice Closure Apply Aerial Wall-Mounting Epon Olt




Dome Fiber Optic Splice Closure is used in aerial, wall-mounting applications, for the straight-through and branching splice of the fiber cable. The device allows for direct jointing and underground jointing. It also protects fiber optic splices from the elements while providing fast and easy no-cost re-entry.




1). Can be used in straight-through and branch application for cables of bunchy fiber and ribbon fiber.

2). Engineering plastic body filled with silicon rubber and sealed with hoop, the entry ports are sealed with mechanical screw thread.

3). Suitable for aerial duct wall -mounted or buried applications.

4). Quick open clamped dome-base design, no special tools are needed to open the closure; it can be opened repeatedly, without changing sealing material.

5). Mechanical design suitable for installing, fiber splicing storage and cable connection

6). Fiber optic splice tray with its opening angel above 90 degree, trays can be increased and reduced according to the application.




Material: PP

Size: 33.5cm(height)*18cm(diameter)

No. of Cable Inlet/Outlet: four

Number of Fibers per Tray: 12 or 24 core

Max. Number of Trays: 3

Max. Number of Fibers: 72 core( 3X 24 core)




Applicable environment temperatures: -10°C~+70°C

Air pressure: 70~106Kpa

Pull-out strength≥1000N, force to shell≥2000N , impact: 16N.m

Bending force to fiber cable: 150N (±45°), torsion force to fiber cable: 30N.m (±90°)

Tightness: no pressure drop within the enclosure pressurized to 60Kpa at 70°C for 100 hours

Insulation resistance≥2×104MΩ,resistance to 1.5KV/min without break down



Material PP
Operating Temperature -20 to +80
Storage Temperature -40 to +90
Mechanical Compression Resist deformation up to 400lbs
Mechanical Impact Withstand impact energy up to 40ft/lbs@0ºF
Axial Tension 100lbs for 30minutes
Cable Torsion Ten 90º rotations
Cable Flexing Ten 90ºbends
Hydrostatic Pressure Head Up to 20 ft/lb(~9 psi)
UV resistant 30day exposure per ASTMB117
Fungus resistant per ASTMG21
Chemical performance requirement Withstand 90days exposure to solutions of 3% sulfuric acid, 0.2N sodium hydroxide, 10% Igepal Kerosene
Electrical performance requirement Connections to cable metallic strength members withstand 1000 Acurrent for 5 seconds
Fire Resistant Central office applications
