Product Details:
|
| PON PORTS: | 2PON | Uplink Ports: | 2 1000M RJ45 Uplink Ports |
|---|---|---|---|
| Power: | DC5V 3A | Support: | Other Brands EPON ONUs |
| Management: | Teknovus Management | ||
| High Light: | MINI size FTTH OLT,DC5V FTTH OLT,DC5V olt epon 2 pon |
||
MINI 2PON EPON OLT DC5V
Overview

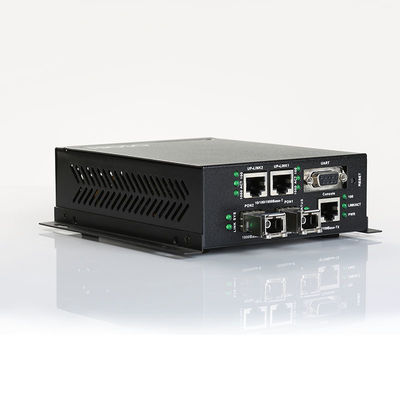

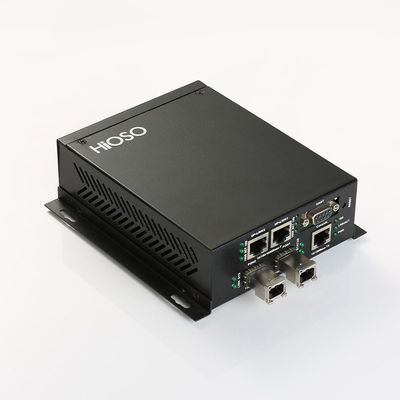

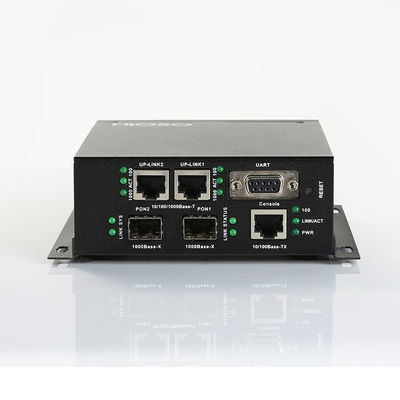

HA7002CSB OLT is a box type OLT, with compact size disign. HA7002CSB OLT offers two SFP PON ports , two uplink Gigabit ports, one SC downlink port , one console port and one RJ45 management port.. Each PON port supports 1:64 optic distribution, and maximum 64 ONUs. It applies to the China Telecom EPON standards. It works with HA400 and HA7200 series ONUs and passive optical splitter, to establish a passive optic network.
Each PON port supports 10～20km transmission distance at the base of high bandwidth, and supplies full line speed L2 transition capacity.
It is adapt to small fiber access network, such as towns, villages, which don’t have large quantity users. HA7002CBS system greatly lowers the cost to establish network and assure high bandwidth. It is also adapt to FTTH/FTTB/FTTO projects, to implement fiber to the home, such as IP phone, Ethernet data and IPTV services access.
Technical Specification
| Parameter | Specification |
| Operating wavelength | 1310(RX)/1490(TX) |
| Optical power | +2 ~ +7dBm |
| Receiving sensitivity | -27dBm |
| Max distance | 20km |
| Max splitter ratio | 1:64 |
| Capacity | 2 PON ,maximum 128 ONUs |
| MAC | 4k for an OLT module card, 32k for the whole rack |
| Uplink port | 2 10/100/1000 Ethernet RJ45 ports |
| PON port | 2 SC/SFP fiber ports |
| Control port | RJ45, RS232, to debug the device |
| MTBF | 100,000 hours |
| EPON traits | Support IEEE802.3ah |
| Support DBA with minimum1Kbps granularity adjustable | |
| Support 1Gbps up link and down link symmetrical bandwidth | |
| Support AES-128 encryption to each Logical Link Identifier | |
| Support powerful OAM function, implement telnet management, maintenance and upgrade | |
| Support auto discovery and auto register of ONU (real-time operation) | |
| Protocols supported | Support IEEE802.3, IEEE802.3u, IEEE802.3ab |
| Support IEEE802.1Q VLAN | |
| Support IEEE 802.1P QoS | |
| Management | Not support management (Teknovus software can’t save the configuration) |
Working Environment
| Parameter | Specification |
| Max optical power of the module card | DC5V 3A |
| Max power consumption | 6W |
| Operating temperature | -10～55℃ |
| Storage temperature | -40～70℃ |
| Humidity | 5%～90% non-condensing |
| Dimension | 44mm(length) ×115mm(width) ×152mm(height) |
