Product Details:
|
| Product Name: | SC Fast Connector | Radius Of Curvature: | 10mm |
|---|---|---|---|
| Fiber Height: | -10nm | Apex Offset: | 0μm |
| Angle (in Degree): | -0.3 | ||
| High Light: | 10mm curvature Radius ftth fast connector,HiOSO ftth fast connector,HiOSO fast connector fiber optic |
||

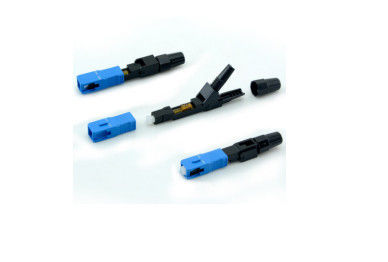

Epon Olt SC Fast Connector Low Insertion Loss High Return Loss
Description
HIOSO provides kinds of fast connectors to the industry including ST, FC, SC, FDDI, ESCON, LC, MTRJ, and MU with Ultra-polished (UPC), Angle-Polished (APC) or other polish requirement.
Feature
Application
Specification
Standard of Topography Measurement of Polished Ferrule:
| Measurement Parameter | Pass/Fail Limits (Min) | Pass/Fail Limits (Max) |
| Radius of Curvature | 10mm | 25mm |
| Fiber Height (Spherical Fit) | -50nm | 50nm |
| Fiber Height (Planar Fit) | -10nm | 200nm |
| Apex Offset | 0μm | 50μm |
| Angle (in degree) | -0.3 | 0.3 |
| Fiber Roughness (Rq) | 0nm | 10nm |
| Fiber Roughness (Ra) | 0nm | 10nm |
| Ferrule Roughness (Rq) | 0nm | 10nm |
| Ferrule Roughness (Ra) | 0nm | 10nm |
| Diameter | 125μm | 130μm |
Guaranteed Performance
| Fiber Type | SM | MM | |||
| Connector Type | SC,FC,ST, LC,E-2000, MU,D4, DIN | MTRJ | SC,FC,ST, LC,E-2000, MU,D4, DIN | MTRJ | |
| Insertion loss(Typical) | 0.2dB | 0.4dB | 0.2dB | 0.4dB | |
| Insertion loss(Max) | 0.3dB | 0.5dB | 0.3dB | 0.5dB | |
| Return Loss(Typical) | PC | 50dB | 35dB | ||
| UPC | 55dB | - | |||
| APC | 60dB | - | - | ||
| Mating Durability(500 C) | 0.2dB | ||||
| Temperature Stability | 0.3dB | ||||
| Operation Temperature | -40℃～+85℃ | ||||
| Storage Temperature | -40℃～+85℃ | ||||
Order Information
| Connector (A) | Polishing (A) | Connector (B) | Polishing (B) | Fiber Type | Cord Type | Cord dia(mm) | Length (m) |
| 1: FC 2: SC 3: ST 4: LC 5: MT-RJ |
1: PC 2: UPC 3: APC |
1: FC 2: SC 3: ST 4: LC 5: MT-RJ 6: MU 7: E2000 8: DIN 9: ESCON |
1: PC 2: UPC 3: APC |
1: SM (9/125㎛) 2: MM (50/125㎛) |
1: Simplex 2: Duplex |
1: 0.9 2: 2.0 3: 2.4 4: 3.0 5: Other |
1: 0.5 2: 1.0 3: 3.0 4: 5.0 5:other |
