Product Details:
|
| Product Name: | Fiber MMedia Converter | Ports: | 2 100M SC + 1 100M RJ45 |
|---|---|---|---|
| Rate: | 10/100M | MTBF: | 100,000 Hours |
| MAC Address: | 1k | Buffer Space: | 1M |
| High Light: | 2 100M Fiber Ports managed media converter,1 100M RJ45 Ports managed media converter,2 100M Fiber Ports network media converter |
||

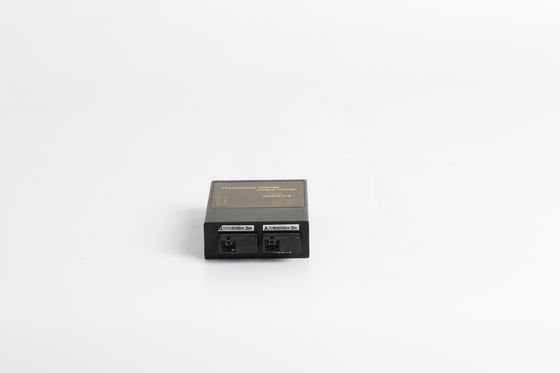

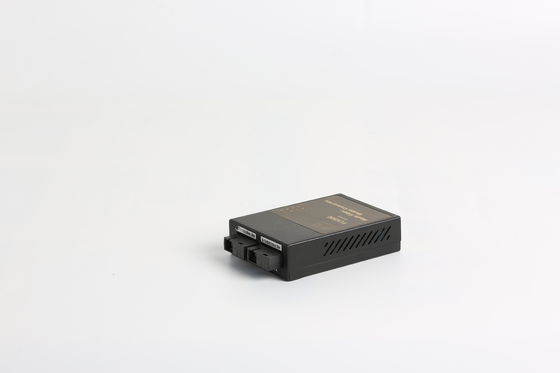

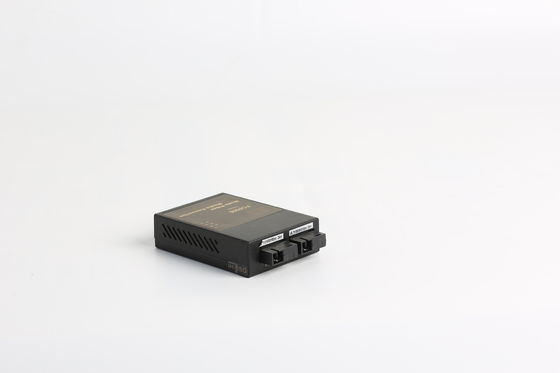

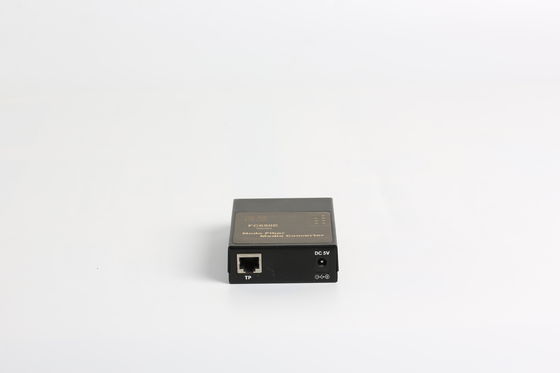

3 Ports Fiber Media Converter 2 100M Fiber Ports + 1 100M RJ45 Ports
Overview
HiOSO FC650E is a kind of 10/100Mbps adaptive fast Ethernet node type fiber media converter, with 1 10/100Mbps adaptive switch, which can implement mutual conversion between 10Base-T/100Base-TX twisted pair electrical signal and 100Base-FX optical signal. FC650F can extend the transmission distance of a network from 100m over copper wires to 120Km. This type of fiber converter supports two different types of network connection media types: 10/100Base-TX and 100Base-FX. With the application of the switching technology and the storing & forwarding technology, this kind of converter supports transmission in dual-fiber multi-mode,dual-fiber single-mode and single-fiber single-mode fibers.
Technical Specifications
Parameter |
Specifications |
| Access mode | 10/100Mbps |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance | Dual-fiber multi-mode: 2Km; Dual-fiber single-mode: 25/40/60/80/100/120Km; Single-fiber single-mode: 25/40/60/80/100Km Category-5 twisted pair: 100m |
| Port | 1 RJ45 connector, connected to STP/UTP category-5 twisted pair Two fiber port: Multi-mode - SC or ST (fiber size: 50,62.5/125μm) Single mode - SC/FC fiber port (fiber size: 9/125μm) Single-fiber single-mode - SC/FC fiber port (fiber size: 9/125μm) |
| Conversion mode | Medium conversion, storing and forwarding mode |
| MAC address table | I K |
| Buffer space | 1Mbit |
| Flow control | Full duplex state: flow control; half duplex state: back pressure mode |
| Delay | 9.6us |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| LED | POWER (power), FX LINK/ACT (fiber connection/action) FDX (FX full duplex mode), FX100 (Fiber, with a transmission rate of 100M) TP1/2/3 LINK/ACT (1/2/3-port twisted pairs connection action) TP1/2/3100 (1/2/3-port twisted pairs, with a transmission rate of 100M) |
| Power | DC5V/1A (external) |
| Dimensions | 26mm(Height)*70mm(Width)*98mm(Depth) (external power) |
