Product Details:
|
| Item: | Din Rail Switch | Wavelength: | 850~1550 Nm |
|---|---|---|---|
| Mounting: | Din-rail/wall Mounting | Distance: | CAT5 : 100m |
| Support: | DHCP, ACL | MTBF: | 10000h |
| High Light: | 4 1000M Rj45 din rail mount network switch,1000M Combo Ports din rail mount network switch,4 1000M Rj45 ethernet switch din |
||

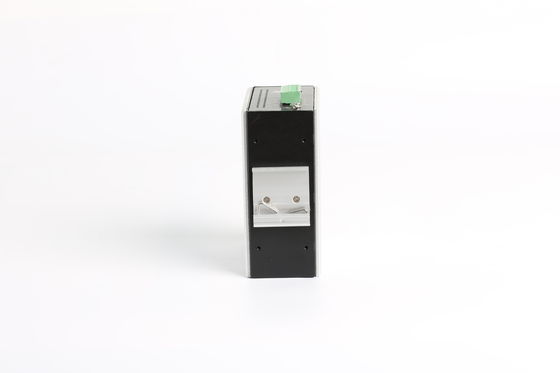

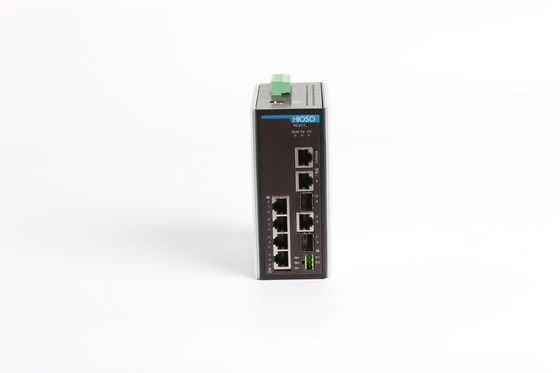

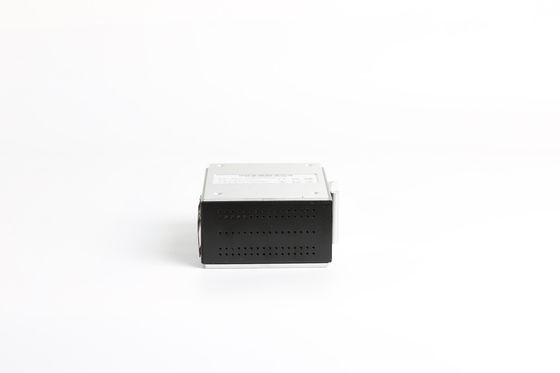

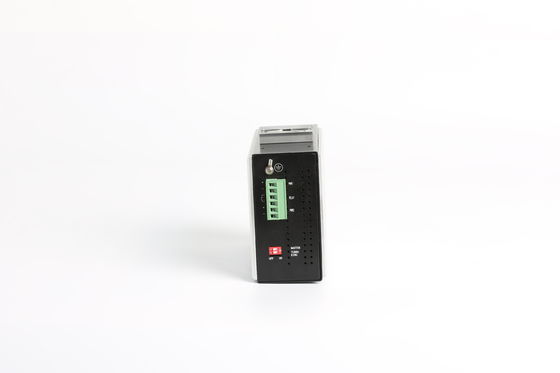

6 Ports Din Rail Ethernet Switch 4 1000M Rj45 + 2 1000M Combo Ports
Character
Technical Specification
| Parameter | Specification |
| Access mode | 10/100/1000Mbps |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
| Wavelength | 850nm/1310nm/1490nm/1550nm |
| Port |
8 RJ45 ports: 10/100M 2 1000M Combo: 1Gbps, 100M/1000M SFP or 10/100/1000M Copper SFP |
| Conversion mode | Medium conversion, storing and forwarding/straight-through |
| MAC address table | 8K |
| Buffer space | 1Mbit |
| Flow control | Full duplex state: flow control; half-duplex state: back pressure mode |
| Delay | 9.6us |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| LED | P1 (power supply P1 connected) ,P2(power supply P2 connected),SYS (system) |
| Power | 12/24/48 VDC,18 ~ 30VAC input |
| Power consumption | 5W |
| Operating temperature | Normal:-10~60°C ;-T(wide range temperature: -40~75°C |
| Dimensions | 135mm×52mm×105mm (height * width * depth) |
