Product Details:
|
| Highlight: | 1000M FX 5 port ethernet switch,10/100/1000M RJ45 5 port ethernet switch,10/100/1000M RJ45 din rail switch mount |
||
|---|---|---|---|
Overview

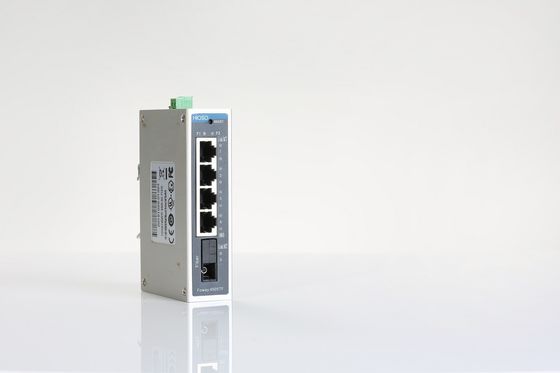

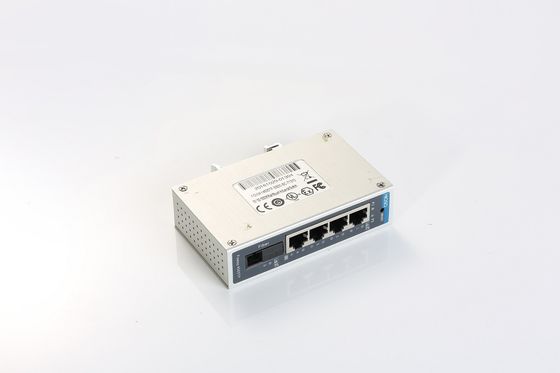

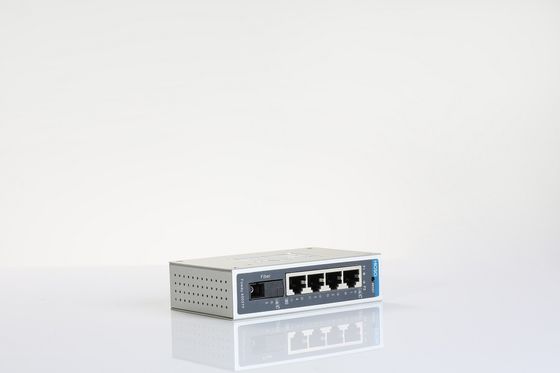

Foway 4505TF series 5 ports Din Rail Type Industrial Ethernet switch , supply 5 10/100/1000M RJ45 ports and 1 1000M fiber uplink port; provide 2 RPS (Redundant power supply) input : 10 ~ 60 VDC and 18 ~ 30VAC,support to connect DC power and AC power at the same time.
Character
l Support 10K byte long frame data packet transmission
l DIP switch supports to enabled/disable broadcast storm function
l RJ45 ports adopt anti-high voltage circuit, strengthen the lightning protection and anti-interference ability;IP30 metal case; Support din rail or wall mounting installation
Technical Specification
| Parameter | Specification |
| Access mode | 10/100/1000Mbps |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet IEEE802.1d Spanning Tree Protocol ,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1p Qos,,IEEE802.3ad Trunk, IEEE 802.3x Flow Control |
| Wavelength | 850nm/1310nm/1490nm/1550nm |
| Transmission distance |
1000M fiber:multi-mode: 220m (fiber size 62.5/125μm)/550m (fiber size 50/125μm) Single-mode:10/20/40/60/80/100/120Km;Single-fiber:10/20/40/60/80/100/120Km; Category-5 twisted pairs: 100m |
| Port | 4 RJ45 ports: 10/100/1000M; 1 1000M FX port: SC |
| Conversion mode | Medium conversion, storing and forwarding/straight-through |
| MAC address table | 4K |
| Buffer space | 2Mbit |
| Flow control | Full duplex state: flow control; half-duplex state: back pressure mode |
| Delay | 1us |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| LED | FX Link(fiber link/action),TP1/2/3/4 1000M (twisted pair rate 1000M) ,TP1/2/3/4 Link (twisted pair link/act;P1 (power supply P1 connected) ,P2(power supply P2 connected) |
| Power | 12/24/48 VDC,18 ~ 30VAC input |
| Power consumption | 4W |
| Operating temperature | Normal:-10~60°C ;-T(wide range temperature: -40~75°C |
| Operating humidity | 5%~90% |
| Storage temperature | -40~85°C |
| Storage humidity | 5%~95% (non-condensing) |
| Installation | Din rail installation, wall mounting installation |
| Dimensions | 115mm×30mm×70mm (height * width * depth) |
Order information
| No | Product code | NMS | Ports | Power |
| 1 | Foway4505TF-M2-SC | No | 4GE+1 1000M multi-mode fiber port SC | DC12-48V |
| 2 | Foway4505TF-S20-SC | No | 4GE+1 1000M dual-fiber single-mode 20km | DC12-48V |
| 3 | Foway4505TF-S220-SC-T1310 | No | 4GE+1 1000M single-fiber single-mode 20km | DC12-48V |
| 4 | Foway4505TFM-M2-SC | YES | 4GE+1 1000M multi-mode fiber port | DC12-48V |
| 5 | Foway4505TFM-S20-SC | YES | 4GE+1 1000M dual-fiber single-mode 20km | DC12-48V |
| 6 | Foway4505TFM-SS20-SC-T1310 | YES | 4GE+1 1000M single-fiber single-mode 20km | DC12-48V |
