Product Details:
|
Item: | Din Rail Switch | Support: | Two Wide Voltage |
---|---|---|---|
Backplane Bandwidth: | 22G | Mac Address: | 16K |
Working: | -10℃~60℃ | Storage: | -40℃~85℃ |
High Light: | CCC Certified Din Rail Ethernet Switch,DC12V Din Rail Ethernet Switch,CCC Certified 10 port ethernet switch |

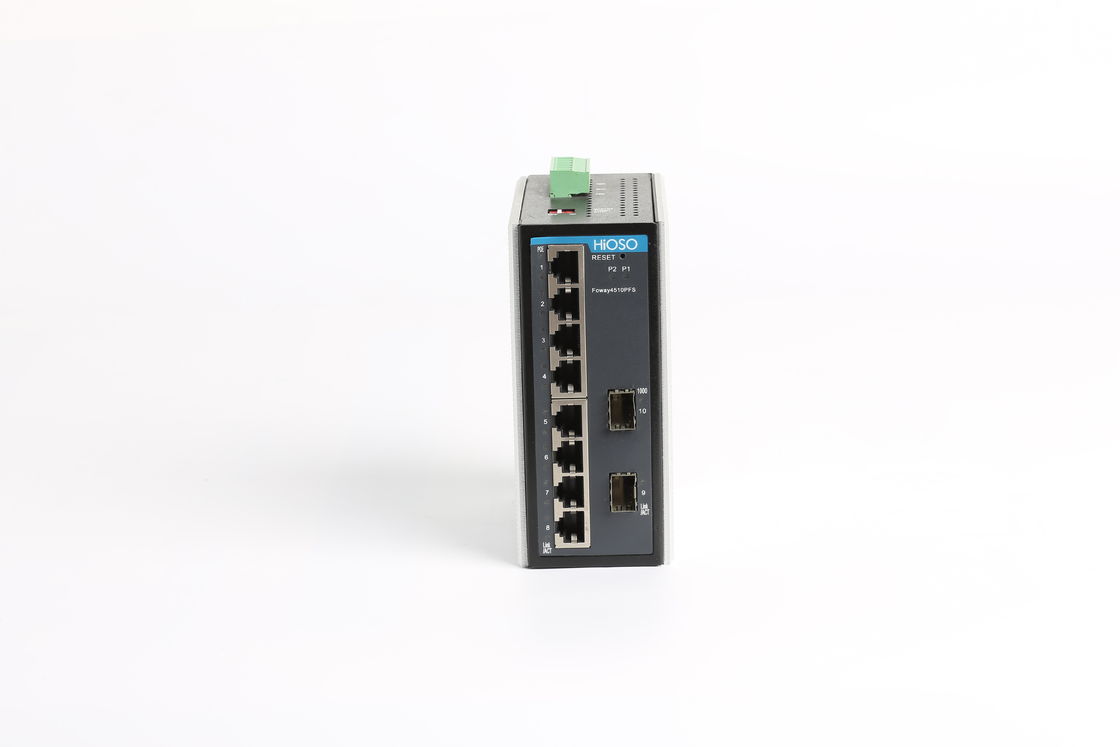

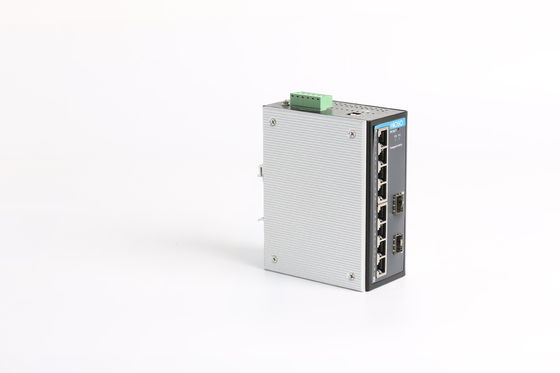

10 Port Din Rail Ethernet Switch 8 1000M PoE + 2 1000M SFP Ports Poe Switch
Character
Provide two wide voltage 10 ~ 60 VDC input; provide reverse connection protection
Support up to 10kbyte ultra long frame packet transmission, 22G backplane bandwidth
Each RJ45 electric port is added with anti high voltage circuit to improve the ability of lightning protection and anti high voltage interference

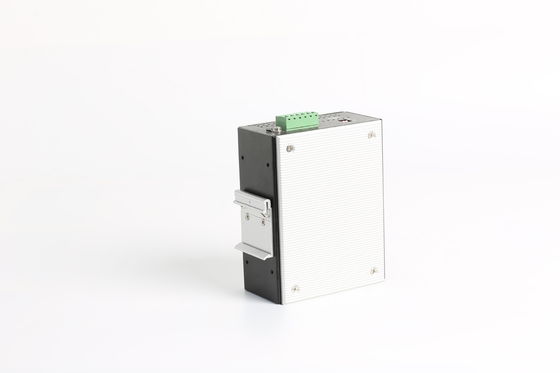

With a strong IP40 metal shell and supports rail or wall mounting
Technical Specification
Parameter | Specification |
Transmission | 10/100/1000Mbps |
Port |
8 RJ45 ports: 10/100/1000M 2 1000M Combo: 1Gbps |
Conversion mode | Medium conversion, storing and forwarding/straight-through |
MAC address table | 16K |
Buffer space | 2Mbit |
Flow control | Full duplex state: flow control; half-duplex state: back pressure mode |
Delay | 1us |
Bit error rate | <1/1000000000 |
MTBF | 100,000 hours |
LED | FX Link (fiber link/action), TP1/2/3/4/5/67/8 100M/1000M (twisted pair rate) , TP1/2/3/4/5/6/7/8 Link (twisted pair link/action);P1 (power supply P1 connected) ,P2(power supply P2 connected),SYS (system) |
Power | 12/24/48 VDC,18 ~ 30VAC input |
Power consumption | 6.5W |
Installation | Din rail installation, wall mounting installation |
Dimensions | 135mm×52mm×105mm (height * width * depth) |
