Product Details:
|
| Item: | Din Rail Switch | Support: | DIP Switch |
|---|---|---|---|
| Power1: | DC 12/24/48V | Power2: | AC 10~ 60 V |
| Working: | -40 ~ 85°C | Storage: | -40℃～85℃ |
| High Light: | 8 1000M Rj45 ethernet switch din rail mount,1000M SFP Ports ethernet switch din rail mount,SFP Ports industrial ethernet switch din rail mount |
||

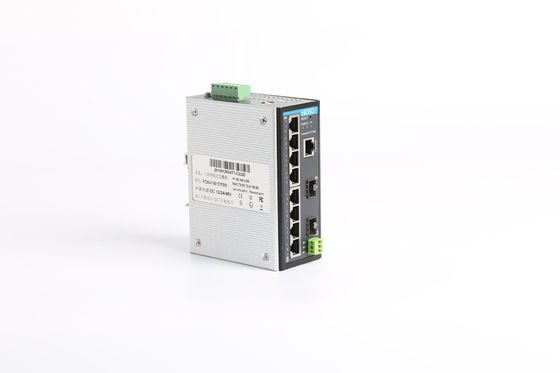

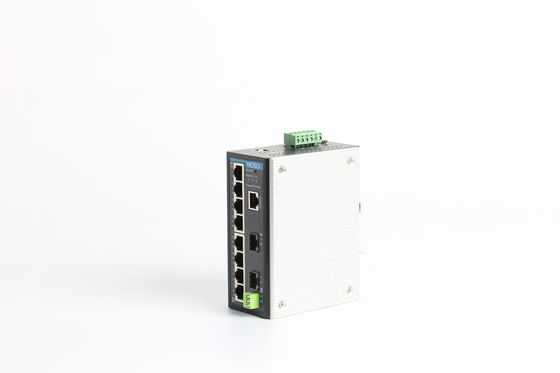

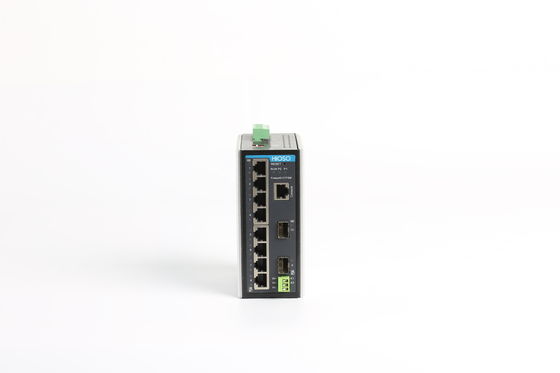

10 Ports Din Rail Ethernet Switch 8 1000M Rj45 + 2 1000M Sfp Ports
Character
Provide two wide voltage 10 ~ 60 VDC input; provide reverse connection protection
Support Web management, CLI and SNMPv1 / V2 / V3 management
Support VLAN, STP / RSTP fast spanning tree, trunk port aggregation, IGMP multicast
Support RSR (rapid super ring) redundant ring network technology
Support up to 10kbyte ultra long frame packet transmission, 22G backplane bandwidth
Each RJ45 electric port is added with anti high voltage circuit to improve the ability of lightning protection and anti high voltage interference
Technical Specification
| Parameter | Specification |
| Access mode | 10/100/1000Mbps |
| Port |
8 RJ45 ports: 10/100/1000M 2 1000M SFP: 1Gbps, 10/100M/1000M SFP or 10/100/1000M Copper SFP |
| Conversion mode | Medium conversion, storing and forwarding/straight-through |
| MAC address table | 16K |
| Buffer space | 2Mbit |
| Flow control | Full duplex state: flow control; half-duplex state: back pressure mode |
| Delay | 1us |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| LED | FX Link (fiber link/action), TP1/2/3/4/5/67/8 100M/1000M (twisted pair rate) , TP1/2/3/4/5/6/7/8 Link (twisted pair link/action);P1 (power supply P1 connected) ,P2(power supply P2 connected),SYS (system) |
| Power | 12/24/48 VDC,18 ~ 30VAC input |
| Power consumption | 6.5W |
| Installation | Din rail installation, wall mounting installation |
| Dimensions | 135mm×52mm×105mm (height * width * depth) |
