Product Details:
|
| Name: | Din Rail Switch | Ports: | 8 FE Ports |
|---|---|---|---|
| Transmisson Rate: | 100Mbps | MTBF: | 100,000 Hours |
| MAC: | 4K | Delay: | 9.6us |
| High Light: | 10/100M RJ45 Ports poe switch din rail mount,CCC Approval poe switch din rail mount,10/100M RJ45 Ports din rail mount network switch |
||

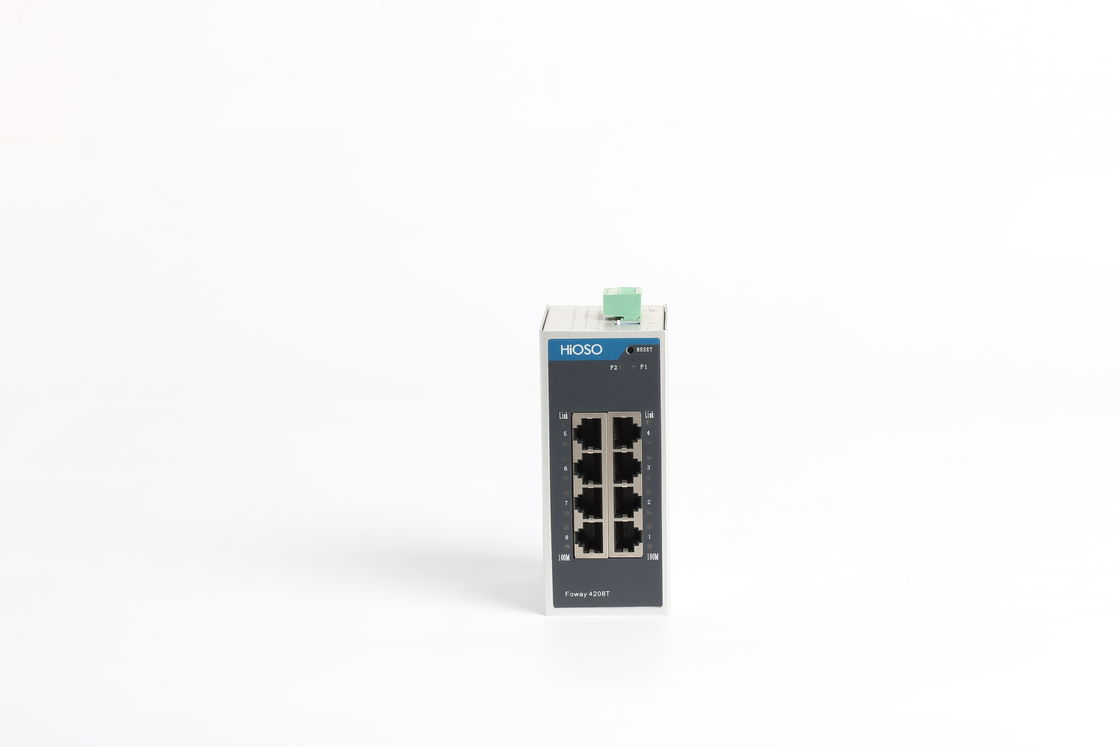

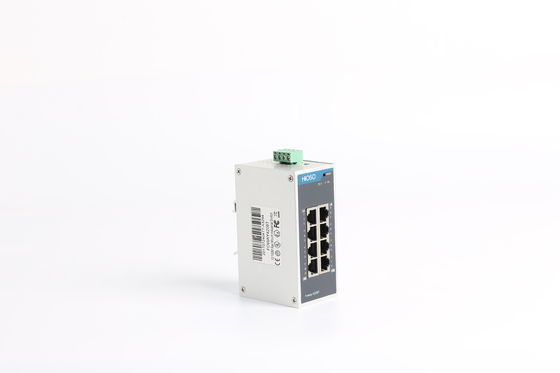

8 Ports Din Rail Ethernet Switch Supply 8 10 / 100M RJ45 Ports
Overview
Foway 4208T series 8 ports Din Rail Type Industrial Ethernet switch , supply 8 10/100M RJ45 ports; provide 2 RPS (Redundant power supply) input : 10 ~ 60 VDC and 18 ~ 30VAC; support to connect DC power and AC power at the same time.
Foway 4208T series switches support to work under the -40 ~ 75°C , With IP30 environmental protection grade, suitable for most industrial applications. Foway 4205TF series supply DIP switch , support to enable or disable broadcast storm protection,provide another flexible solutions for different industrial applications.
Charater
| Parameter | Specification |
| Access mode | 10/100Mbps |
| Transmission distance | Category-5 twisted pairs: 100m |
| Port | 8 10/100M RJ45 ports: Connected to STP/UTP category-5 twisted pairs |
| Conversion mode | Medium conversion, storing and forwarding/straight-through |
| MAC address table | 4K |
| Buffer space | 1Mbit |
| Flow control | Full duplex state: flow control; half-duplex state: back pressure mode |
| Delay | 9.6us |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| LED | 100M (twisted pair rate 100M), TP1/2/3/4/5/6/7/8 Link(twisted pair link/action); P1 (power supply P1 connected), P2(power supply P2 connected) |
| Power | 12/24/48 VDC,18 ~ 30VAC input |
| Power consumption | 3W |
| Operating temperature | Normal:-10~60°C ;-T(wide temperature range): -40~75°C |
| Installation | Din rail installation, wall mounting installation |
| Dimensions | 115mm×50mm×70mm (height * width * depth) |
