Product Details:
|
| Product Name: | Fiber Media Converter | Type: | FTTx Solutions, Converter |
|---|---|---|---|
| Ports: | 4FE+2FX | Power: | DC12V |
| Color: | Grey | Package Type: | Standard Packing |
| Highlight: | 100M RJ45 Ports Fiber Media Converter,2 100M SC Fiber Media Converter,2 100M SC gigabit media converter |
||

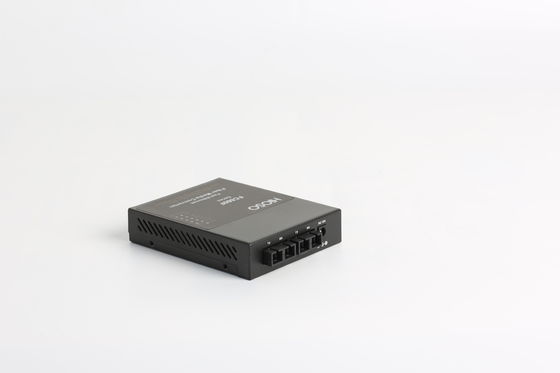

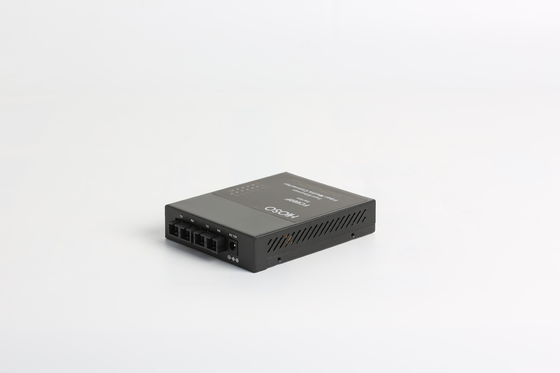

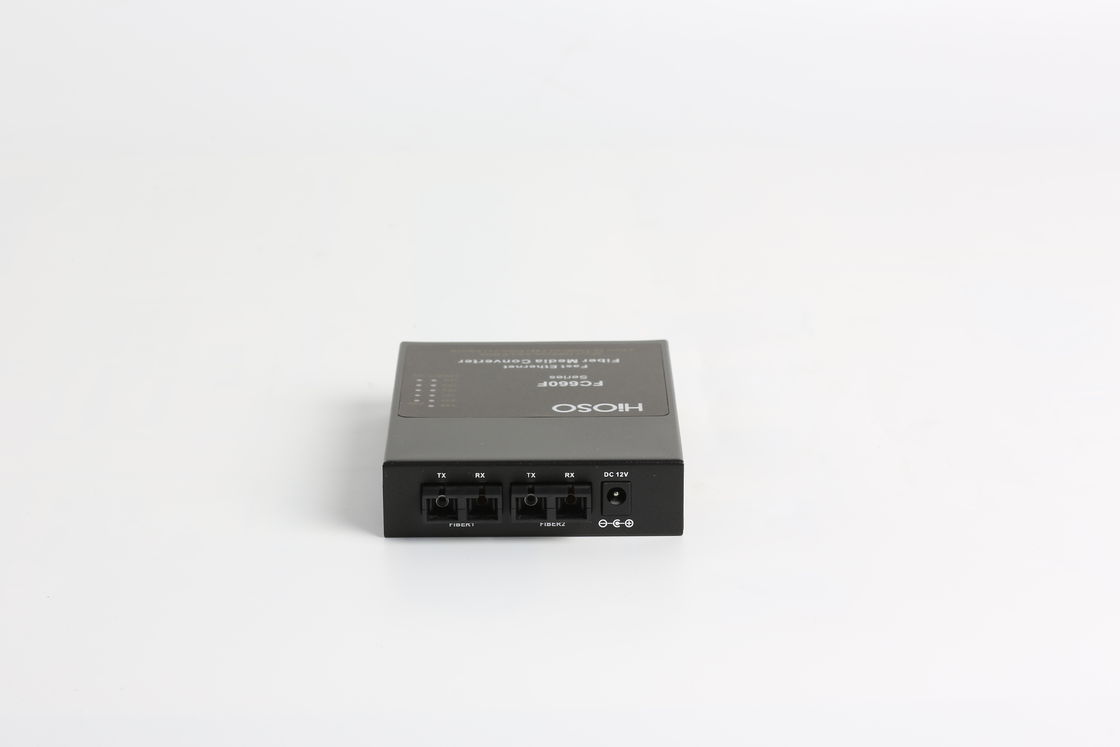

6 Ports Converter 2 100M SC + 4 100M RJ45 Ports Fiber Media Converter
Overview
FC660F Fiber Media Converter supports 2 10/100M fiber ports and 4 10/100M RJ45 ports. It can implement mutual conversion between 10Base-T/100Base-TX twisted pair electrical signal and 100Base-FX optical signal. FC660F can extend the transmission distance of a network from 100m over copper wires to 120Km. With the application of the switching technology and the storing & forwarding technology, this kind of converter supports transmission in dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fibers.
Feature
Technical Specification
|
Parameter |
Specifications |
|
Access mode |
10/100Mbps |
|
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control, IEEE802.1q VLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
Dual-fiber single-mode: 25/40/60/80/100/120Km |
|
Port |

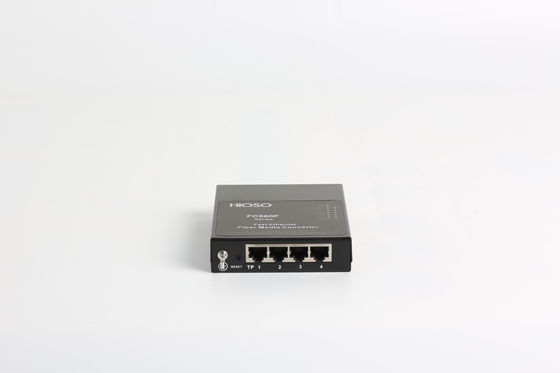

4 RJ45 ports, connected to STP/UTP category-5 twisted pair |
|
Conversion mode |
Medium conversion, storing and forwarding mode |
|
MAC address table |
2 K |
|
Buffer space |
1Mbit |
|
Flow control |
Full duplex state: flow control; half duplex state: back pressure mode |
|
Delay |
9.6us |
|
Bit error rate |
<1/1000000000 |
|
MTBF |
100,000 hours |
|
LED |
POWER (power), FX1/FX2 LINK/ACT (fiber connection/action) |
|
Power |
DC5V |
|
Power consumption |
3.5W |
|
Operating temperature |
-10~55℃ |
|
Operating humidity |
5%~90% |
|
Storage temperature |
-40~80℃ |
|
Storage humidity |
5%~90% (non-condensing) |
|
Dimensions |
26mm(Height)*96mm(Width)*120mm(Depth) (external power) |
