Product Details:
|
| Item: | Ethernet Industrial Switch | Power Supply: | DC12/24/48V |
|---|---|---|---|
| Mounting: | Din-rail/wall Mounting | Working Temperature: | -40 ~ 75°C |
| DIP Switch: | Support | Protection Grade: | IP30 |
| High Light: | IP30 Level Din Rail Ethernet Switch,HiOSO Din Rail Ethernet Switch,HiOSO din mount ethernet switch |
||

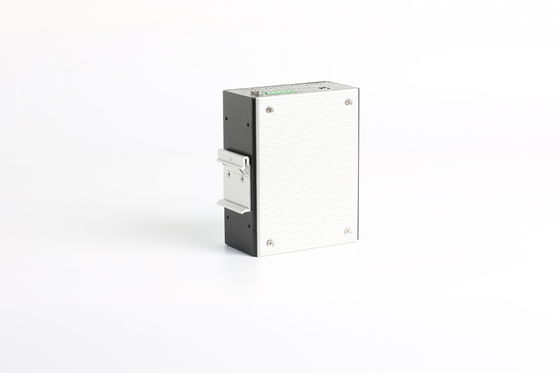

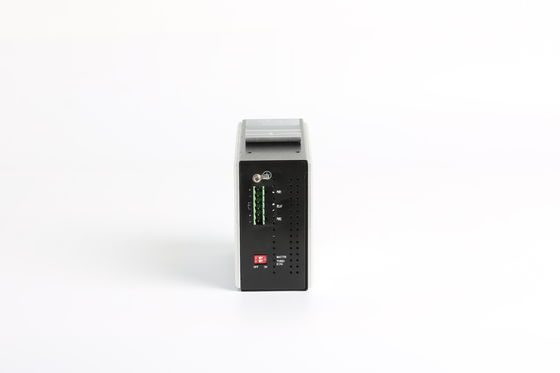

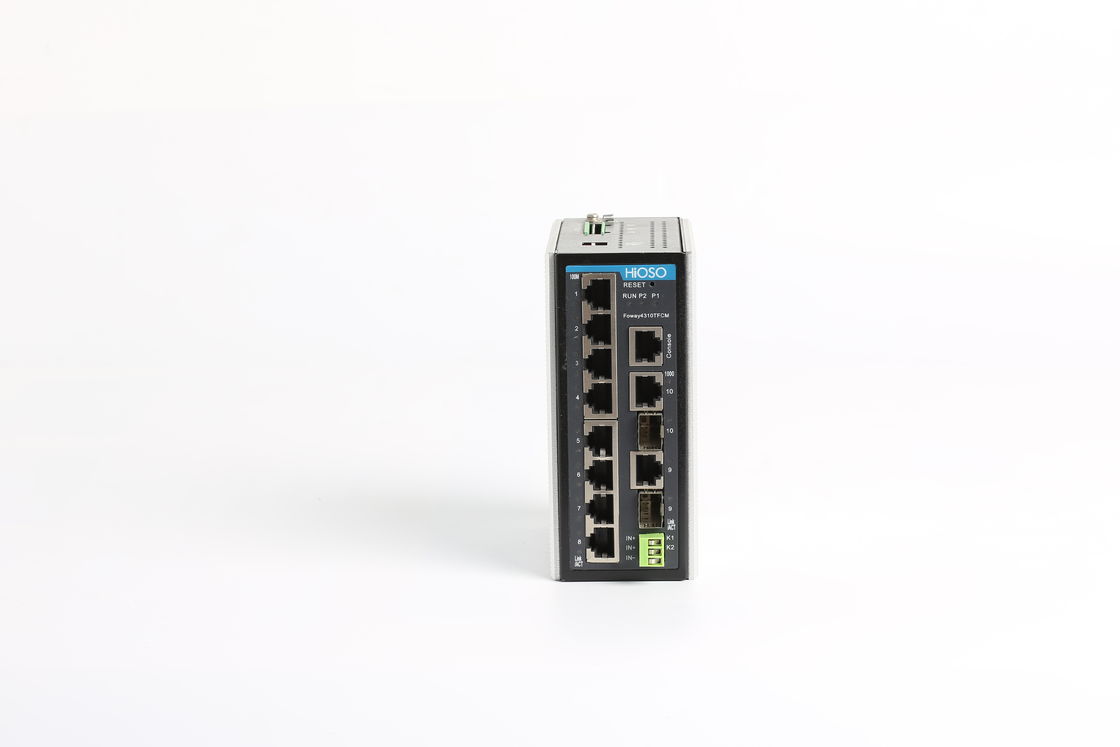

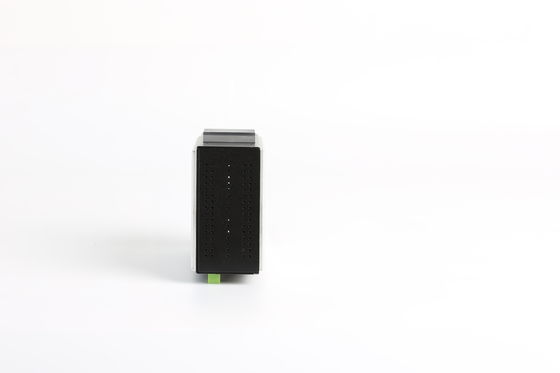

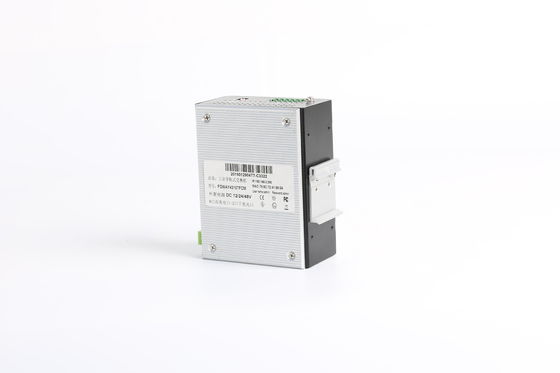

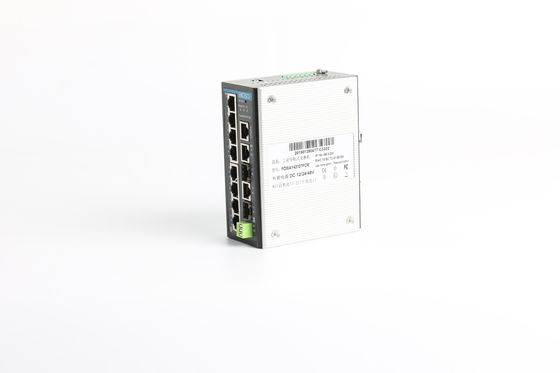

Din Rail Ethernet Switch 8 100M Rj45 Ports + 2 1000M Combo Ports
Overview
Foway 4310TFCM series 10 ports Din Rail Type Industrial Ethernet switch , supply 8 10/100M RJ45 ports and 2 Combo ports(100/1000M SFP and 10/100/1000M RJ45); support WEB management; provide 2 Redundant power supply input : 10 ~ 60 VDC and 18 ~ 30VAC; support to connect DC power and AC power at the same time.
Character
Technical Specification
| Parameter | Specification |
| Access mode | 10/100/1000Mbps |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,IEEE802.1d Spanning Tree Protocol ,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1p Qos,,IEEE802.3ad Trunk, IEEE 802.3x Flow Control |
| Wavelength | 850nm/1310nm/1490nm/1550nm |
| Transmission distance |
1000M fiber:multi-mode: 220m (fiber size 62.5/125μm)/550m (fiber size 50/125μm) Single-mode:10/20/40/60/80/100/120Km;Single-fiber:10/20/40/60/80/100/120Km; 100M SFP Dual-fiber: 2Km; single-mode: 25/40/60/80/100/120Km; single-fiber: 25/40/60/80/100Km Category-5 twisted pairs: 100m |
| Port |
8 RJ45 ports: 10/100M 2 1000M Combo: 1Gbps, 100M/1000M SFP or 10/100/1000M Copper SFP |
| Conversion mode | Medium conversion, storing and forwarding/straight-through |
| MAC address table | 8K |
| Buffer space | 1Mbit |
| Flow control | Full duplex state: flow control; half-duplex state: back pressure mode |
| Delay | 9.6us |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| LED | FX Link (fiber link/action), TP1/2/3/4/5/67/8 100M/1000M (twisted pair rate) , TP1/2/3/4/5/6/7/8 Link (twisted pair link/action);P1 (power supply P1 connected) ,P2(power supply P2 connected),SYS (system) |
| Power | 12/24/48 VDC,18 ~ 30VAC input |
| Power consumption | 5W |
| Operating temperature | Normal:-10~60°C ;-T(wide range temperature: -40~75°C |
| Operating humidity | 5%~90% |
| Storage temperature | -40~85°C |
| Storage humidity | 5%~95% (non-condensing) |
| Installation | Din rail installation, wall mounting installation |
| Dimensions | 135mm×59mm×105mm (height * width * depth) |
Order information
| No | Product code | Management | Ports | Power |
| 1 | Foway4310TFC | No | 8 10/100M RJ45 ports +2 1000M Combo | DC12-48V |
| 2 | Foway4310TFCM | Support | 8 10/100M RJ45 ports +2 1000M Combo |
DC12-48V |
