Product Details:
|
| Item Name: | Ethernet Switch | Max. Current: | AC240W |
|---|---|---|---|
| Max. Voltage: | DC48V | Transmisson Rate: | 1000Mbps |
| Operating Temperature: | -10-60℃ | Storage Temperature: | -40-80℃ |
| High Light: | 4 Rj45 Ports din mount ethernet switch,Gigabit din mount ethernet switch,4 Rj45 Ports din rail managed switch |
||

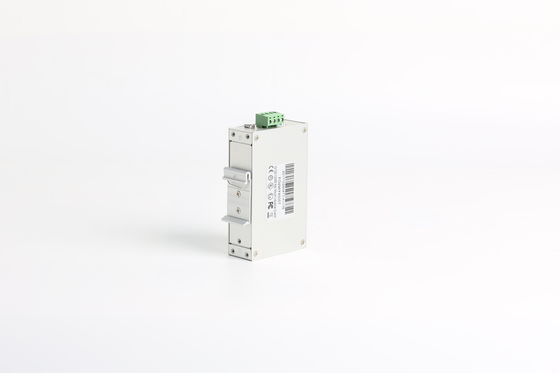

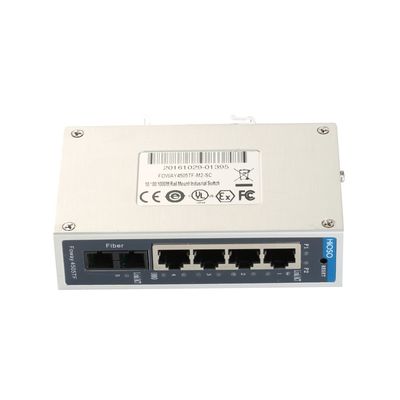

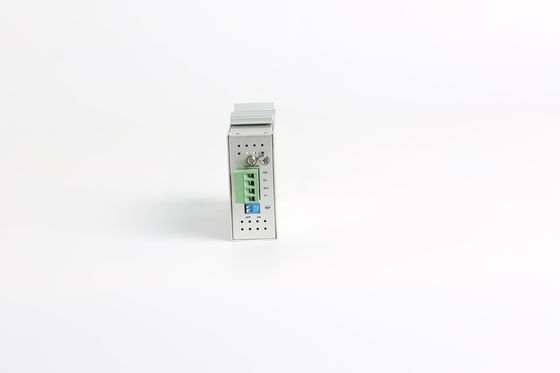

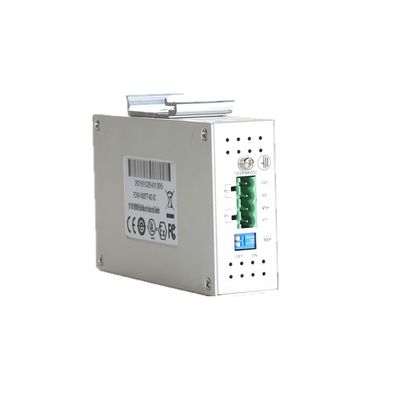

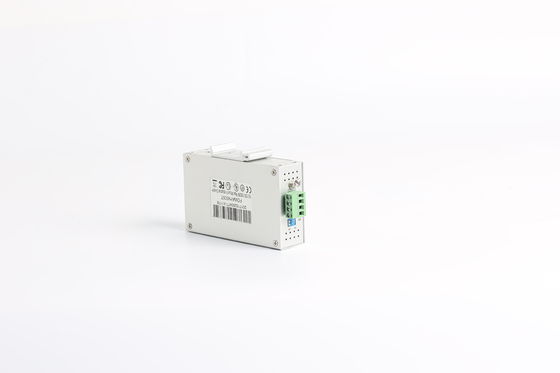

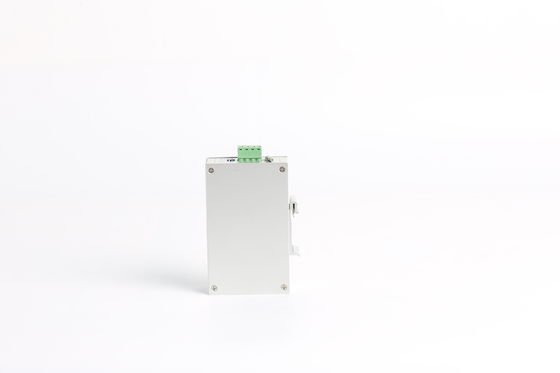

Gigabit 5 Ports Din Rail Ethernet Switch 4 Rj45 Ports + 1 Fiber Port
Character
Technical Specification
|
Parameter |
Specification |
|
Access mode |
10/100/1000Mbps |
|
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet IEEE802.1d Spanning Tree Protocol ,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1p Qos,,IEEE802.3ad Trunk, IEEE 802.3x Flow Control |
|
Wavelength |
850nm/1310nm/1490nm/1550nm |
|
Transmission distance |
1000M fiber:multi-mode: 220m (fiber size 62.5/125μm)/550m (fiber size 50/125μm) Single-mode:10/20/40/60/80/100/120Km;Single-fiber:10/20/40/60/80/100/120Km; Category-5 twisted pairs: 100m |
|
Port |
4 RJ45 ports: 10/100/1000M; 1 1000M FX port: SC |
|
Conversion mode |
Medium conversion, storing and forwarding/straight-through |
|
MAC address table |
4K |
|
Buffer space |
2Mbit |
|
Flow control |
Full duplex state: flow control; half-duplex state: back pressure mode |
|
Delay |
1us |
|
Bit error rate |
<1/1000000000 |
|
MTBF |
100,000 hours |
|
LED |
FX Link(fiber link/action),TP1/2/3/4 1000M (twisted pair rate 1000M) ,TP1/2/3/4 Link (twisted pair link/act;P1 (power supply P1 connected) ,P2(power supply P2 connected) |
|
Power |
12/24/48 VDC,18 ~ 30VAC input |
|
Power consumption |
4W |
|
Operating temperature |
Normal:-10~60°C ;-T(wide range temperature: -40~75°C |
|
Operating humidity |
5%~90% |
|
Storage temperature |
-40~85°C |
|
Storage humidity |
5%~95% (non-condensing) |
|
Installation |
Din rail installation, wall mounting installation |
|
Dimensions |
115mm×30mm×70mm (height * width * depth) |
