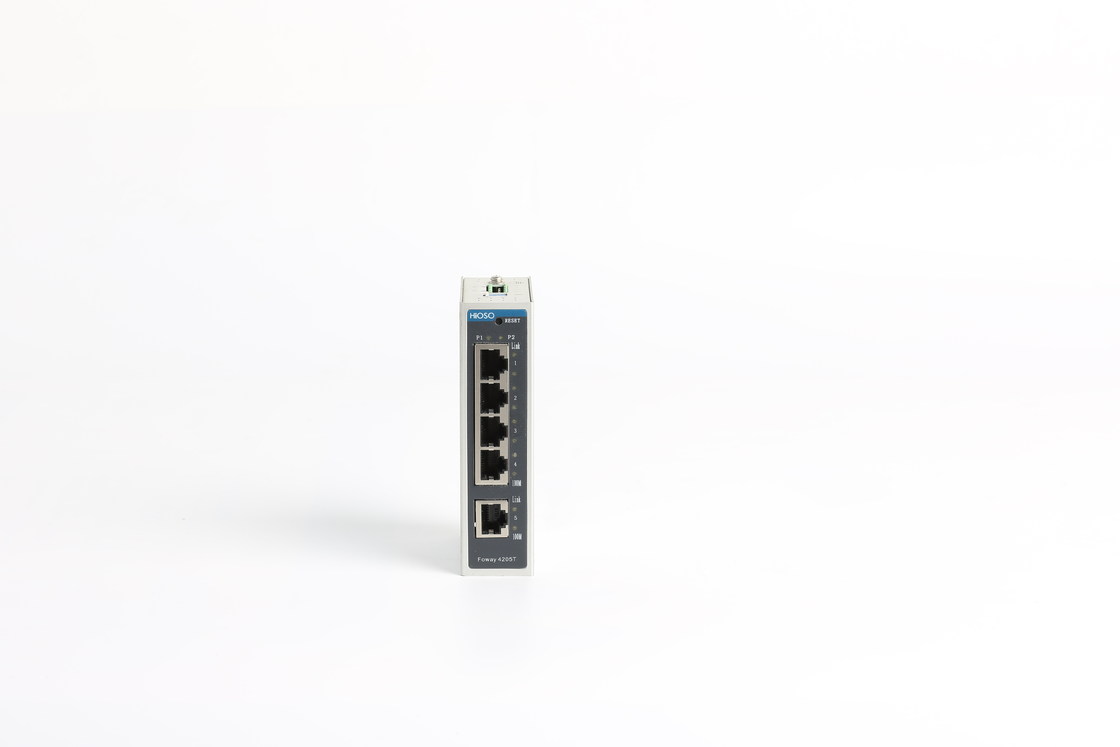

Product Details:
|
| Name: | Din Rail Switch | Ports: | 5 10/100M Rj45 Ports |
|---|---|---|---|
| Transmisson Rate: | 100Mbps | MAC Address: | 8K |
| Black Casing: | Metal | Consumption: | 3W |
| High Light: | 5 Ports 10/100M panel mount ethernet switch,IP30 Metal Case panel mount ethernet switch,5 Ports 10/100M poe switch din rail mount |
||
Character
l 10 / 100M adaptive RJ45 ports, support MDI and MDI-X auto recognition
l Provide 2 RPS (Redundant power supply) input : 10~ 60 VDC and 18 ~ 30VAC,with reverse connection
l Support maximum 1552 byte long frame data packet transmission
l DIP switch supports to enabled/disable broadcast storm function
l Each RJ45 port adopts anti-high voltage circuit, strengthen the lightning protection and anti-interference ability
l With IP30 metal case; support din rail or wall mounting installation
| Parameter | Specification |
| Access mode | 10/100Mbps |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet,IEEE802.1d Spanning Tree Protocol ,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q vlan,IEEE802.1p Qos,,IEEE802.3ad Trunk, IEEE 802.3x Flow Control |
| Transmission distance | Category-5 twisted pairs: 100m |
| Port | 5 10/100M RJ45 ports: Connected to STP/UTP category-5 twisted pairs |
| Conversion mode | Medium conversion, storing and forwarding/straight-through |
| MAC address table | 1K |
| Buffer space | 1Mbit |
| Flow control | Full duplex state: flow control; half-duplex state: back pressure mode |
| Delay | 9.6us |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| LED | 100M (twisted pair rate 100M), TP1/2/3/4/5 Link(twisted pair link/action); P1 (power supply P1 connected), P2(power supply P2 connected) |
| Power | 12/24/48 VDC,18 ~ 30VAC input |
| Power consumption | 3W |
| Operating temperature | Normal:-10~60°C ;-T(wide temperature range): -40~75°C |
| Operating humidity | 5%~90% |
| Storage temperature | -40~85°C |
| Storage humidity | 5%~95% (non-condensing) |
| Installation | Din rail installation, wall mounting installation |
| Dimensions | 115mm×30mm×70mm (height * width * depth) |
