Product Details:
|
| Use: | FTTx Solutions | Pon Ports: | 8 Epon Ports |
|---|---|---|---|
| Pon Max Splitting: | 1:64 | Warranty: | 3 Years |
| Max Distance: | 20KM | Mak: | 8K |
| High Light: | 1U 8PON EPON OLT,10G Uplink EPON OLT,FTTX Solution 10g epon olt |
||

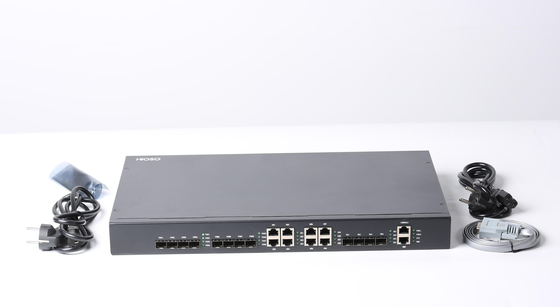

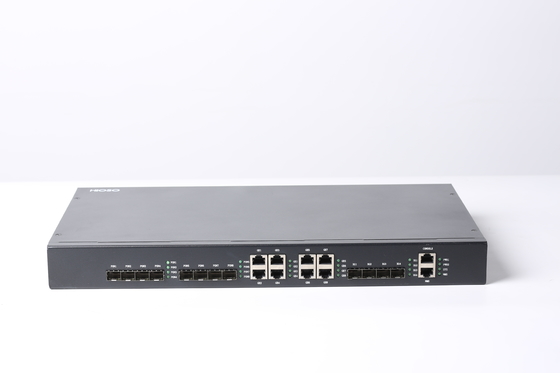

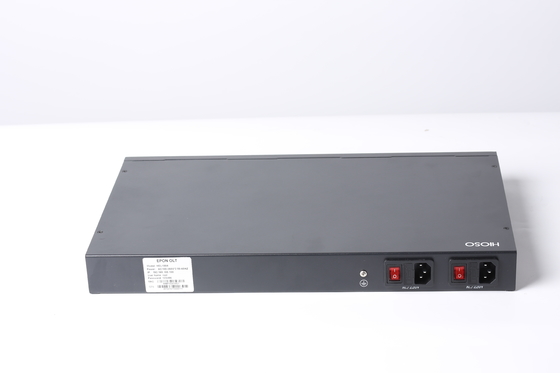

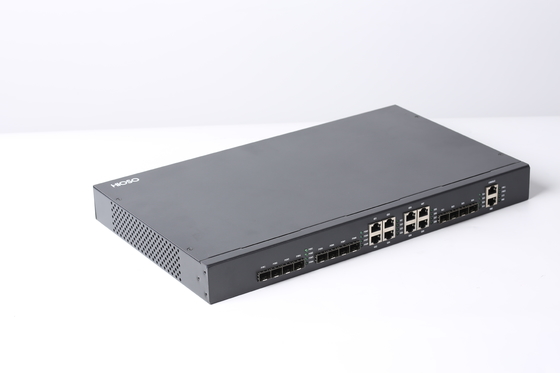

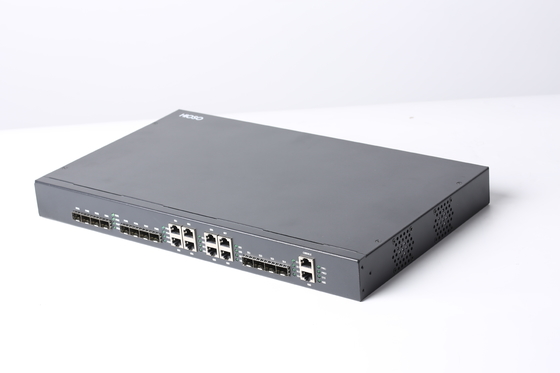

HA7308CX 1U 8PON 10G uplink EPON OLT
HA7308CX EPON OLT is a high integration and medium capacity cassette EPON OLT designed for operators’ access and enterprise campus network. HA7308C provides 8 downlink 1.25G EPON ports, 8 * GE LAN Ethernet ports and 4 *10G SFP for uplink. The height is only 1U for easy installation and space saving. It adopts the advanced technology, offering efficient EPON solution. Moreover, it saves a lot cost for operators for it can support different ONU hybrid networking.
It follows the IEEE802.3 ah technical standards and meets the EPON OLT equipment requirements of YD/T 1945-2006 Technical requirements for access network——based on Ethernet Passive Optical Network (EPON) and China telecom ctc standard.
HA7308CX EPON OLT series possesses excellent openness, large capacity, high reliability, complete software function, efficient bandwidth utilization and Ethernet business support ability, widely applied to the operator front-end network coverage, private network construction, enterprise campus access and other access network construction.
Feature
Datasheet download: HA7308CX-10G UPLINK.pdf
Technical Specification
| Parameter | Specification |
| 8 * PON port, 8 * GE, 4*10G SFP optical 1 console port |
Power Supply | |
| Power Consumption | ≤45W |
| Dimensions (Width x Depth x Height) | 440mm×44mm×260mm |
| Weight (Full-Loaded) | ≤4.5kg |
| Working temperature: -10°C～55°C Storage temperature: -40°C～70°C |
PON Features | IEEE 802.3ah EPON China Telecom/Unicom EPON Maximum 20 Km PON transmission distance Each PON port supports the max 1:64 splitting ratio Uplink and downlink triple churning encrypted function with 128Bits Standard OAM and extended OAM ONU batch software upgrade, fixed time upgrade, real time upgrade |
MAC | MAC Black Hole Port MAC Limit 16K MAC address |
VLAN | 4K VLAN entries Port-based/MAC-based/protocol/IP subnet-based QinQ and flexible QinQ (StackedVLAN) VLAN Swap and VLAN Remark PVLAN to realize port isolation and saving public-vlan resources |
Spanning Tree | STP/RSTP Remote loop detecting |
Port | Bi-directional bandwidth control for onu Static link aggregation and LACP(Link Aggregation Control Protocol) Port mirroring |
Device Security | Anti-DOS attack(such as ARP, Synflood, Smurf, ICMP attack), ARP SSHv2 Secure Shell Security IP login through Telnet Hierarchical management and password protection of users |
Network Security | User-based MAC and ARP traffic examination Restrict ARP traffic of each user and force-out user with abnormal ARP traffic Dynamic ARP table-based binding IP+VLAN+MAC+Port binding L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet |
ACL | Standard and extended ACL Time Range ACL Flow classification and flow definition based on source/destination MAC address, VLAN, 802.1p, ToS, DiffServ, source/destination IP(IPv4) address, TCP/UDP port number, protocol type, etc packet filtration of L2～L7 deep to 80 bytes of IP packet head |
QoS | Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and Priority remark to port or self-defined flow and provide 802.1P, DSCP priority and Remark Packet mirror and redirection of interface and self-defined flow Super queue scheduler based on port or self-defined flow. Each port flow supports 8 priority queues and scheduler of SP, WRR and SP+WRR. Congestion avoid mechanism, including Tail-Drop and WRED |
IPv4 | ARP Proxy DHCPRelay DHCP Server Static Routing OSPFv2 |
Multicast | IGMPv1/v2/v3 IGMPv1/v2/v3 Snooping IGMP Fast leave IGMP Proxy |
| Loop Protection | Loop back-detection |
| Link Protection | RSTP LACP |
| Device Protection | 1+1 power hot backup |
| Port real-time, utilization and transmit/receive statistic based on Telnet802.3ah Ethernet OAMRFC 3164 BSD syslog Protocol Ping and Traceroute |
| Device Management | CLI, Console port, Telnet and WEBRMON (Remote Monitoring)1, 2, 3, 9 groups MIB NTPNetwork management <NMS> |
