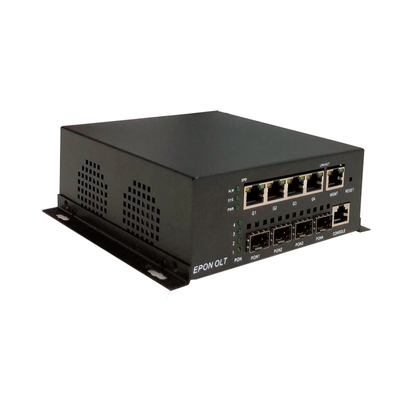

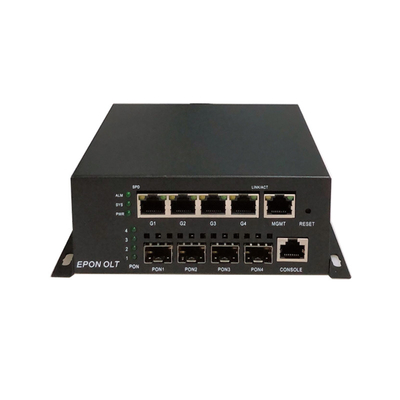

MINI 4 HiOSO EPON OLT Black Metal DC12V 5A 1000M Uplink OLT For FTTH Solutions

MINI 4 HiOSO EPON OLT Black Metal DC12V 5A 1000M Uplink OLT For FTTH Solutions
MINI 4 HiOSO EPON OLT Black Metal DC12V 5A 1000M Uplink OLT For FTTH Solutions MINI 4 HiOSO EPON OLT Black Metal DC12V 5A 1000M Uplink OLT For FTTH Solutions MINI 4 HiOSO EPON OLT Black Metal DC12V 5A 1000M Uplink OLT For FTTH Solutions MINI 4 HiOSO EPON OLT Black Metal DC12V 5A 1000M Uplink OLT For FTTH Solutions MINI 4 HiOSO EPON OLT Black Metal DC12V 5A 1000M Uplink OLT For FTTH Solutions

Large Image :  MINI 4 HiOSO EPON OLT Black Metal DC12V 5A 1000M Uplink OLT For FTTH Solutions

Product Details:
Place of Origin: China, Guang dong
Brand Name: Hioso
Certification: CE, RoHS, CCC
Model Number: HA7004S
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable

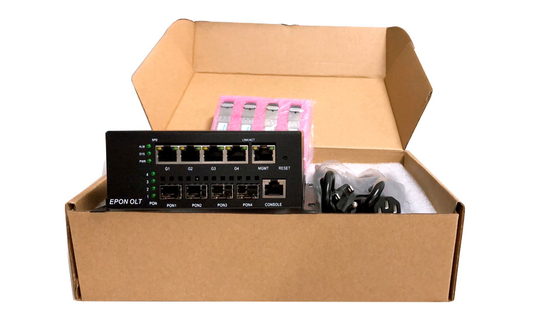

Packaging Details: 38X24X18 CM
Delivery Time: 2-12 work days
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 5000pcs/month

MINI 4 HiOSO EPON OLT Black Metal DC12V 5A 1000M Uplink OLT For FTTH Solutions

Description
Name: EPON OLT Use: FTTH, FTTX
Color: Black Material: Metal
Power Supply: DC12V 5A Package Type: Standard Packing
High Light:

DC12V HiOSO EPON OLT

,

Black Metal HiOSO EPON OLT

,

HA7004S HiOSO EPON OLT

Overview

MINI 4 HiOSO EPON OLT Black Metal DC12V 5A 1000M Uplink OLT For FTTH Solutions 0

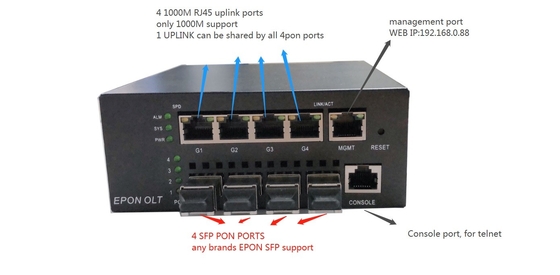

Mini standalone type 4PON OLT,

supplies 4 SFP PON ports,4 Gigabit RJ45 uplink ports . The whole system supports 4-PON, 256 ONUs. It supports 10~20km transmission distance at the base of high bandwidth, and supports full line speed L2/L3 transition capacity.



It adapts to counties, towns and villages fiber network access. It is also adapt to FTTH/FTTB/FTTO projects, to implement fiber to the home, such as IP phone, Ethernet data and IPTV services access.



Feature

  • Supply 4 SFP PON ports, 4 1000M uplink ports
  • one 10/100M RJ45 management port, one console port
  • Each PON port support 1:64 split ratio, total 256 ONUs
  • Distance can reach 20km under 1:32 split ratio, 10km under 1:64
  • Support to work with HA400/HA7200 series ONUs to establish passive network
  • Apply for town,village fiber network and surveillance, apply for FTTX network, to transmit IP phone, data,IPTV and other IP services access



Application

1000M point to multi-point optic passive network

MINI 4 HiOSO EPON OLT Black Metal DC12V 5A 1000M Uplink OLT For FTTH Solutions 1



Technical Specification

Parameter Specifications
Operating wavelength 1310(RX) /1490(TX)
Optical power +0 ~ +7dBm
Receiving sensitivity -27dBm
Max distance 20km
Max splitter ratio 1:64
Capacity 4 PON,Maximum: 256 ONUs
MAC 16K
Uplink port 4 1000M RJ45
PON port 4 SFP PON ports
Control port 1RJ45, RS232, to debug the device
1FE port
MTBF 100,000 hours
EPON traits Support IEEE802.3ah
Support DBA with minimum1Kbps granularity adjustable
Support 1Gbps up link and down link symmetrical bandwidth
Support AES-128 encryption to each Logical Link Identifier
Support powerful OAM function, implement telnet management,maintenance and upgrade
Support auto discovery and auto register of ONU (real-time operation)
Protocols supported Support IEEE802.3, IEEE802.3u, IEEE802.3ab
Support IEEE802.1Q VLAN
Support IEEE 802.1P QoS
Support WEB management, support SNMP, CLI



Working Environment



Parameter Specification
Power supply DC12V 5A
Power consumption 20W
Operating temperature -10—55 C
Storage temperature -40—70 C
Humidity 5%--90% non-condensing
Dimension 55mm(height) ×135mm(width) ×152mm(length)



Datasheet Download: HA7004S MINI 4PON OLT.pdf



Our Service:
HiOSO provides technician team and special telephones to support after-sales service, customer can get answer and training from our technicians, the problem can be solved within 24 hours if there is anything with products. What's more, we provide free-exchange within one year, free-repair within three years and lifelong maintenance.

Our advantage:
Founded in 2002, Hioso Technology CO., Ltd. is the optic communication product manufacturer with 20 years experience. We engaged in the R&D, design, manufacture, sell FTTH and FTTD products all by ourselves and also provide OEM&ODM service for customers. We only provide cost-effective quality products and premium after-sale service.
