1 U Rack Hioso EPON OLT 4 Pon 2 SFP GE 2 Combo Port 20KM Max Distance

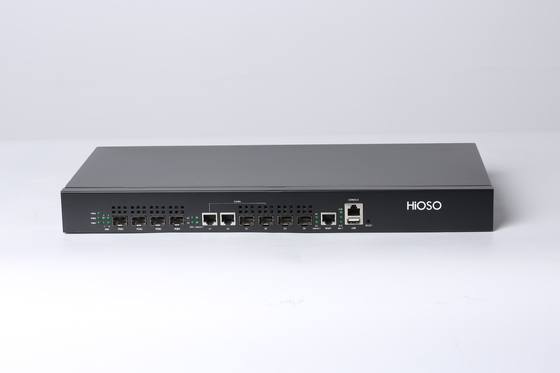

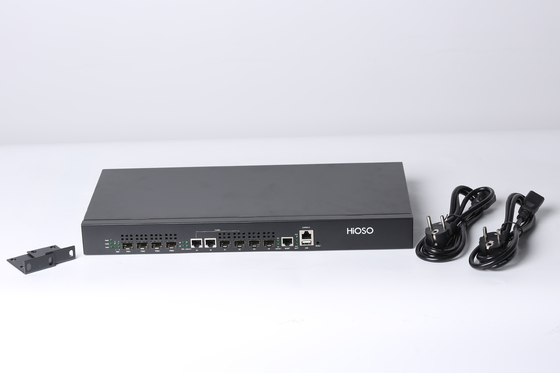

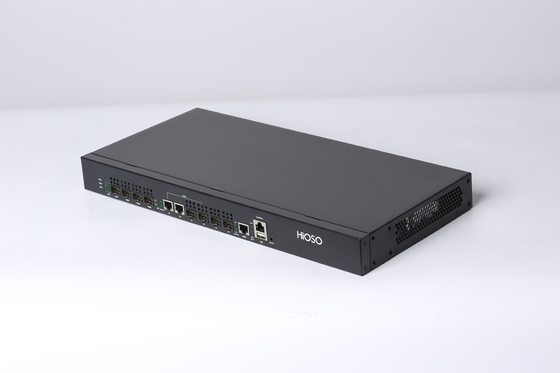

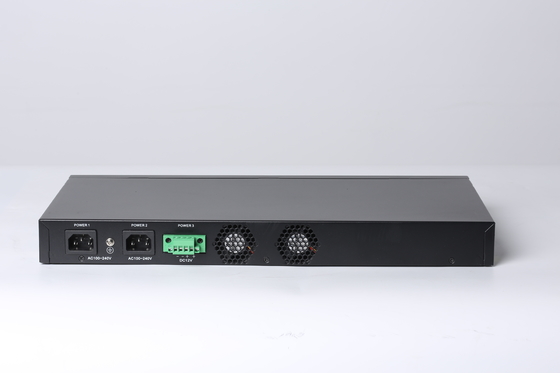

HA7304C 1U Rack 4PON OLT

Overview

HA7304C is a small 1U rack type 4 SFP PON ports OLT.HA7304C works with HA7200 series ONU and ODN, to establish a passive optic network. The whole system supports 4-PON, 256 ONUs.

HA7304C applies to counties, towns and villages fiber network access. It is also applied to FTTH/FTTB/FTTO projects, for IP phone, Ethernet data and IPTV services access. It supports SNMP management. HA7304C meets China Telecom EPON standards.

Feature

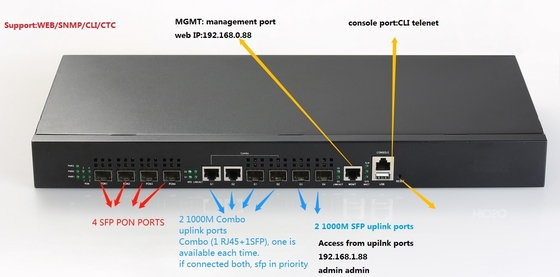

• Supply 4 SFP PON ports, 2 1000M SFP uplink ports, 2 Combo uplink ports
• Each PON port support 1.64 split ratio, total 1256 ONUs access
• Distance can reach 20km under 1:32 split ratio,10km under 1:64
• Support to work with HA400/HA7200 series ONUs to establish passive network
• Support WEB and SNMP, integrate switching function
• 1U rack design, inside fan, better for heat dissipating and reliability operating
• Apply for town,village fiber network and surveillance, apply for FTTX network, to transmit IP phone, data,IPTV and other IP services access

Application

1000M point to multi-point optic passive network
