Product Details:
|
| Product Name: | Epon Olt | Type: | FTTx Solutions |
|---|---|---|---|
| Pon Ports: | 4 Epon Ports | Max Splitting Ratio: | 1:64 |
| Warranty: | 3 Years | SFP: | 4 SFP PON Ports |
| High Light: | CCC Hioso EPON OLT,Px20+++ Modules Hioso EPON OLT,Fttx Solutions 4 Ports OLT |
||

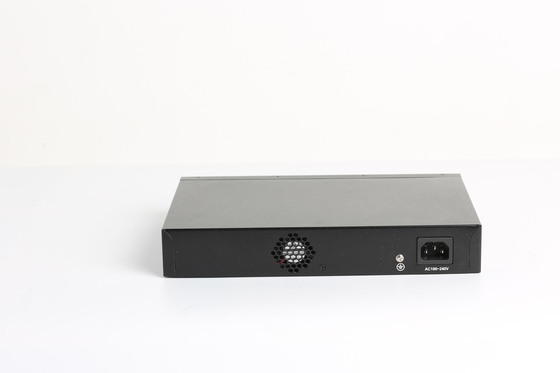

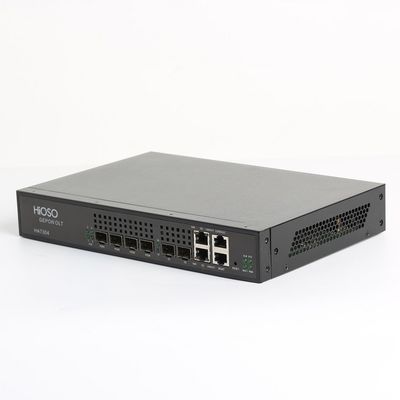

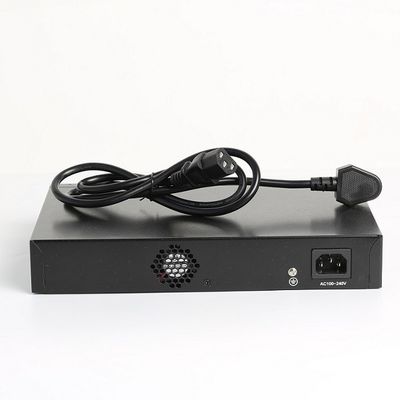

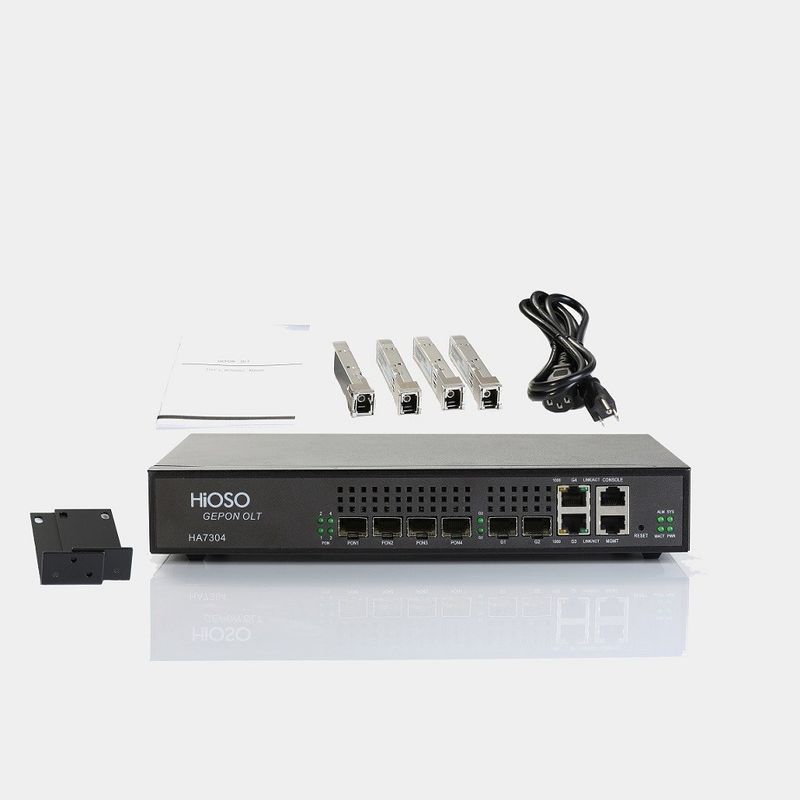

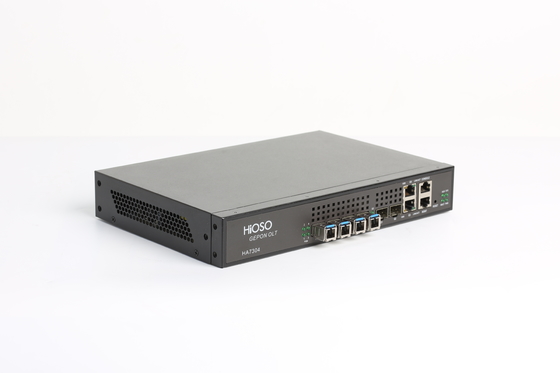

GEPON OLT PIZZA BOX 4PON WEB SNMP CLI Metal Case EPON OLT
Overview
HA7304 is a pizza box GEPON OLT, with 4 SFP PON ports . HA7304 works with different brands,different chipsts ONUs and ODN, to establish a passive optic network. The whole system supports 4-PON, 256 ONUs.
HA7304 applies to counties, towns and villages fiber network access. It is also applied to FTTH/FTTB/FTTO projects, for IP phone, Ethernet data and IPTV services access. It supports WEB management. HA7304 meets China Telecom EPON standards.
|
Parameter
|
Specification
|
|
Operating wavelength
|
1310nm(RX) /1490(TX)nm
|
|
Optical power
|
+2.5 ~ +7dBm
|
|
Receiving sensitivity
|
-30dBm
|
|
Max distance
|
20km
|
|
Max splitter ratio
|
1:64
|
|
Capacity
|
4 PON, maximum 256pcs ONU
|
|
MAC
|
8k
|
|
Uplink port
|
2 1000M SFP ports + 2 1000M TP ports
|
|
PON port
|
4 SFP PON ports
|
|
Control port |
1 10/100/1000M RJ45 port
1 Console(RJ45), to debug the device |
|
MTBF
|
100,000 hours
|
|
EPON traits |
Support IEEE802.3ah
|
|
Support DBA with minimum1Kbps granularity adjustable
|
|
|
Support 1Gbps up link and down link symmetrical bandwidth
|
|
|
Support AES-128 encryption to each Logical Link Identifier
|
|
|
Support powerful OAM function, implement telnet management, maintenance and upgrade
|
|
|
Support auto discovery and auto register of ONU (real-time operation)
|
|
|
Protocols supported |
Support IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3z
|
|
Support IEEE802.1Q VLAN,IEEE802.1d Spanning Tree
|
|
|
Support IEEE 802.1P QoS,IEEE802.3X Flow Control
|
|
|
Support IEEE802.3ad Trunk,IEEE802.1W RSTP
|
|
|
Network management |
Support GUI management based on SNMP
|
|
Support WEB and Telnet GUI management based on CLI
|
|
|
Other functions |
Support 1GMPv1/v2 protocol report, query and leave message mouse
|
|
Support ONU remote configure and upgrade
|
|
|
Support real-time alarm detection, accurate fault location
|
|
|
Support the alarm information sent to the mailbox, support SMS alarm
|
