Product Details:
|
| Name: | Epon Olt | Warranty: | 3 Years |
|---|---|---|---|

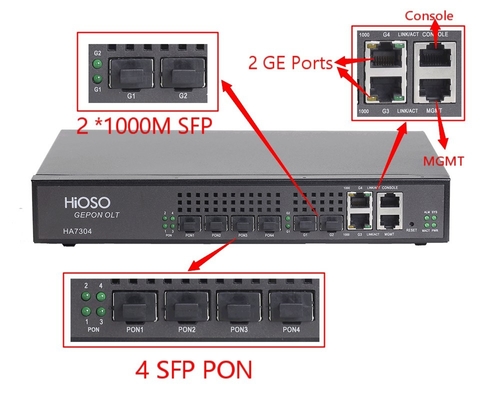

| Capacity: | 4 PON, Maximum 256pcs ONU | Uplink Port: | 2 SFP Ports + 2 TP Ports |
| PON Port: | 4 SFP PON Ports | Control Port: | 1 10/100/1000M RJ45 Port 1 Console(RJ45), To Debug The Device 1 USB Port |
| High Light: | FTTH Hioso EPON OLT HA7304,FTTX network Hioso EPON OLT HA7304,HA7304 4 PON EPON OLT |
||
|
Parameter
|
Specification
|
|
Operating wavelength
|
1310(RX) /1490(TX)
|
|
Optical power
|
+2.5 ~ +7dBm
|
|
Receiving sensitivity
|
-30dBm
|
|
Max distance
|
20km
|
|
Max splitter ratio
|
1:64
|
|
Capacity
|
4 PON, maximum 256pcs ONU
|
|
MAC
|
8k
|
|
Uplink port
|
2 SFP ports + 2 TP ports
|
|
PON port
|
4 SFP PON ports
|
|
Control port
|
1 10/100/1000M RJ45 port
1 Console(RJ45), to debug the device 1 USB port |
|
MTBF
|
100,000 hours
|
|
|
Support IEEE802.3ah
|
|
Support DBA with minimum1Kbps granularity adjustable
|
|
|
Support 1Gbps up link and down link symmetrical bandwidth
|
|
|
Support AES-128 encryption to each Logical Link Identifier
|
|
|
Support powerful OAM function, implement telnet management, maintenance and upgrade
|
|
|
Support auto discovery and auto register of ONU (real-time operation)
|
|
|
|
Support IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3z
|
|
Support IEEE802.1Q VLAN,IEEE802.1d Spanning Tree
|
|
|
Support IEEE 802.1P QoS,IEEE802.3X Flow Control
|
|
|
Support IEEE802.3ad Trunk,IEEE802.1W RSTP
|
|
|
|
Support GUI management based on SNMP
|
|
Support WEB and Telnet GUI management based on CLI
|
|
|
|
Support 1GMPv1/v2 protocol report, query and leave message mouse
|
|
Support ONU remote configure and upgrade
|
|
|
Support real-time alarm detection, accurate fault location
|
|
|
Support the alarm information sent to the mailbox, support SMS alarm
|
