Product Details:
|
| Product Name: | Product Name | Distance: | 20km |
|---|---|---|---|
| Color: | Black | Mac Address: | 8K |
| Pon Port: | 2 PON Ports | Type: | FTTx Solutions |
| High Light: | 2 Pon FTTH OLT,HiOSO FTTH OLT,2 Pon FTTH ONU |
||
↵
Epon Olt Mini 2 Pon Ftth Olt Compatible With Fttx Onu Fiber Optic Equipment
|
Technical Specification
|
|
|
Parameter
|
Specifications
|
|
Operating wavelength
|
1310(RX)/1490(TX)
|
|
Optical power
|
+0 ~ +7dBm
|
|
Receiving sensitivity
|
-27dBm
|
|
Max distance
|
20km
|
|
Max splitter ratio
|
1:32
|
|
Capacity
|
2 PON, standard: 64 ONUs maximum:128 ONUs
|
|
MAC
|
8K
|
|
Uplink port
|
2 10/100/1000 Ethernet RJ45 ports / 2 Gigabit SFP ports optional
|
|
PON port
|
2 SC fiber ports
|
|
Control port
|
RJ45 console port, to debug the device
|
|
MTBF
|
100,000 hours
|
|
|
Support IEEE802.3ah
|
|
Support DBA with minimum1Kbps granularity adjustable
|
|
|
Support 1Gbps up link and down link symmetrical bandwidth
|
|
|
Support AES-128 encryption to each Logical Link Identifier
|
|
|
Support powerful OAM function, implement telnet management, maintenance and upgrade
|
|
|
Support auto discovery and auto register of ONU (real-time operation)
|
|
|
|
Support IEEE802.3, IEEE802.3u, IEEE802.3ab
|
|
Support IEEE802.1Q VLAN
|
|
|
Support IEEE 802.1P QoS
|
|
|
|
CLI and GUI, SNMP, WEB
|
|
Support DHCP Snooping
|
|
|
Support Ipv4 address learning based at DHCP Snooping
|
|
|
Support ARP Snooping, QoS etc
|
|
|
|
|
|
Working Environment
|
|
|
Power supply
|
AC220V
|
|
Power consumption
|
11W
|
|
Operating temperature
|
-10～55℃
|
|
Storage temperature
|
-40～70℃
|
|
Humidity
|
5%～90% non-condensing
|
|
Dimension
|
276mm(length) ×200mm(width) ×44mm(height)
|

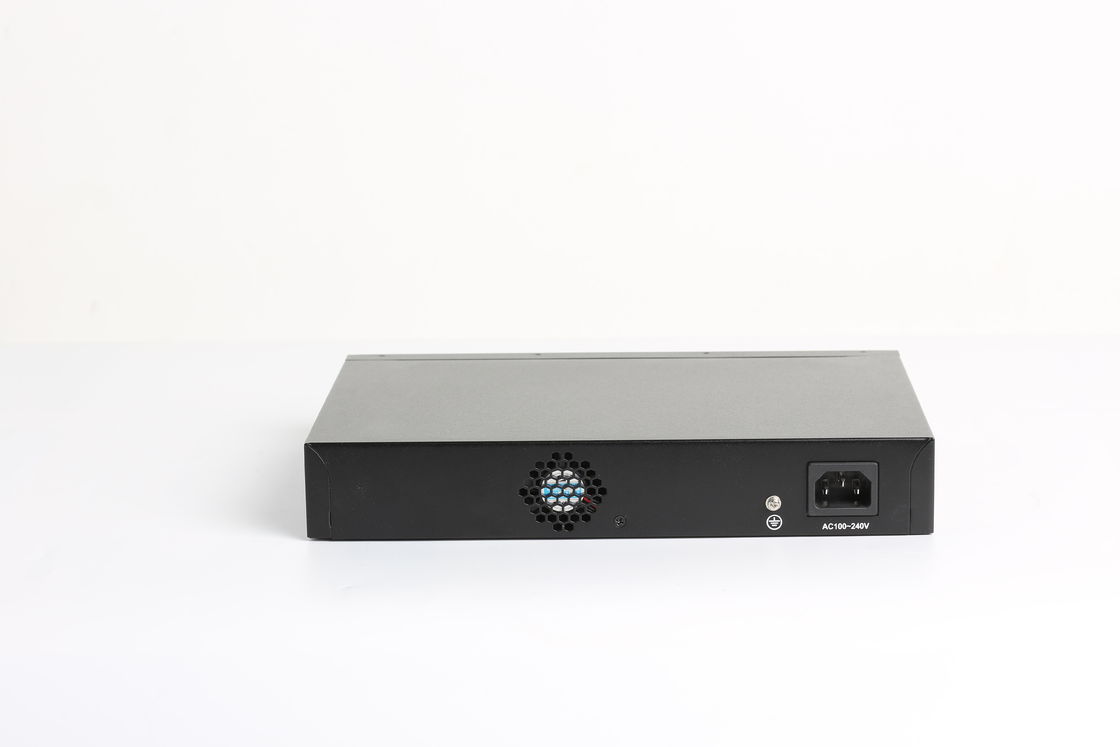

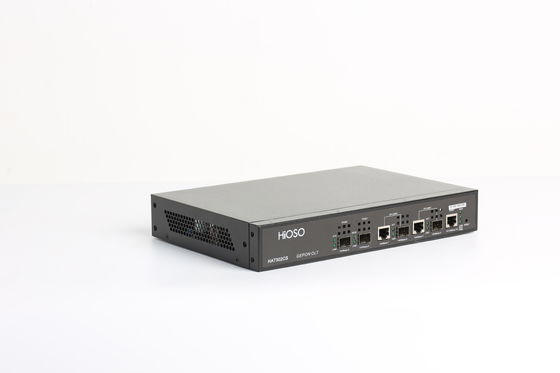

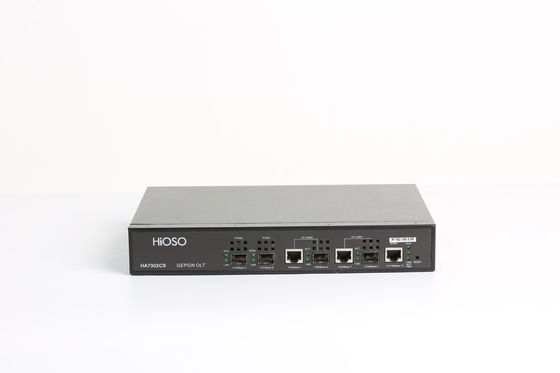

Details Image
Application
Company
HiOSO Technology Co., Ltd. was founded in 2002, being dedicated to the research, production and sale of optical communication network products based on FTTH and FTTD.To make our products better, we have experienced and professional talents. Our main products include EPON systems, fiber optic media converters, CWDM system equipment, digital video optical transceivers, converter racks, single/multi-mode converters, PDH and fiber modems. Since the launch of our products in domestic market and international market, we have won a good reputation for our high quality products and sincere services. Our products are widely applied to network systems of Telecom, Radio and Television, Public Security and Bank industries
