Product Details:
|
Type: | 4PON EPON OLT | PON Ports: | 4 |
---|---|---|---|
Uplink: | 4 1000M SFP | Management Port: | 1 NMS For Web, 1 For Console |
Power Consumption: | ≤40W | Weight (Full-Loaded): | 4.6kg |
Support: | Web Snmp Cli | ||
High Light: | WEB SNMP CLI FTTH OLT,AC220V FTTH OLT,4PON olt v solution epon 4 pon |

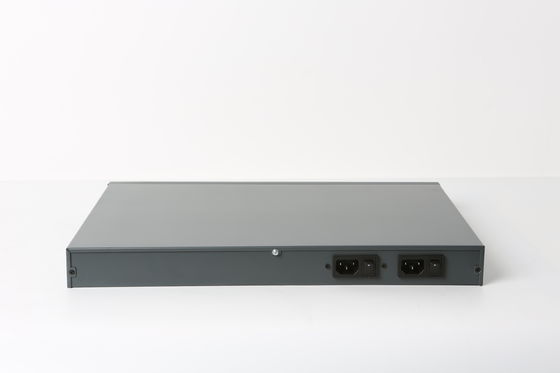

EPON OLT 1U RACK 4PON OLT GIGA UPLINK WEB SNMP CLI DUAL POWER AC220V Compatible with other brands ONUs
Overview

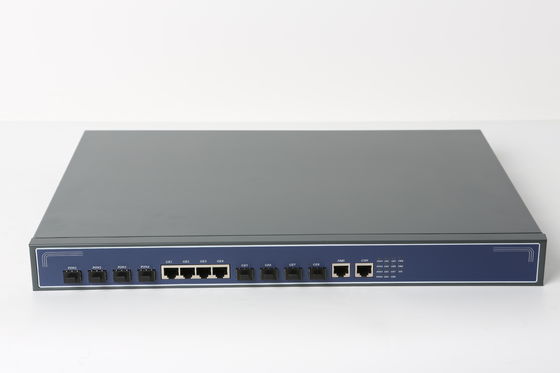

HA7304CF is a EPON OLT with 4PON ports. It supplies 4 PON SFP ports, 4 1000M RJ45 uplink ports and 41000M SFP uplink ports.
HA7304CF works with other types EPON XPON ONUs which support CTC stanadard. The whole system supports 4-PON, 256 ONUs.
HA7304CF applies to counties, towns and villages fiber network access. It is also applied to FTTH/FTTB/FTTO projects, for IP phone, Ethernet data and IPTV services access.
The product is particularly suitable for residential broadband fiber access (FTTx), telephone and television "triple play", the power consumption information collection, video surveillance, networking, private network applications and other applications.
Feature
Technical Specification
Parameter | Specification |
EPON Standard | Comply with IEEE802.3ah,CTC 2.0,2.1 and 3.0 standard;Support IEEE 802.1d (STP), 802.1w (RSTP) and MSTP Spanning Tree Protocol,Support 802.1p priority queue scheduling;Support NTP protocol,Support IEEE 802.3x full-duplex flow control;Support IEEE 802.3x flow control; |
Interfaces |
4 SFP PON ports; 4 1000M RJ45 uplink ports; 2 1000M SFP uplink ports; 2 10G SFP+ uplink ports |
Security | Support PON line AES and triple churing encryption;Support ONU MAC address binding and filtering; |
VLAN |
Support 4095 VLAN additions, transparent transmission, conversion and deletion;Support VLAN Stacking (QinQ) |
MAC address learning | Support 32K MAC addresses;Hardware-based wire-speed MAC address learning;Based on port, VLAN, link aggregation MAC restrictions; |
Multicast | Support IGMP Snooping and IGMP Proxy, support CTC controllable multicast;Support IGMP v1/v2 and v3 |
QoS | Support SP, WRR or SP + WRR scheduling algorithm; |
Access Control Lists (ACL) |
According to the destination IP, source IP, destination MAC, source MAC, destination protocol port number, source protocol port number, SVLAN, DSCP, TOS, Ethernet frame type, IP precedence, IP packets carried protocol type ACL rules set; |
Support the use of the ACL rules for packet filtering; | |
Support Cos ACL rule using the above settings, IP priority setting, mirroring, speed limit and redirect the application; | |
Management P | Provide 10/100Base-T RJ45 out-band network management port |
It can manage the in-band network through any GE uplink port Provide local configuration port |
|
Provide 1 CONSOLE port | |
Data exchange | 3 layer Ethernet switching, switching capacity 128Gbps, to ensure non-blocking switching |
Power Supply | 220VAC AC: 100V~240V,50/60Hz DC:-36V~-72V |
Working Temperature | 0~55℃ |
Dimension | 300.0mm(L)* 440.0mm(W)* 44.45mm(H) |
Weight | 4.6 Kg |
