Product Details:
|
| Product Name: | EPON OLT | Distance: | 20KM |
|---|---|---|---|
| Material: | Metal Casing | Customization: | Support |
| Application: | FTTX Solutions | Port: | 4 SFP G-EPON + 2 SFP + 2Combo Port |
| High Light: | 4 Port FTTH OLT,FTTH OLT Supply Huawei Zte ONU,4 Port fttx solutions |
||

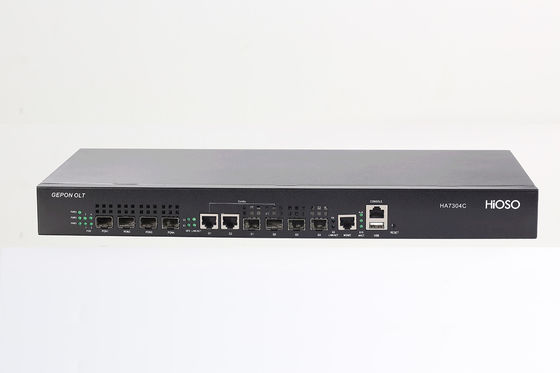

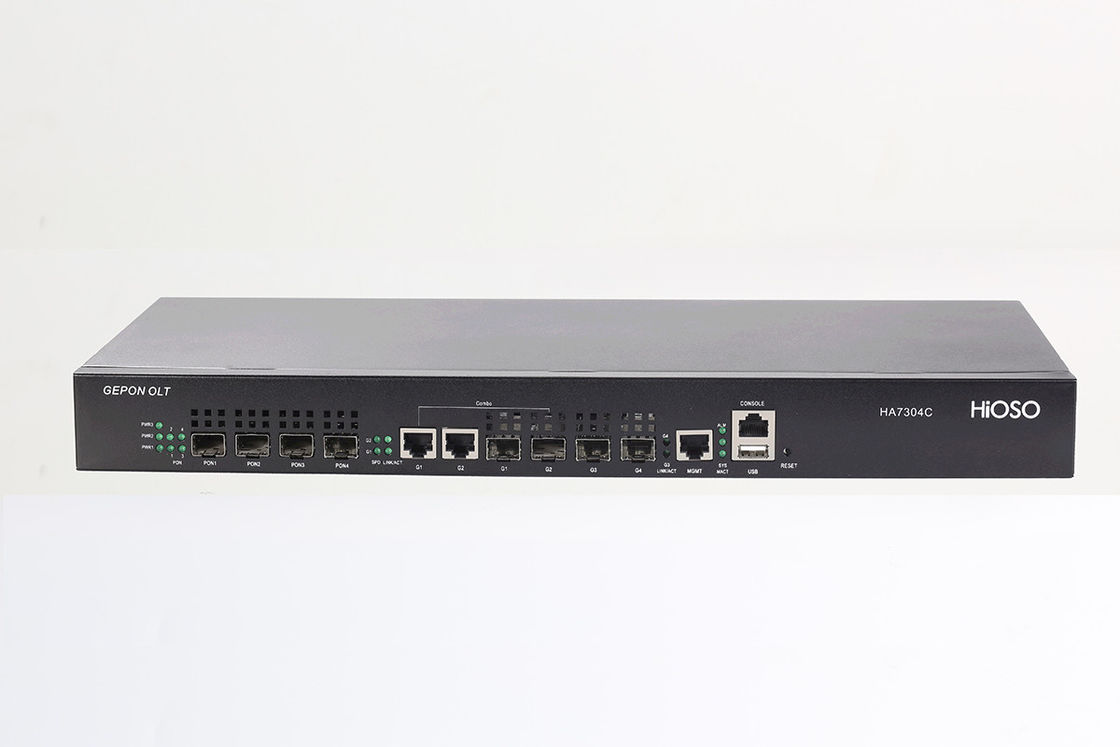

Epon Olt 1U Rack 4 Port Ftth Olt Supply Huawei Zte Onu Dual Power Supply
|
Parameter
|
Specification
|
|
Operating wavelength
|
1310(RX) /1490(TX)
|
|
Optical power
|
+2.5 ~ +7dBm
|
|
Receiving sensitivity
|
-30dBm
|
|
Max distance
|
20km
|
|
Max splitter ratio
|
1:64
|
|
Capacity
|
4 PON, maximum 256pcs ONU
|
|
MAC
|
8k
|
|
Uplink port
|
2 SFP ports + 2Combo ports
|
|
PON port
|
4 SFP 1000M fiber ports
|
|
Control port
|
1 10/100/1000M RJ45 port
1 Console(RJ45), to debug the device 1 USB port |
|
MTBF
|
100,000 hours
|
|
|
Support IEEE802.3ah
|
|
Support DBA with minimum1Kbps granularity adjustable
|
|
|
Support 1Gbps up link and down link symmetrical bandwidth
|
|
|
Support AES-128 encryption to each Logical Link Identifier
|
|
|
Support powerful OAM function, implement telnet management, maintenance and upgrade
|
|
|
Support auto discovery and auto register of ONU (real-time operation)
|
|
|
Protocols supported
|
Support IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3z
|
|
Support IEEE802.1Q VLAN,IEEE802.1d Spanning Tree
|
|
|
Support IEEE 802.1P QoS,IEEE802.3X Flow Control
|
|
|
Support IEEE802.3ad Trunk,IEEE802.1W RSTP
|
|
|
|
Support GUI management based on SNMP
|
|
Support WEB and Telnet GUI management based on CLI
|
|
|
Other functions
|
Support 1GMPv1/v2 protocol report, query and leave message mouse
|
|
Support DHCP Snooping
|
|
|
Support Ipv4 address learning based at DHCP Snooping
|
|
|
Support ARP Snooping, QoS etc
|
Working Environment
|
Parameter
|
Specification
|
|||
|
Power
|

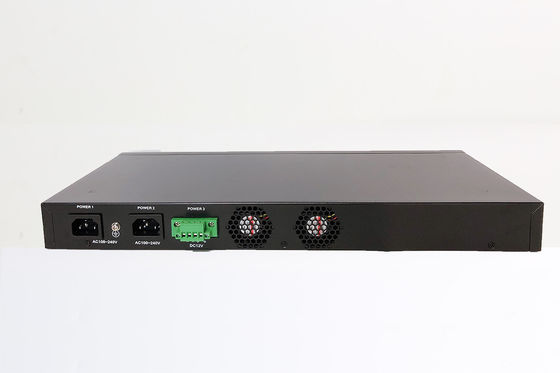

AC100~240V 50/60HZ,DC12V/5A redundant three power supply
|
|||
|
Power Consumption
|
25W
|
|||
|
Operating temperature
|
-10—55 C
|
|||
|
Storage temperature
|
-40—70 C
|
|||
|
Humidity
|
5%--90% non-condensing
|
|||
|
Dimension
|
440mm(length) * 210mm(width) * 44mm(height)
|
|||
