Product Details:
|
| Product Name: | Gpon Onu | Warranty: | 3 Years |
|---|---|---|---|
| Receiving sensitivity: | -27dBm | Cache space: | 1.25MB |
| Wavelength: | Tx 1310nm/Rx1490nm | Application: | FTTH FTTB FTTX Network |
| High Light: | 8 10/100M Ethernet wifi Ports GPON ONU,Tx 1310nm wifi GPON ONU,8 10/100M Ethernet Ports wifi onu |
||

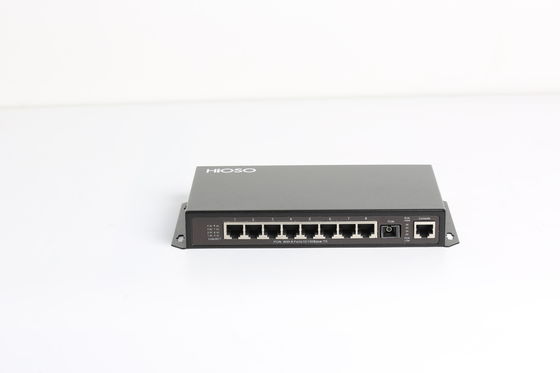

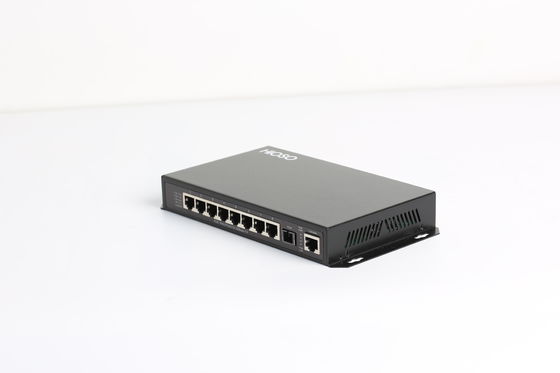

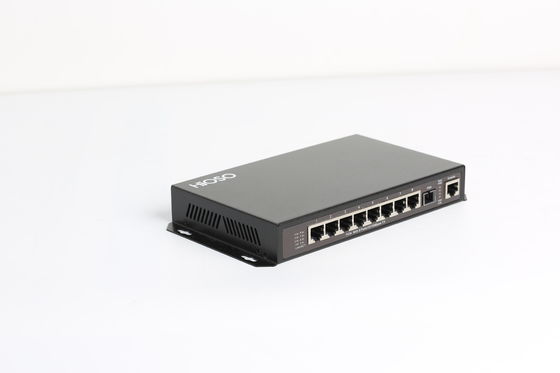

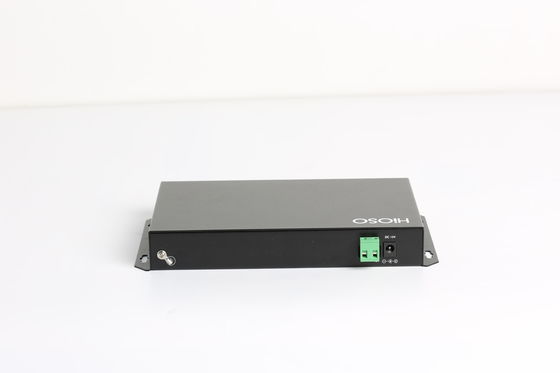

8 Ports Industrial Gpon Onu 8 10 / 100M Ethernet Ports Work With GPON OLT
Overview
HA7408H GPON/XPON ONT is designed for fulfilling FTTH ultra-broadband access request of home and SOHO users. HA7408H supplies eight 10/100M Ethernet ports. It is based on the stable and mature GPON/XPON technology, which has high performance/price ratio, and the technology of layer 2 as well.It supports both GPON and EPON OLT. It is highly reliable and easy to maintain, with guaranteed QoS, and fully
compliant to ITU-T G.984 GPON standards.
Feature
Support ITU-T G984 Standard
Auto discovery EPON/GPON OLT
Supports 32 TCONT,256 gemports
Support ONU auto-discovery/Link detection/remote upgrade of software
Integrated remote configuration and maintenance function.
Functions like transceiver diagnostic monitoring, transmitter disable, etc
Fully compatibility with GPON OLT with different chipsets.
Support port monitoring, port mirroring, port rate limiting etc.
Support auto polarity detection of Ethernet ports (AUTO MDIX)
Support VLAN division and user separation to avoid broadcast storm
Support broadcasting storm resistance function
| Parameter | Specification |
| Main chip | ZTE |
| Uplink PON interface |
1 GPON interface, SC single-mode/single-fibre, uplink 1 .25Gbps, downlink 2.5Gbps |
| Downlink LAN interface |
8* 10/100Mbps Full Duplex/Half Duplex, RJ45 connector |
| Wavelength | Tx 1310nm, Rx 1490nm |
| Optical power | 0~+4dBm |
| Receiving sensitivity | -27dBm |
| Max transmission distance | 20 km |
| Cache space | 1.25MB |
| MTBF | 100,000 hours |
|
GPON trait |
ITU-T G984 Standard Supports 32 TCONT,256 gemports Support the 984 standard AES128 encryption function Support SBA and DBA |
| Parameter | Specification |
| Power | DC12V/1A (outside power) |
| Power consumption | <12W |
| Operating temperature | -10—55 ℃ wide temperature range-T:-40~75℃ |
| Storage temperature | -40—85 ℃ |
| Humidity | 5%～90% non-condensing |
| Dimension | 30mm*219mm*119mm |
| Net weight | 0.6Kg |
