Product Details:
|
| Name: | EPON OLT | Management: | WEB/SNMP/CLI |
|---|---|---|---|
| Material: | Metal | Colour: | Black |
| Port: | 2 SC/PC G-EPON +2 Combo | Type: | Pizza Box Type, Support 1U |
| High Light: | WEB SNMP CLI FTTH OLT,CCC approval FTTH OLT,WEB SNMP CLI EPON OLT 2PON |
||
Epon Olt 2 Port Supply Huawei Zte Onu Mini 2pon Ftth Olt Fiber Optic Equipment
Overview

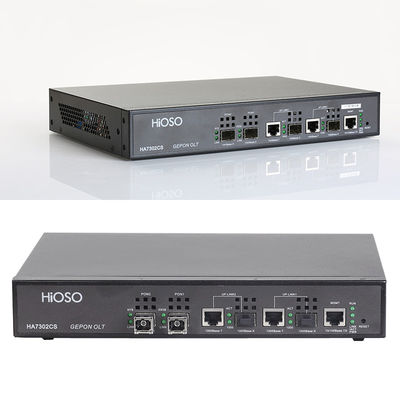

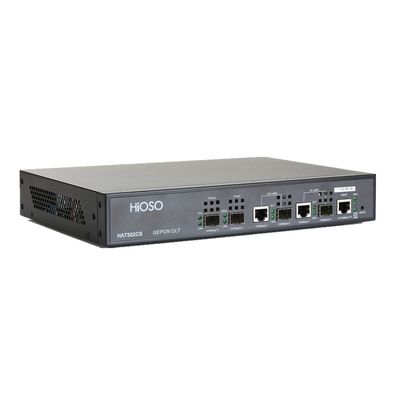

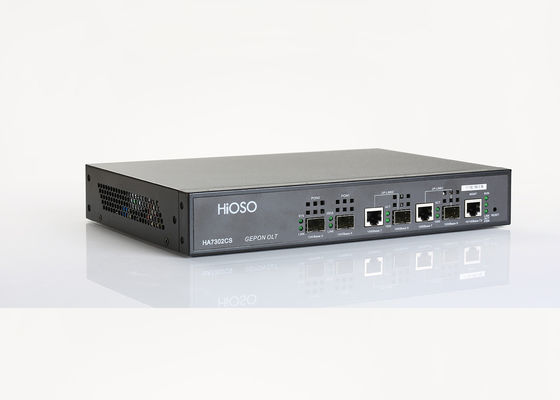

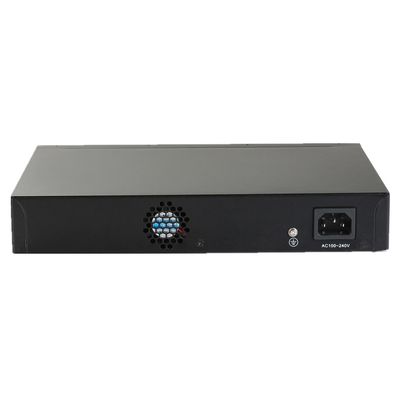

HA7302CS is a standalone 2-PON OLT,working with HA7200 series ONU and ODN, to establish a passive optic network. It supports 2-PON, 64 ONUs access. It supports 10～20km transmission distance at the base of high bandwidth, full line speed L2/L3 transition capacity. It supports SNMP management
Technical Specification
| Parameter | Specifications |
| Operating wavelength | 1310(RX)/1490(TX) |
| Optical power | +0 ~ +7dBm |
| Receiving sensitivity | -27dBm |
| Max distance | 20km |
| Max splitter ratio | 1:32 |
| Capacity | 2 PON, standard: 64 ONUs maximum:128 ONUs |
| MAC | 8K |
| Uplink port | 2 10/100/1000 Ethernet RJ45 ports / 2 Gigabit SFP ports optional |
| Protocols supported | Support IEEE802.3, IEEE802.3u, IEEE802.3ab |
| Support IEEE802.1Q VLAN | |
| Support IEEE 802.1P QoS | |
| Management | CLI and GUI, SNMP, WEB |
| Support DHCP Snooping | |
| Support Ipv4 address learning based at DHCP Snooping | |
| Support ARP Snooping, QoS etc |
