Product Details:
|
| Product Name: | EPON OLT | Color: | Black |
|---|---|---|---|
| Material: | Metal | Selling Units: | Single Item |
| High Light: | 1000M RJ45 port olt epon 4 pon,8k MAC olt epon 4 pon,1000M RJ45 port Fiber Optic Equipment |
||

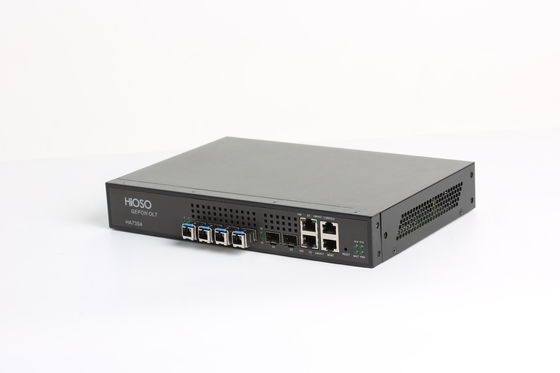

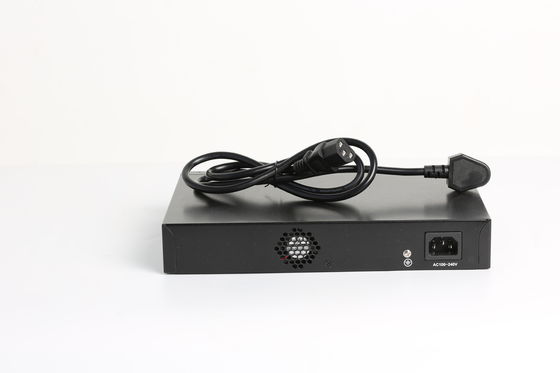

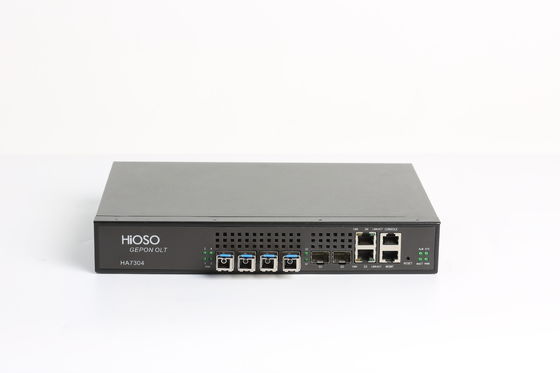

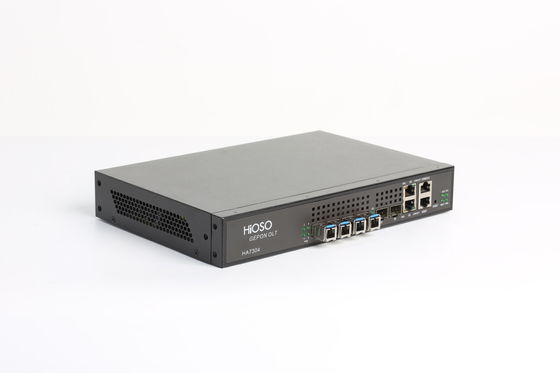

Fiber Optic Equipment Olt Epon 4pon Ftth Olt 1000M Compatible With Ftth Solutions
Overview
HA7304 applies to counties, towns and villages fiber network access. It is also applied to FTTH/FTTB/FTTO projects, for IP phone, Ethernet data and IPTV services access. It supports WEB management. HA7304 meets China Telecom EPON standards.
Technical Specification
| Parameter | Specification |
| Operating wavelength | 1310(RX) /1490(TX) |
| Optical power | +2.5 ~ +7dBm |
| Receiving sensitivity | -30dBm |
| Max distance | 20km |
| Max splitter ratio | 1:64 |
| Capacity | 4 PON, maximum 256pcs ONU |
| MAC | 8k |
| Uplink port | 2 SFP ports + 2 TP ports |
| PON port | 4 SFP PON ports |
| Control port |
1 10/100/1000M RJ45 port 1 Console(RJ45), to debug the device 1 USB port |
FAQ
1.Q:Do you have your own factory?
A:Yes, we are professional manufacturer mainly in power inverter for many years. Our facory is located in Jiaxing, Zhejiang, China.
2.Q:What kind of certification you have?
A:ISO9001,CE,ROHS and so on.
Our products could pass different labor testing according to different countries' requirements.
3.Q:Where we can use the system?
A:You can use the system for home, for power station, for lighting system and so on, wnere the grid power is expensive.
