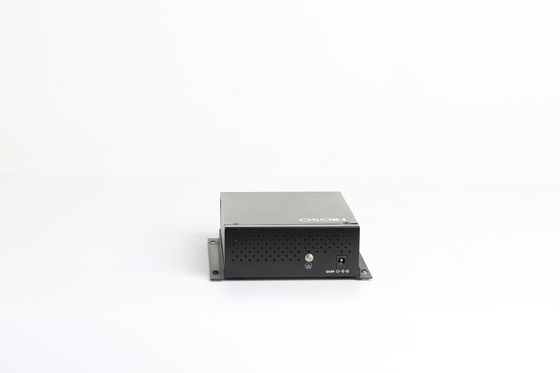

Black Metal DC12V 5A 1000M Uplink FTTH OLT For Ftth Solutions

Ftth Olt 2 Port Mini Size Epon Olt 1000M Uplink Apply For Ftth Solutions

HA7002CSB OLT is a mini type OLT, with compact size design. It offers 2 SFP PON ports,each PON port supports 1:32 optic distribution, maximum 64 ONUs. It applies to the China Telecom EPON standards. It works with HA400 and HA7200 series ONUs and passive optical splitter, to establish a passive optic network.

Each PON port supports 10～20km transmission distance at the base of high bandwidth, and supplies full line speed L2/L3 transition capacity.It is adapt to small fiber access network, such as towns, villages, which don’t have large quantity users.

Feature

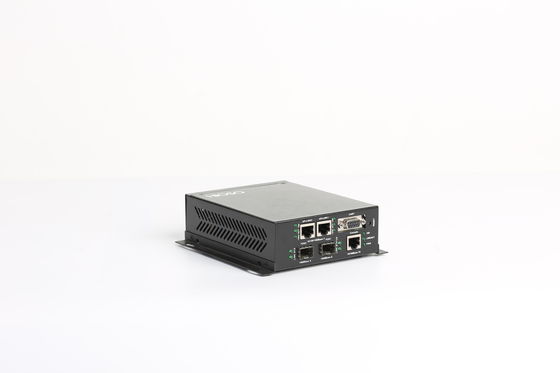

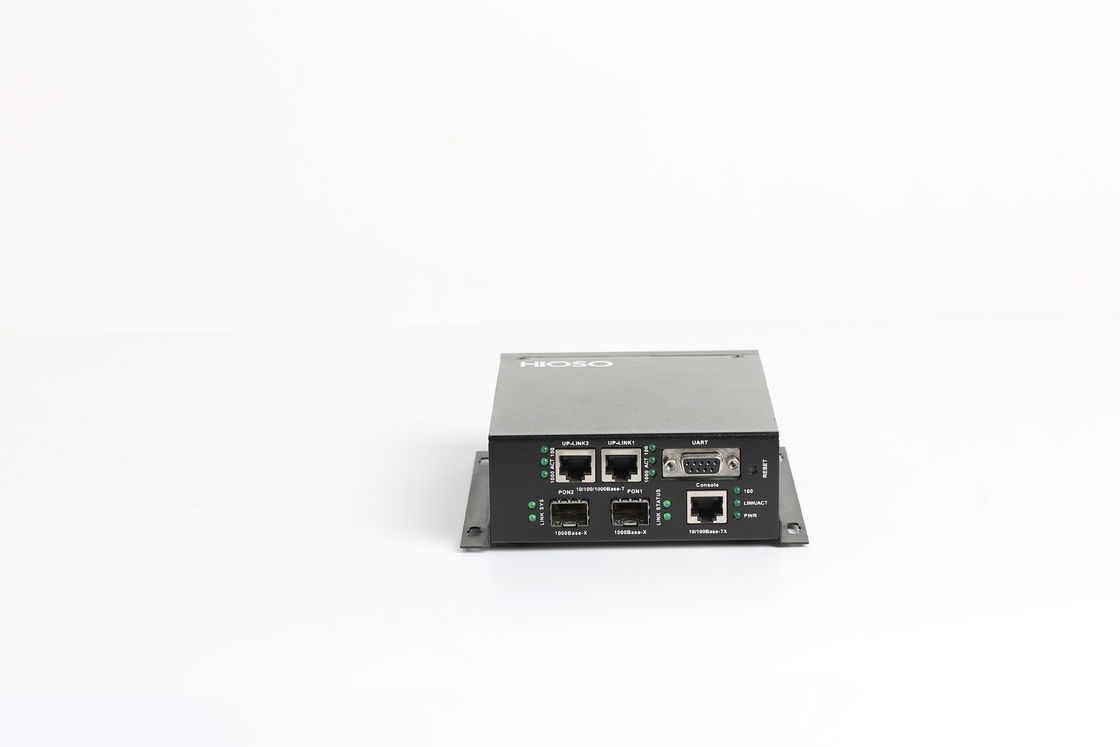

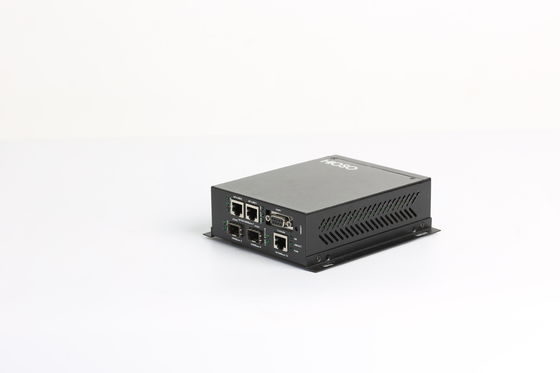

• Supply 2 SFP PON ports, 2 10/100/1000M uplink ports, one 10/100M RJ45 management port, one console port
• Each PON port support 1.32 split ratio, total 64 ONUs access,maximum 128
• Support to work withHA400/HA7200 series ONUs to establish passive network
• 1U rack design, inside fan,better for heat dissipating and reliability operating
• Apply for town,village fiber network and surveillance, apply for FTTX network, to transmit IP phone, data,IPTV and other IP services access

Application

1000M point to multi-point optic passive network

Technical Specification

Working Environment
